BAOFENG UV8 With Double PTT Design fm Radio Baofeng Two Way Radio

BAOFENG UV8 With Double PTT Design fm Radio Baofeng Two Way Radio thumbnail-1
BAOFENG UV8 With Double PTT Design fm Radio Baofeng Two Way Radio thumbnail-2
BAOFENG UV8 With Double PTT Design fm Radio Baofeng Two Way Radio thumbnail-3
BAOFENG UV8 With Double PTT Design fm Radio Baofeng Two Way Radio thumbnail-4
BAOFENG UV8 With Double PTT Design fm Radio Baofeng Two Way Radio thumbnail-5
BAOFENG UV8 With Double PTT Design fm Radio Baofeng Two Way Radio thumbnail-6
BAOFENG UV8 With Double PTT Design fm Radio Baofeng Two Way Radio photo-1
BAOFENG UV8 With Double PTT Design fm Radio Baofeng Two Way Radio photo-2
BAOFENG UV8 With Double PTT Design fm Radio Baofeng Two Way Radio photo-3
BAOFENG UV8 With Double PTT Design fm Radio Baofeng Two Way Radio photo-4
BAOFENG UV8 With Double PTT Design fm Radio Baofeng Two Way Radio photo-5
BAOFENG UV8 With Double PTT Design fm Radio Baofeng Two Way Radio photo-6
US$ 1 - 30 MOQ: 10 Sets
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
baofeng
Model Number:
baofeng uv-8
Contact Supplier Request Quote Chat Now
Quanzhou Kingtone Optics & Electronics Technology Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
XIAMEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name baofeng
Model Number baofeng uv-8
Type Handheld
Dimensions 52 x 35 x 117 mm
Frequency Range UHF 400-470MHz VHF 136-174MH
Storage Channel 128
Talk Range 3-5km



Model

baofeng UV-8

Hot Spots

Dual band/ Dual Watch/ Dual PPT

A/B band independent operation (UV UU VV VU)

128 groups channels storage

136-174MHz & 400-520MHz

Shortcut menu operation mode

Emergency Alarm

Transmitter time-out timer(TOT)

VOX (0~9 grades)

PTT & ANI ID

FM radio (65-108MHz)

Voice COMP

CTCSS/ DCS

Call Tone 1750Hz

Repeater working confirmation

TX power selectable (5W/1W)

Busy channel lockout

LED Flashlight

DTMF Code

Wide/Narrow Band

Yes

25kHz/12.5kHz

Frequency step

Yes

12.5/25KHz

Scanning function

Yes



Monitor function

Yes



Keypad lock function

Yes



Flashlight

Yes



Wire clone function

Yes



Low battery alarm

Yes



Power saving function

Yes



Chinese and English voice prompt

Yes



PC software programmable

Yes



Basic Descriptions

Rated Voltage

7.4V DC

Output power

5W/1W

Battery type

Li-ion battery

Battery capacity

1800mAh

Earpiece / MIC type

2 Pin KENWOOD Type

Antenna

SMA-Female

Working temperature

-20~+50 Degrees Celsius

Antenna Impedance

50 ohm

Weight

230g

Dimension ( L x W x H )

52 x 35 x 117 mm (Not Antenna )

Specification

Frequency stability

± 2.5ppm

Modulation

F3E

Max frequency deviation

<= 5kHz(Wide)
<= 2.5kHz(Narrow)

Emission current

<=1.5A

CTCSS / DCS

0.7 ± 0.1kHz(Wide)
0.4 ± 0.1kHz(Narrow)

Spurious Radiation

<=7.5µW

Intermediation Distortion

<10%

Intermediation sensitivity

8-12mv

Adjacent channel selectivity

<= 65dB(Wide)
<= 60dB(Narrow)

Modulation character

6 dB per fold frequency patch

Sensitivity

-122dbm (12dB SINAD)

Audio Power

1W

Audio Distortion

<= 10%

Blocking

>= 85dB

Spurious rejection

>=65dB

Quick Details

Place of Origin:
Fujian China (Mainland)
 Brand Name:
BAOFENG
 Model Number:
UV-8
Type:
Handheld
 Dimensions:
52 x 35 x 117 mm
 Frequency Range:
UHF 400-470MHz VHF 136-174MHz(dual band)
Storage Channel:
128
 Talk Range:
3-5KM
 Color:
black
Weight:
230g
 Output power:
5W / 1W
 Antenna Impedance:
50Ω
Modulation:
F3E
 Dimension(W x H x D):
52 x 35 x 117 mm
 Frequency Stability:
±2.5ppm
Audio Power:
1W
 Battery capacity:
1800mAh
 Rated Voltage:
7.4V





High quality and best price from baofeng manufature direcetly !

BAOFENG NEW UV-8 with double PTT design fm radio baofeng factory two way radio



Features

Dual band, dual display

A/B band independent operation

128 groups channels storage

Shortcut menu operation mode

VFO & Memory channels scan

Emergency Alarm

Tri-color background light selectable

0~9 grades VOX selectable

PTT & ANI ID

FM radio and 25 stations storage

1750Hz Brust Tone

Time-out Timer

Channel Monitor

Battery Saver

Keypad Lock

Channel Step: 2.5/5/6.25/10/12.5/25KHz

Low Battery Alert

ROGER SET

Emergency Alert

25KHz/12.5KHz Switchable

FM Radio (65.0MHz-108.0MHz)

Large LCD Display

LED Flashlight

Hight /Low RF Power Switchable

Voice companding

50 CTCSS/ 104DCS coder & tone searching

dual standby

PC programmable

Wide/Narrow Band(25kHz/12.5kHz)

Transmitter time-out timer(TOT)

High/Low TX power selectable

Busy channel lock-out(BCLO)



Specifications

Frequency Range



65-108MHz(FM Receive only)

TX & RX:136-174MHZ and 400-480HZ

Channel No.

128

Frequency Stability

±2.5ppm

Antenna

High gain DualBand antenna

Antenna Impedance

50Ω

Operating Voltage

DC 7.4V

Mode of operation

Simple or semi-duplex

Dimension(W x H x D)

100 x 52 x 32 mm

Weight

250g(including battery, antenna)

Antenna :

SMA -Female

Earpiece / mic type :

Kenwood Plug type

Transmitter



Receiver

Output power

4W / 1W (Max 5W)

RF Sensitivity

-122dbm(12db SINAD)

Modulation Mode

16kΦF3E / 11kΦF3E

Audio power

≥0.5W

Maximum deviation

<5kHz(W) / <2.5kHz(N)

Audio Distortion

≤10%

Intermediation distortion

<10%

Intermediation

≤-65dB(Wide) / ≤-60dB(Narrow)

Adjacent Ch. power

≤-65dB(W) / ≤-60dB(N)

Selectivity

≤-65dB(Wide) / ≤-60dB(Narrow)

Pre-emphasis

6dB

Spurious Rejection

≤-65dB

Current

≤1.6A(5W)

Blocking

≥85dBuv/m

Standard Accessories

Optional Accessories



  New Launch 2015 BAOFFENG UV-8 Two-Way Radio  5W Dual Band Mobile Portable Interphone Transceiver



Package Include:

  • 1 x Portable radio
  • 1 x Antenna
  • 1 x Li-ion battery pack (7.4V, 1800mAh)
  • 1 x LI-ion charger (100-240V)
  • 1 x Belt clip
  • 1 x User manual





Package contents:

1 x UV-8 radio
1 x Dual band Antenna
1 x Li-ion battery pack (7.4V, 1800mAh)
1 x LI-ion charger (100-240V) with correct plug for your country
1 x Belt clip
1 x User manual

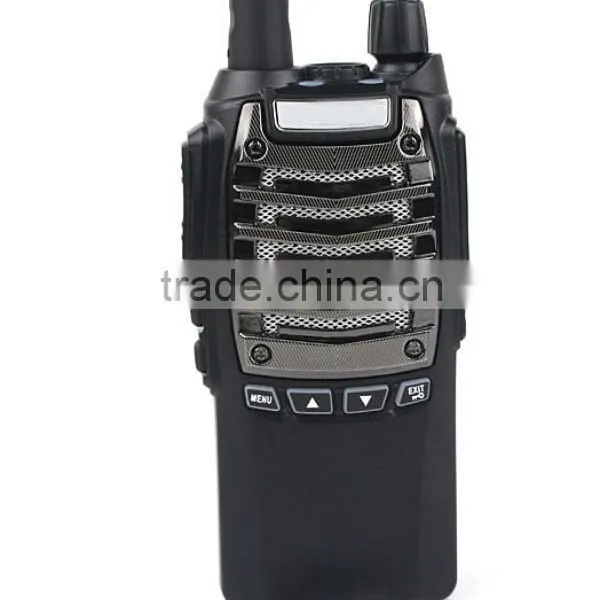

Photos of baofeng uv-8 :



BAOFENG UV8 with double PTT design fm radio baofeng two way radioBAOFENG UV8 with double PTT design fm radio baofeng two way radioBAOFENG UV8 with double PTT design fm radio baofeng two way radioBAOFENG UV8 with double PTT design fm radio baofeng two way radioBAOFENG UV8 with double PTT design fm radio baofeng two way radio
