BAOFENG UV5 RC Two Way Radio Dual Band Walkie Talkies

BAOFENG UV5 RC Two Way Radio Dual Band Walkie Talkies thumbnail-1
BAOFENG UV5 RC Two Way Radio Dual Band Walkie Talkies thumbnail-2
BAOFENG UV5 RC Two Way Radio Dual Band Walkie Talkies thumbnail-3
BAOFENG UV5 RC Two Way Radio Dual Band Walkie Talkies thumbnail-4
BAOFENG UV5 RC Two Way Radio Dual Band Walkie Talkies thumbnail-5
BAOFENG UV5 RC Two Way Radio Dual Band Walkie Talkies thumbnail-6
BAOFENG UV5 RC Two Way Radio Dual Band Walkie Talkies photo-1
BAOFENG UV5 RC Two Way Radio Dual Band Walkie Talkies photo-2
BAOFENG UV5 RC Two Way Radio Dual Band Walkie Talkies photo-3
BAOFENG UV5 RC Two Way Radio Dual Band Walkie Talkies photo-4
BAOFENG UV5 RC Two Way Radio Dual Band Walkie Talkies photo-5
BAOFENG UV5 RC Two Way Radio Dual Band Walkie Talkies photo-6
US$ 1 - 30 MOQ: 10 Sets
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Baofeng
Model Number:
baofeng UV-5RC
Contact Supplier Request Quote Chat Now
Quanzhou Kingtone Optics & Electronics Technology Co., Ltd.
Gold Verified Supplier
6Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
XIAMEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name Baofeng
Model Number baofeng UV-5RC
Type Handheld
Dimensions 58x110x32mm
Frequency Range VHF:136-174mhz & UHF:400-480mhz
Storage Channel 128
Talk Range 5-8KM

Baofeng VHF/UHF Ham Radio UV-5RC ,Dual Band 5W 128ch walkie talkie interphone



Description

1. Frequency Range: 136-174MHz & 400-520MHz

2. Dual Band Display, Dual Frequency, Dual Standby

3. Output power: 5/1W

4. Channels : 128

5. 50 CTCSS / 104 DCS

6. VOX function

7. 1750Hz Tone

8. FM Radio Built-in (65.0MHz-108.0MHz)

9. LED Flashlight

10. Large LCD Display

11. High/Low RF Power Switchable

12. Emergency Alert

13. Low Battery Alert

14. Battery Save

15. Time-out Timer

16. Keypad Lock

17. Monitor Channel

18. Channel Step: 2.5/5/6.25/10/12.5/25KHz



Technology Specification



Hot Spots

Dual band / dual display / dual standby

A/B band independent operation(UV UU VV)

128 groups channels storage

Shortcut menu operation mode

VFO & Memory channels scan

Emergency Alarm

Time-out Timer (TOT)

0~9 grades VOX selectable

PTT & ANI ID

FM radio and 25 stations storage

Voice commanding

50 CTCSS/104 DCS

High/Low TX power selectable

Busy channel lock-out(BCLO)

DTMF function

OFF SET function

Wide/Narrow Band(25kHz/12.5kHz)

Yes



VOX function

Yes



Busy lockout function

Yes



Frequency step

Yes

2.5/5/6.25/10/12.5/25KHz

Scanning function

Yes



Monitor function

Yes



Time-out Timer (TOT) function

Yes



LCD display

Yes



Dual display

Yes



Battery voltage display

Yes



Channel name display editing

Yes



Signal strength indicator

Yes



Keypad lock function

Yes



Built-in Led torch

Yes



FM radio

Yes



Wire clone function

Yes



Emergency alarm function

Yes



Low battery alarm

Yes



Power saving function

Yes



High/Low TX power selectable

Yes

5W/1W

ROGER SET

Yes



Chinese English voice prompt

Yes



PC software programmable

Yes



Rated Voltage

7.4V DC±10%

Output power

≤ 5W

Battery type

Li-ion battery

Battery capacity

1800mAh

Working temperature

-20~+50°C

Antenna Impedance

50Ω

Weight

255g

Dimension(L×W×H)

58×32×110mm(Not Antenna)

Specification

Frequency stability

±2.5ppm

Carier wave tolerance

5ppm

Modulation

16kΦF3E / 11kΦF3E

Max frequency deviation

< 5kHz(Wide)

< 2.5kHz(Narrow)

Modulation character

6 dB per fold frequency patch

Emission current

< 1.6A(5W)

CTCSS / DCS

0.5±0.1kHz(Wide)

0.3±0.1kHz(Narrow)

Sensitivity

< 0.16μV(12dB SINAD)

Silent sensitivity

< 0.2μV

Intermediation Distortion

<10%

Inter modulation

8-12mv

Adjacent channel selectivity( wide/narrow)

<-65dB(Wide) <-60dB(Narrow)

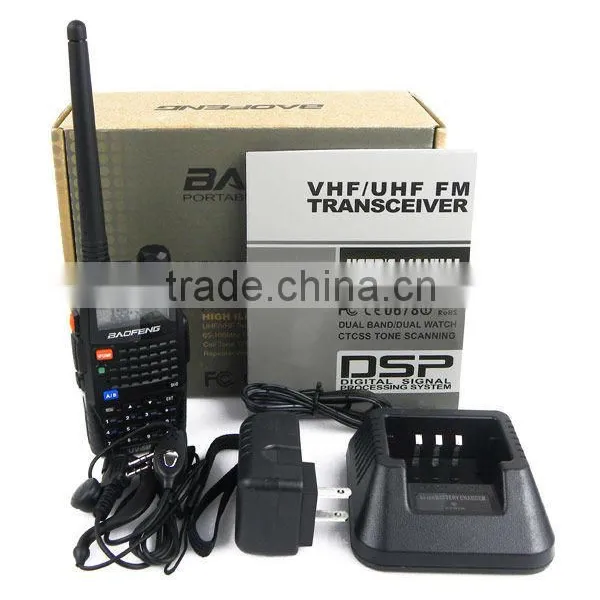

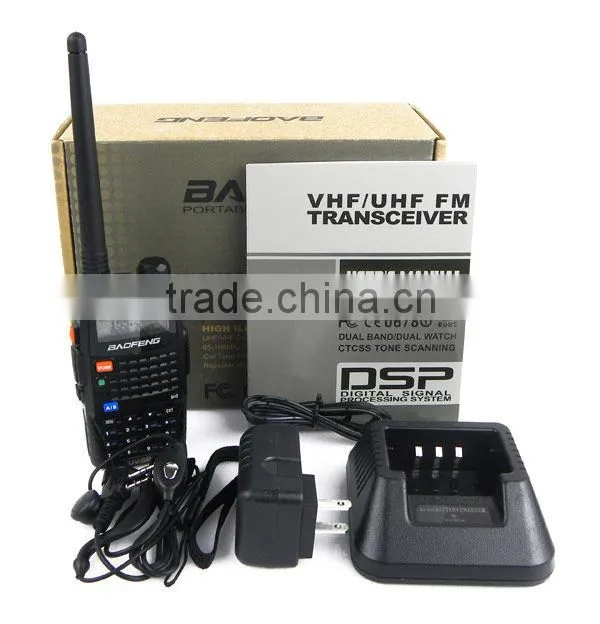

Standard Package Contains

1 x UV-5RC baofeng uv5r

1 x 1800mAh Li-ion Battery

1 x Antenna

1 x Charger

1 x Belt Clip

1 x Earphone

1 x User’s Manual



Warranty

Radio for 1 year, Accessories for 6 months
