BaoFeng UV5R Two Way Radio 136-174/400-520 MHz VHF/UHF Ham Radio
Baofeng UV-5R
Quick Details
| Place of Origin: | Fujian, China (Mainland) |
Brand Name: | Baofeng |
Model Number: | UV-5R |
| Type: | Handheld |
Dimensions: | 109.5mm*59.5mm*34.3mm |
Frequency Range: | VHF136-174MHz and UHF 400-480MHz |
| Storage Channel: | 128 channels |
Talk Range: | 3-5KM |
Certificate: | CE,FCC |
| Radio Type: | baofeng uv-5r |
Antenna: | Removable |
Channel Spacing: | 2.5/5/6.25/10/12.5/20/25KHz |
| Output power: | 4W/1W |
Battery: | Li-ion 1800mAh |
Antenna Impedance: | 50Ω |
| Charger: | Rapid Charger |
Name: | HOT selling, CE & FCC approved two band |
Features of baofeng, baofeng uv-5r, baofeng uv5r :
baofeng uv-5r Main Functions :
1) Output : 4W/1W
2) Frequency Range: 136.00-174.00 MHz & 400.00-520.00MHz
3) Frequency Step Setting
4) High &Low Power Switchover
5) Battery Saving
6) VOX Function
7) Wide/Narrow Band Selection
8) Auto-Back Light
9) Dual Band Standby
10) Time-out Timer (TOT)
11) 50 CTCSS and 104 DCS Codes
12) Voice Prompt
13) ANI Code
14) PC or Manual Program
15) DTMF Code
16) PTT-ID
17) ATUO Keypad Lock
18) Busy Channel Lock Function
19) Dual Band, Dual Display and Dual Standby
20) Emergency Alarm
21) Priory Scanning Function
22) Relay Forwarding Confirmed (1750 HZ)
23) Low Battery Warning
24) U/V Cross Band Dual Watch
25) Dimension: 110x58x32mm
26) Packing Details: 40 Units/CTN, Carton Size: 47.5x42x50 cm
Specification of BAOFENG UV-5R Walkie talkies :
All of our items are Brand New | ||
Model |
BF-UV5R |
|
Dual band / dual display / dual standby |
A/B band independent operation(UV UU VV) |
|
128 groups channels storage |
Shortcut menu operation mode |
|
VFO & Memory channels scan |
Emergency Alarm |
|
Time-out Timer (TOT) |
0~9 grades VOX selectable |
|
PTT & ANI ID |
FM radio and 25 stations storage |
|
Voice companding |
50 CTCSS/104 DCS |
|
High/Low TX power selectable |
Busy channel lock-out(BCLO) |
|
DTMF function |
OFF SET function |
|
Wide/Narrow Band(25kHz/12.5kHz) |
Yes |
|
VOX function |
Yes |
|
Busy lockout function |
Yes |
|
Scanning function |
Yes |
|
Monitor function |
Yes |
|
Time-out Timer (TOT) function |
Yes |
|
LCD display |
Yes |
|
Dual display |
Yes |
|
Battery voltage display function |
Yes |
|
Channel name display and editing functions |
Yes |
|
Signal strength indicator |
Yes |
|
Keypad lock function |
Yes |
|
Built-in Led torch |
Yes |
|
FM radio |
Yes |
|
Wire clone function |
Yes |
|
Emergency alarm function |
Yes |
|
Low battery alarm |
Yes |
|
Power saving function |
Yes |
|
High/Low TX power selectable |
Yes |
4W/1W |
ROGER SET |
Yes |
|
Chinese and English voice prompt |
Yes |
|
PC software programmable |
Yes |
|
Rated Voltage |
7.4V DC±10% |
|
Output power |
<= 5W |
|
Battery type |
Li-ion battery |
|
Battery capacity |
1800mAh |
|
Working temperature |
-20~+50°C |
|
Antenna Impedance |
50ohm |
|
Weight |
255g |
|
Dimension(LXWXH) |
58X32X110mm(Not Antenna) |
|
Frequency stability |
±2.5ppm |
|
Carier wave tolerance |
5ppm |
|
Modulation |
16kØF3E / 11kØF3E |
|
Max frequency deviation |
< 5kHz(Wide) < 2.5kHz(Narrow) |
|
Modulation character |
6 dB per fold frequency patch |
|
Emission current |
< 1.6A(5W) |
|
CTCSS / DCS |
0.5±0.1kHz(Wide) 0.3±0.1kHz(Narrow) |
|
Sensitivity |
< 0.16µV(12dB SINAD) |
|
Silent sensitivity |
< 0.2µV |
|
Intermediation Distortion |
<10% |
|
Inter modulation |
8-12mv |
|
Adjacent channel selectivity( wide/narrow) |
<-65dB(Wide) <-60dB(Narrow) |
|

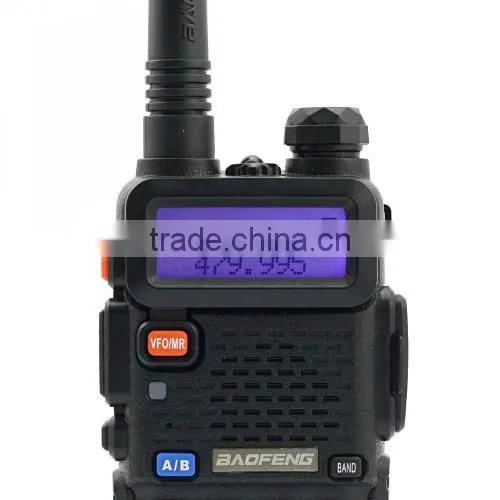

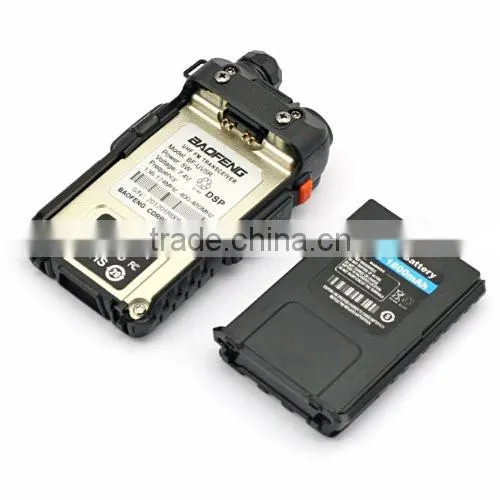

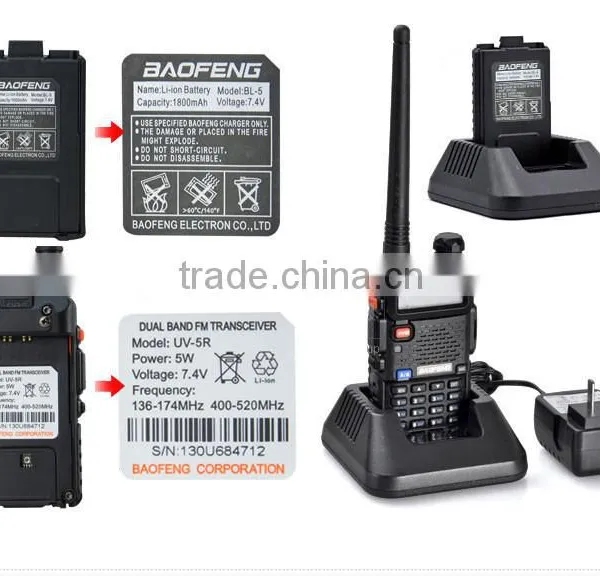

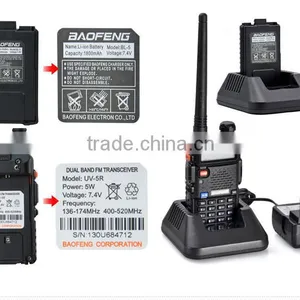

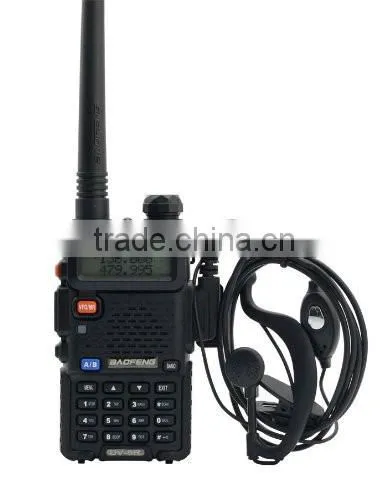

Photos of baofeng uv-5r walkie talkies :

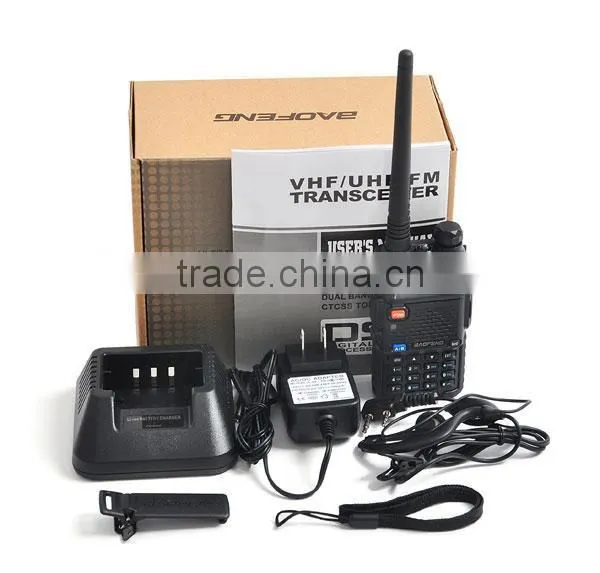

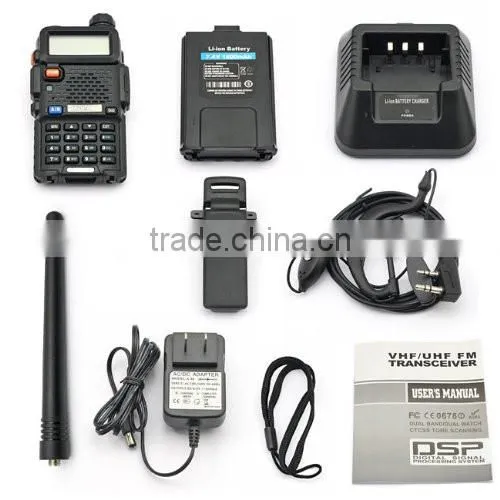

1 x Portable radio baofeng uv-5r
1 x Antenna
1 x Li-ion battery pack
1 x LI-ion charger
1 x Belt clip
1 x The sling
1 x Earpiece
1 x User's manual
