gsm900/dcs1800 dual band wireless repeater 40dBm
GSM900/DCS1800 Band Selective Repeaters
gsm900/dcs1800 dual band wireless repeater 40dBm Main Features |
High linearity PA; High system gain;
Intelligent ALC technology;
Full duplex and high isolation from uplink to downlink;
Automatic Operation convenient operation;
Integrated technique with reliable performance;
Local and remote monitoring (optional) with automatic fault alarm &remote control;
Weatherproof design for all weather installation;
gsm900/dcs1800 dual band wireless repeater 40dBm Applications |
To expand signal coverage of fill signal blind area where signal is weak
or unavailable.
Outdoor: Airports, Tourism Regions, Golf Courses, Tunnels, Factories, Mining Districts, Villages etc.
Indoor: Hotels, Exhibition Centers, Basements, Shopping
Malls, Offices, Packing Lots etc.
It is mainly applicable to such case:
The repeater can find an installation place which can receive pure BTS signal at strong enough level as the Rx Level in repeater site should be more than -70dBm;
And can meet the requirement of antenna isolation to avoid self oscillation.
gsm900/dcs1800 dual band wireless repeater 40dBm Dimensions and weight |
Dimensions(package size): 750(mm)×500(mm)×310(mm)
Weight: N.W.33.5KG G.W.36KG
Technical Specifications |
Items |
Testing Condition |
Specification |
||
Uplink |
Downlink |
|||
Working Frequency(MHz) |
Nominal Frequency |
890 915MHz |
935 960MHz |
|
1710 – 1785MHz |
1805 – 1880MHz |
|||
Gain(dB) |
Nominal Output Power-5dB |
90±3 |
||
Output Power (dBm) |
GSM modulating signal |
33/37 |
33/37/40/43/46 |
|
ALC (dBm) |
Input Signal add 20dB |
Po≤±1 |
||
Noise Figure (dB) |
Working in-band(Max. Gain) |
≤5 |
||
Ripple in-band (dB) |
Nominal Output Power -5dB |
≤3 |
||
Frequency Tolerance (ppm) |
Nominal Output Power |
≤0.05 |
||
Time Delay (us) |
Working in-band |
≤5 |
||
Peak Phase Error(°) |
Working in-band |
≤20 |
||
RMS Phase Error (°) |
Working in-band |
≤5 |
||
Gain Adjustment Step (dB) |
Nominal Output Power -5dB |
1dB |
||
Gain Adjustment Range(dB) |
Nominal Output Power -5dB |
≥30 |
||
Gain Adjustable Linear(dB) |
10dB |
Nominal Output Power -5dB |
±1.0 |
|
20dB |
Nominal Output Power -5dB |
±1.0 |
||
30dB |
Nominal Output Power -5dB |
±1.5 |
||
Inter-modulation Attenuation (dBc) |
Working in-band |
≤-45 |
||
Spurious Emission(dBm) |
9kHz-1GHz |
BW:30KHz |
≤-36 |
≤-36 |
1GHz-12.75GHz |
BW:30KHz |
≤-30 |
≤-30 |
|
VSWR |
BS/MS Port |
1.5 |
||
I/O Port |
N-Female |
|||
Impedance |
50ohm |
|||
Operating Temperature |
25°C ~+55°C |
|||
Relative Humidity |
Max. 95% |
|||
MTBF |
Min. 100000 hours |
|||
Power Supply |
DC-48V/AC220V(50Hz)/AC110V(60Hz)( ±15%) |
|||
Remote Monitoring Function |
Real-time alarm for Door Status, Temperature, Power Supply, VSWR, Output Power |
|||
Remote Control Module |
RS232 or RJ45 + Wireless Modem + Chargeable Li-ion Battery |
|||

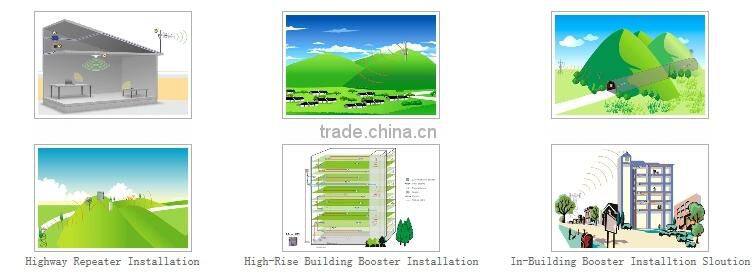

Application scenarios |
Frequency range list for our repeaters :
Support System |
Frequency Range |
Output Power |
GSM900MHZ |
890-915MHz/935-960MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
DCS1800MHz |
1710-1785MHz/1805-1880MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
PCS1900MHz |
1895-1910MHz/1975-1990MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
GSM850MHz |
824-849MHz/869-894MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
CDMA450MHz |
450-457.5MHz/460-467.5MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
CDMA800MHz |
824-849MHz/869-894MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
CDMA1900MHz |
1880-1890MHz/1960-1970MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
UMTS850MHz |
824-849MHz/869-894MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
UMTS2100MHz |
1920-1980MHz/2110-2170MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
GSM900/1800MHZ |
890-915MHz/935-960MHz 1710-1785MHz/1805-1880MHz |
2W/5W/10W/20W/ |
GSM850/1900MHZ |
824-849MHz/869-894MHz 1880-1890MHz/1960-1970MHz |
2W/5W/10W/20W |
GSM900/UMTS2100 |
890-915MHz/935-960MHz 1920-1980MHz/2110-2170MHz |
2W/5W/10W/20W/ |
Our repeater support above frequency range .
Our present manufacturing service:
1. Single-band repeaters of LTE/GSM/CDMA/PCS/DCS/WCDMA
2. Dual-band repeater of GSM/DCS; GSM/WCDMA; CDMA/PCS;
3. Tri-band repeater of GSM/DCS/WCDMA
4,Trunk Amplifier
5. All kind of Antenna/Splitter/Connector/Cable
Question: I work in an office building where my cell phone coverage in certain areas, including my office, is non-existent or spotty at best. How can I improve my coverage?
Answer: The requirement for reliable, always-on cell phone coverage within the office environment is increasing dramatically. It is not unusual to encounter trouble spots within a building where cell phone signals are weak or non-existent.
Kingtone repeater provides affordable and clear coverage to those trouble spots. The unit can be easily deployed and provides a coverage range of up to 100,000 square feet. Multiple units can be easily deployed to cover office areas and working locations.
Kingtone repeater can be deployed even without access to the roof or outside.
1. Q: What is MOQ(mini Order Quantity)
A: In general, it is 100pcs. According situation, it is negotiable.you can also place sample order.
2. Q: do you accept Customized?
A: yes,we did produce as customer requirement ,OEM & ODM are welcomed.MOQ of customized order should be 1000pcs
3. Q: Could you offer free sample to test?
A: Yes, sure. For regular VIP agency we offer free sample when New Products Launch,for New customer you pay the sample fee first when your Order reach required amount we minus the sample Cost for you.
4. Q: What payment terms you can accept ?
A: We support TT /Western Union /Paypal
Welcome to our website : for more updated information .
welcome you to visit our company website: , for more information .
My contact info :
Kingtone, connecting the world seamlessly !
|
|||||
| |||||
|
