High quality wireless cell phone signal booster 3g 4g signal booster
Main Features
- High system gains
- Full duplex and double-end design, external power supply, and convenient installation
- ALC technology with auto-steady function adopted.
- Provide power indication and uplink and downlink indications.
- With the amplified linear power, the intermodulation and spuriousness are suppressed effectively.
- The reliability conforms to GB6993-86 standards.
- The electromagnetic compatibility conforms to ETS300 609-4 standards
Applications
This product is suitable for operation of mobile phones in a weak signal area!
.
Technical Specifications
|
Specification
|
KT-1850 |
|
Frequency range |
Uplink 1710-1785MHz |
|
Downlink 1805-1880MHz | ||
|
Specification
|
KT-1950 |
|
|
Frequency range
|
Uplink 1850-1910MHz |
|
Downlink 1930-1990 MHz | ||
|
Specification
|
KT-3G50 |
|
|
Frequency range
|
Uplink 1920-1980MHz |
|
Downlink 2110-2170 MHz | ||
|
Gain (dB) |
Uplink |
Gp≥45 |
Downlink |
Gp≥50 |
|
Output power |
≥17dBm |
|
Pass band ripple |
≤10dB |
|
I/O return loss |
≤-8dB |
|
Noise figure |
≤-8dB |
|
|
Intermodulation attenuation (Po=13dBm) |
≤-40dBc |
|
Transmission |
≤0.5μs |
|
Ambient |
-10℃~50℃ |
|
Power supply |
AC110~240V±10% 45~55Hz |
|
Reliability |
To the GB6993-86 standard |
|
Electromagnetic |
To the ETS300 694-4 standard |
|
Function |
a) Power supply LED denote b) Export power LED denote |
|
RF Connector |
N-Female |
|
Size |
150mm×85mm×28mm
|
|
Weight |
< 0.8 Kg |
|
Product range: GSM / CDMA / DCS / WCDMA / TETRA / LTE Wireless Full Band Repeater, Fiber Optic Repeater, Frequency Shifting Repeater, Digital / Analog Repeater, Trunk Amplifier
Support System |
Frequency Range |
Output Power |
GSM900MHZ |
890-915MHz/935-960MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
DCS1800MHz |
1710-1785MHz/1805-1880MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
PCS1900MHz |
1895-1910MHz/1975-1990MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
GSM850MHz |
824-849MHz/869-894MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
CDMA450MHz |
450-457.5MHz/460-467.5MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
CDMA800MHz |
824-849MHz/869-894MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
CDMA1900MHz |
1880-1890MHz/1960-1970MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
UMTS850MHz |
824-849MHz/869-894MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
UMTS2100MHz |
1920-1980MHz/2110-2170MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
GSM900/1800MHZ |
890-915MHz/935-960MHz 1710-1785MHz/1805-1880MHz |
2W/5W/10W/20W/ |
GSM850/1900MHZ |
824-849MHz/869-894MHz 1880-1890MHz/1960-1970MHz |
2W/5W/10W/20W |
GSM900/UMTS2100 |
890-915MHz/935-960MHz 1920-1980MHz/2110-2170MHz |
2W/5W/10W/20W/ |
Our present manufacturing service:
1. Single-band repeaters of LTE/GSM/CDMA/PCS/DCS/WCDMA
2. Dual-band repeater of GSM/DCS; GSM/WCDMA; CDMA/PCS;
3. Tri-band repeater of GSM/DCS/WCDMA
4,Trunk Amplifier
5. All kind of Antenna/Splitter/Connector/Cable
1.If still weak signal receipt after installation, please check if outdoor antenna point to signal tower correctly or elsewhere has stronger signal and confirm signal strength achieve-70DBM.
2.If still have no signal after installation, please check our device power adapter whether connected perfectly? And connectors connect well.
3. If strength is not steady, please check if outdoor and indoor antenna is too close; please ensure outdoor antenna has distance of 10 meters at least, with a barrier and not in a same horizontal line.
4. Packed the outdoor connector by waterproof glue, otherwise wet reduce the signal cover area.
| Packaging Detail |

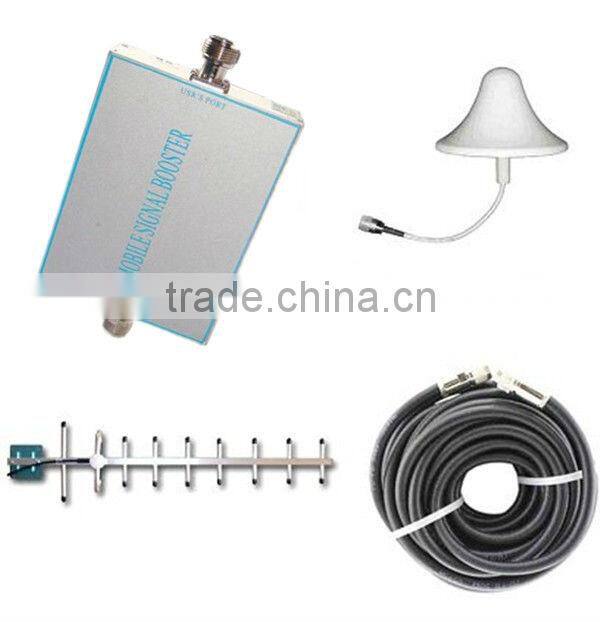

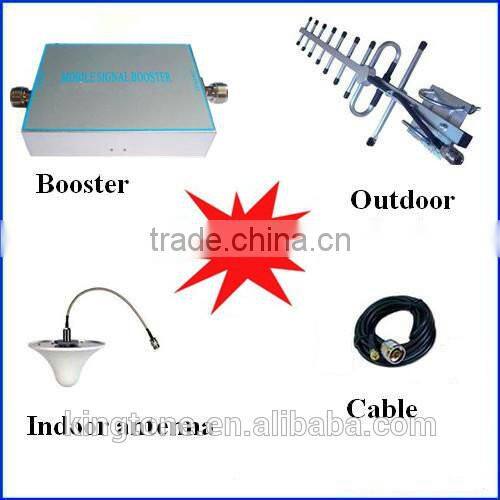

Standard Package 1) Signal Repeater (AC power cord EU standard/ US standard/ UK standard) 1PC 2) Installation kit 1PC 3) User manual 1PC |
| Delivery Detail shipping |
10-15working days after received payment DHL, UPS, FEDEX, Air/Sea freight |
