mini GSM900/1800 dual band signal booster for Indoor Coverage 17dBm-23dBm
- Place of Origin: Fujian, China (Mainland)
- Brand Name: Kingtone
- Model Number: KT-9018B
- Type: GSM / DCS Dual Band Repeater
- Uplink: GSM 890-915MHz/ DCS 1710-1785MHz
- Downlink: GSM 935-960MHz / DCS 1805-1880MHz
- Output power: ≥20dBm
- Gain adjustable: MGC≥30dB
- Size: 228mm*106mm*33mm
- Uplink Gain: Gp≥65
- Downlink Gain: Gp≥70
- Warranty: 12 months
- Standard: CE
Packaging & Delivery
| Packaging Details: | Cartons lined with safety foam;] Weight approx.: 2.5kgs |
|---|---|
| Delivery Detail: | 3~5 working days after order confirmed; |
Easy Install Dual Band Repeater :
1,Perfect Performances
2,Excellent Monitoring
3,High PA
4,CE standard

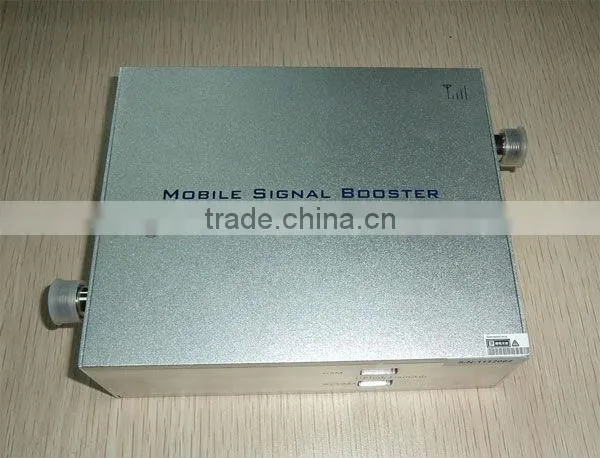

GSM+DCS Easy Install Dual Band Repeater 900/1800 MHz
Easy Install Dual Band Repeater Product Feature
l Provide quick coverage solution for small signal weak & block zones.
l Compact size, low consumption, easy installation, great cover.
l Cover about 300~1500 m² without block or obstruct.
l High linear design, low interference to BTS
l Manual gain control function
Easy Install Dual Band Repeater Technical features
lHigh system gains
lFull duplex and double-end design, external power supply, and convenient installation
lALC technology with auto-steady function adopted.
lProvide power indication and uplink and downlink indications.
lWith the amplified linear power, the intermodulation and spuriousness are suppressed effectively.
lThe reliability conforms to GB6993-86 standards.
lThe electromagnetic compatibility conforms to ETS300 609-4 standards.

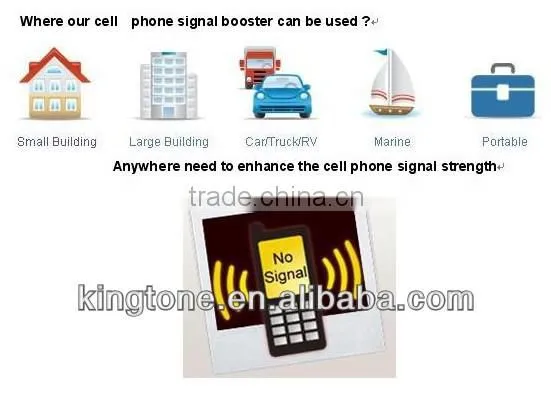

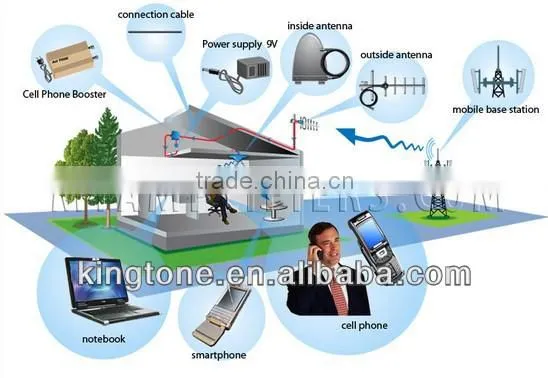

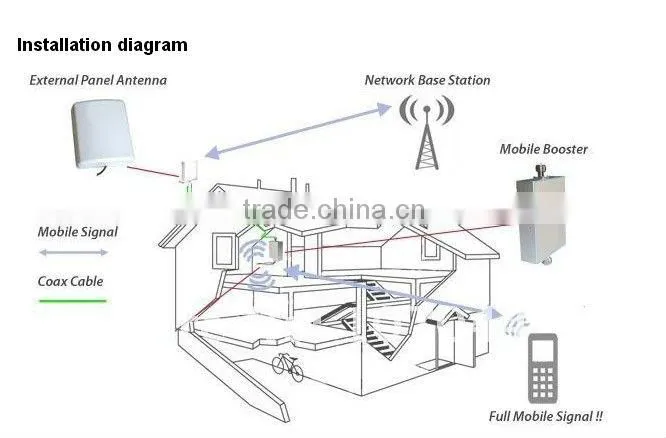

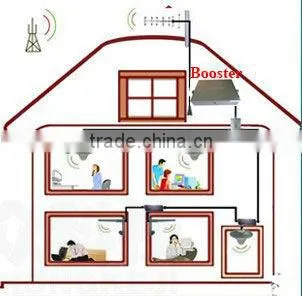

Easy Install Dual Band Repeater Application
Easy Install Dual Band Repeater Technical specifications
|
Specification
|
KT-9018A
|
KT-9018B |
KT-9018C |
|
Frequency range |
Uplink GSM 890-915MHz/ DCS 1710-1785MHz |
|||
Downlink GSM 935-960MHz / DCS 1805-1880MHz | ||||
|
Gain (dB) |
Uplink |
Gp≥55 |
Gp≥65 |
Gp≥45 |
Downlink |
Gp≥60 |
Gp≥70 |
Gp≥50 |
|
Gain adjustable |
MGC≥30dB |
|||
Output power |
≥20dBm |
≥20dBm |
≥20dBm |
|
Pass band ripple |
≤8dB |
|||
Guard band rejection |
(BW-60dB)≤42MHz , (BW-70dB)≤45MHz |
|||
I/O impedance |
50Ω/N Connector |
|||
I/O return loss |
≤-8dB |
|||
Noise figure |
≤-8dB |
|||
|
Intermodulation attenuation (Po=13dBm) |
≤-40dBc |
|||
Transmission |
≤0.5μs |
|||
Ambient |
-10°C~50°C |
|||
Power supply |
AC110~220V±10% 45~55Hz |
|||
Size |
228mm×106mm×33mm |
|||
Reliability |
To the GB6993-86 standard |
|||
Electromagnetic |
To the ETS300 694-4 standard |
|||
Function |
a) Power supply LED denote b) Export power LED denote |
|||
Adjustable gain:
Attenuation Gain(dB)
1 2 3 4 5
Uplink 1 2 4 8 16
Downlink 1 2 4 8 16
Package Included

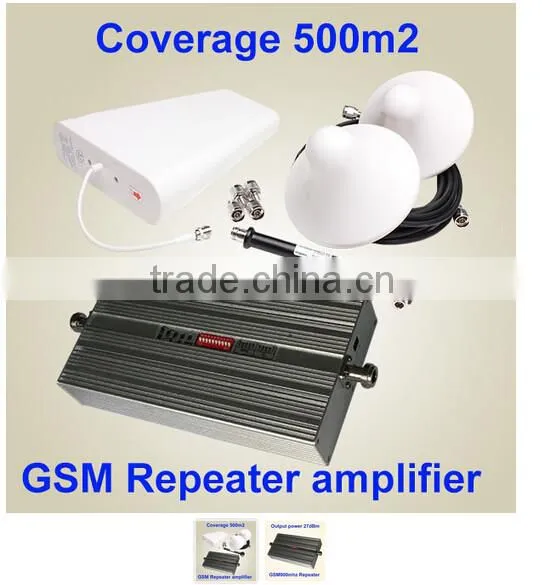

- 1 x Cell Phone Signal Amplifier
- 1 x 100~240V AC Adapter
- 1x user manual
Note : The product is not including cable,outdoor antenna,indoor antenna,you need to buy extra
1. Q: What is MOQ(mini Order Quantity)
A: In general, it is 100pcs. According situation, it is negotiable.you can also place sample order.
2. Q: do you accept Customized?
A: yes,we did produce as customer requirement ,OEM & ODM are welcomed.MOQ of customized order should be 1000pcs
3. Q: Could you offer free sample to test?
A: Yes, sure. For regular VIP agency we offer free sample when New Products Launch,for New customer you pay the sample fee first when your Order reach required amount we minus the sample Cost for you.
4. Q: What payment terms you can accept ?
A: We support TT /Western Union /Paypal
