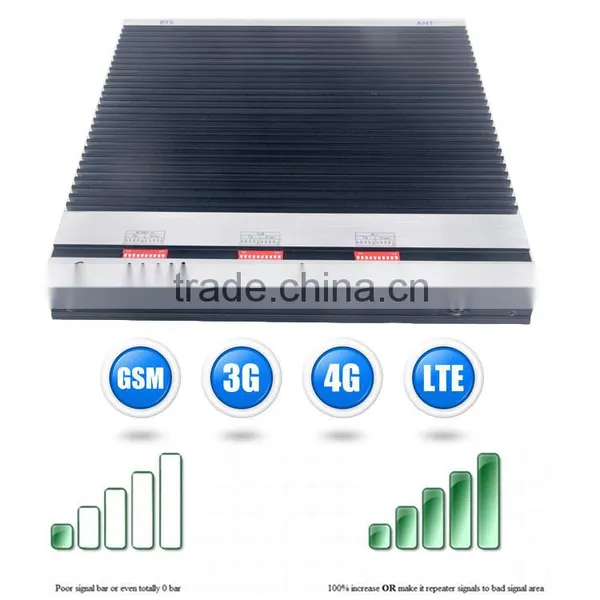

Triband 900/2100/2600/Booster GSM 2G/3G/4G Signal Booster/Repeater

Name: Triband 900/2100/2600/Booster GSM 2G/3G/4G Signal Booster/Repeater
Brand: Kingtone
Price: USD $1 - 299 / Piece

FOB Price

USD $1 - $299 / Piece

1 Piece(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Port Xiamen
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Fujian, China

Brand Name:

Kingtone

Model Number:

2g/3g/4g signal booster/repeater

Packaging Details

Triband 900/2100/2600/Booster GSM 2G/3G/4G Signal Booster/Repeater Package includes:
1 x 27dBm 70dB Tri Band Booster Home GSM 900/1800/2100 Signal Booster
1 x 8dBi Gain Outdoor Beautification Yagi Antenna
1 x 3dBi Gain Indoor Ceiling Antenna
1 x 5 Meters Low-loss Coaxial Cable for connecting indoor Antenna
1 x 15 Meters Low-loss Coaxial Cable for connecting outdoor Antenna
1 x AC Adapter
4 x Screws for Mounting

Product Description

Triband 900/2100/2600/Booster GSM 2G/3G/4G Signal Booster/Repeater

Product Description

Main Features:

1 Mini design, beautiful looking and practical
2 Receiving and sending separation, easy installation and operation
3 Full-duplex design, low consumption, environmental protection
4 AGC,ALC integration design, device stability total improvement
5 MCU singlechip control, monitoring device on running completely

Technical Specification:

Frequency(MHz)		890~915 1710~1785 1920~1980	935~960 1805~1880 2110~2170
Gain(dB)		60	65
Pass band ripple(dB)		GSM≤±3 DCS≤±6 WCDMA≤±4	GSM≤±3 DCS≤±6 WCDMA≤±4
Output Power(dBm)		15	20
ALC(dB)		20	20
VSWR		≤2.5	≤2.5
Time Delay(uS)		≤1	≤1
Noise Figure(dB)		≤8	/
Spurious Emission(dBm)	9KHz~150KHz	≤-36dBm@1KHz
	150KHz~30MHz	≤-36dBm@10KHz
	30MHz~1GHz	≤-36dBm@100KHz
	1GHz~12.7GHz	≤-30dBm@1MHz
Input power range		-25dBm ~ -70dBm
Ambient		-25°C~+55°C
RF Connector		N-Female
Power Supply		AC110V~220V or DC+5V/5A
Size(mm)		17628725
Weight(kg)		2kg

Package includes:

1 x Triband 900/2100/2600/Booster GSM 2G/3G/4G Signal Booster/Repeater
1 x 8dBi Gain Outdoor Beautification Yagi Antenna
1 x 3dBi Gain Indoor Ceiling Antenna
1 x 5 Meters Low-loss Coaxial Cable for connecting indoor Antenna
1 x 15 Meters Low-loss Coaxial Cable for connecting outdoor Antenna
1 x AC Adapter
4 x Screws for Mounting

Installation Approaches:

Fix up outdoor antenna reception on housetop and point to signal tower
Connect outdoor antenna to 'outdoor' port in repeater machine through cable
Connect indoor antenna to 'indoor' port in repeater machine through cable also
Plug power adaptor into AC power socket and finish installation cell phone gsm amplifier

FAQ

Signal Repeater problem & installation technique supporting

1.If still weak signal receipt after installation, please check if outdoor antenna point to signal tower correctly or elsewhere has stronger signal and confirm signal strength achieve-70DBM.

2.If still have no signal after installation, please check our device power adapter whether connected perfectly? And connectors connect well.

3. If strength is not steady, please check if outdoor and indoor antenna is too close; please ensure outdoor antenna has distance of 10 meters at least, with a barrier and not in a same horizontal line.

4. Packed the outdoor connector by waterproof glue, otherwise wet reduce the signal cover area.
