Kingtone GSM 900MHz Cell Phone Cellular Repeater/Amplifier
Kingtone Repeaters system is designed to solve problems of weak mobile signal, which is much cheaper than adding a new Base Station (BTS). Main operation of RF Repeaters system is to receive low power signal from BTS via radio frequency transmission and then transmit the amplified signal to the areas where network coverage is inadequate. And the mobile signal is also amplified and transmitted to the BTS via the opposite direction.
1) Improve Cell Phone communication;
2) Reduce radiation from Cell Phone;
3) Easy to install;
Technical Specifications:
Items |
Kingtone GSM 900MHz Cell Phone Cellular Repeater/Amplifier |
||
Frequency Range |
Uplink |
890-915MHz |
|
Downlink |
935-960MHz |
||
Output Power |
Uplink |
Min +23dBm- +33dBm |
|
Downlink |
Min. +30dBm- +43dBm |
||
Working Bandwidth |
Various bandwidth is available upon request |
||
Gain |
Min. 90dB |
||
AGC Control Range |
Min 40dB (+/-2dB) |
||
Gain Control Range |
31dB (1dB Step) |
||
VSWR |
< 1.5 |
||
Ripple in Band |
Max +/-1.5dB |
||
Inter modulation attenuation |
≤-45dBc ; |
||
|
Spurious Emissions |
9KHz-1GHz |
Max -36dBm |
|
1GHz-12.75GHz |
Max -30dBm |
||
RF Connector |
N-type Female |
||
I/O Impedance |
50 ohm |
||
Noise Figure |
Max 5dB |
||
Group Time Delay |
Max 5µS |
||
Temperature Range |
-25 degree Celsius to +55 degree Celsius |
||
Relative Humidity |
Max 95% |
||
MTBF |
Min. 100,000 hrs |
||
Power Supply |
DC -48V / AC220V/110V (+/-15%), 50Hz/60Hz |
||
UPS Backup Power Supply (Optional) |
6 hours / 8 hours |
||
NMS Monitor Function(Optional) |
Real-time alarm for Door Status, Temperature, Power Supply, VSWR, Output Power, Gain, Uplink ATT, Downlink ATT and etc. |
||
Remote Control Module(Optional) |
RS232 + Wireless Modem + Chargeable Li-ion Battery |
||
Features:
1,It is a high power China Cell Phone Booster for GSM DCS CDMA PCS 3G applications;
2,It can be applied as an outdoor solution;
3,The Mobile Signal Repeater is a cost-effective repeater that will reduce the overall cost of signal coverage extension without the need of implementing more BTS sites;
4,LED light working & signal condition indicators;
GSM 900 1800 Signal Repeater repeater gsm 850 gsm fiber optical repeater dual band 3g signal booster intelligent cell phone repeatergsm long distance repeater gsm repeater gsm signal amplifier repetidor gsm best long range 2100mhz 3g signal repeater 2g 3g 4g mobile cell phone signal boostercell phone 850mhz amplifier 850mhz signal amplifier repeater amplificador 850mhz cdma mobile repetidor de celular 1800mhz tetra repeater cell signal amplifiers repeater 850mhz 30dbm 900mhz signal repeater kingtone1800 2600 mhz signal repeater best buy cell phone repeater 37dbm outdoor repeater mobile signal booster gsm commercial repeater rural area cell phone repeater900 1800 2100 repeater cdma power amplifier gsm amplifier cellular repeater cell repeater repeater outdoor gsm900 20W repeater 1800 2100 5W GSM Mobile Signal Repeater Fiber Optic Repeater Frequency Shifting Repeater 850mhz repeater 3g 4g lte repeater gsm 850 signal repeater

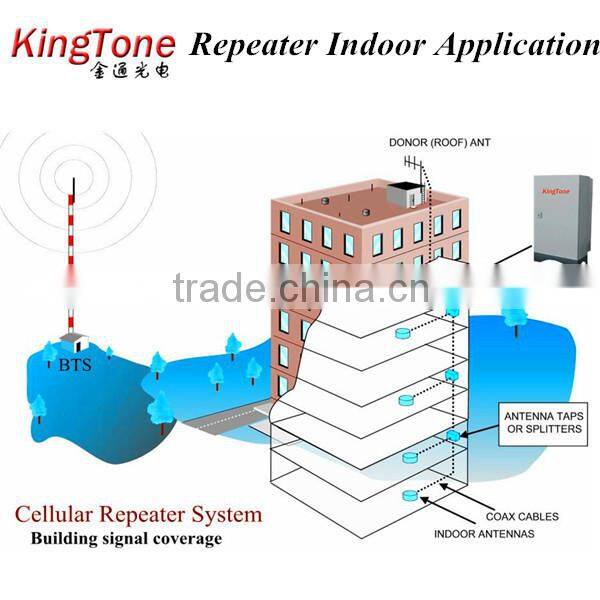

Typical Applications:
Kingtone Kingtone GSM 900MHz Cell Phone Cellular Repeater/Amplifier are widely used in the places below:
Railway Tube Scenery spot
Campus Hospital Oil field
Road Sea-route Town
Rural area Airport Venue
