20 Watt High Power RF Amplifier GSM 850Mhz RF Repeater
| DESCRIPTION |
|
Kingtone 20 Watt High Power RF Amplifier GSM 850Mhz RF Repeater in china for outdoor coverage system is designed to solve problems of weak mobile signal, which is much cheaper than adding a new Base Station (BTS). Main operation of RF Repeaters system is to receive low power signal from BTS via radio frequency transmission and then transmit the amplified signal to the areas where network coverage is inadequate. And the mobile signal is also amplified and transmitted to the BTS via the opposite direction. Main Features:
|
| TECHNICAL SPECIFICATION |
Item |
20 Watt High Power RF Amplifier GSM 850Mhz RF Repeater |
||
Frequency Range |
Uplink |
824-849MHz |
|
Downlink |
869-894MHz |
||
|
Output Power |
Uplink |
Min +23dBm - +33dBm +37dBm |
|
Downlink |
33dBm ,37dBm,40dBm,43dBm |
||
Working Bandwidth |
Various bandwidth is available upon request |
||
Gain |
Min. 90dB-95db |
||
Gain Control Range |
31dB (1dB Step) |
||
VSWR |
< 1.5 |
||
Ripple in Band |
Max +/- 1.5dB |
||
|
Spurious Emissions |
9KHz-1GHz |
Max -36dBm |
|
1GHz-12.75GHz |
Max -30dBm |
||
ACPR |
≤-45dBc |
||
≤-55dBc | |||

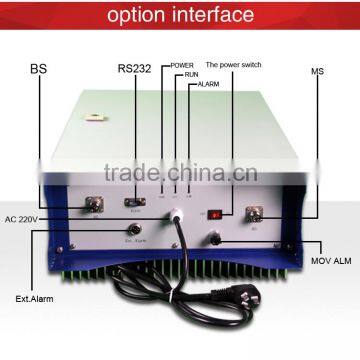

RF Connector |
N-type Female |
||
I/O Impedance |
50 ohm |
||
Noise Figure |
Max 5dB |
||
Group Time Delay |
Max 5µS |
||
Temperature Range |
-25 degree Celsius to +55 degree Celsius |
||
Relative Humidity |
Max 95% |
||
MTBF |
Min. 100000 hrs |
||
Power Supply |
DC -48V / AC220V (+/-15%), 50Hz |
||
UPS Backup Power Supply (Optional) |
6 hours / 8 hours |
||
Power Consumption |
Max 250W |
||
NMS Monitor Function |
Real-time alarm for Door Status, Temperature, Power Supply, VSWR, Output Power, Gain, Uplink ATT, Downlink ATT and etc. |
||
Remote Control Module (Optional) |
RS232 or RJ45 + Wireless Modem + Chargeable Li-ion Battery |
||
| PRODUCT DISPLAY |
| -- 20 Watt High Power RF Amplifier GSM 850Mhz RF Repeater from Kingtone -- |
| -- 20 Watt High Power RF Amplifier GSM 850Mhz RF Repeater from Kingtone -- |
| -- 20 Watt High Power RF Amplifier GSM 850Mhz RF Repeater from Kingtone -- |
| -- 20 Watt High Power RF Amplifier GSM 850Mhz RF Repeater from Kingtone -- |
| APPLICATION |
|
20 Watt High Power RF Amplifier GSM 850Mhz RF Repeater
Outdoor: Airports, Tourism Regions, Golf Courses, Tunnels, Factories, Mining Districts, Villages etc. Indoor: Hotels, Exhibition Centers, Basements, Shopping Malls, Offices, Packing Lots etc. |
| ABOUT US |
| for More, please visit: |
| SHIPPING & PAYMENT |
| MOQ: | 1 unit |
| Loading Port: | Xiamen, Shanghai, Guangzhou, Shenzhen |
Delivery Date |
within 10-15 days |
| Payment Method | T/T, L/C, PayPal, Western Union, Cash, Escrow |
| OEM & ODM | Customized service available |
| Packaging | Each one in box / carton packaging |
| Delivery Method | By Air, Land, Sea or By Expression Courier, such as DHL, FEDEX, TNT, UPS, EMS etc. |
| FAQ |
1. Q: Does OEM & ODM order available?
A: Yes, customer's Logo or design is available;
2. Q: What is the product warranty?
A: One year warranty offered for Kingtone products.
3. Q: How long can I get the products?
A: Normally 10-15 days for production, depends on order quantity.
4. Q: What is the delivery method?
A: Multiple delivery method for selection, by air, land, sea or expression courier.
5. Q: What type of system can you support?
A: System like TETRA, CDMA, GSM, DCS, 3G, 4G, details showed as below:
Product range: GSM / CDMA / DCS / WCDMA / TETRA / LTE Wireless Full Band Repeater, Fiber Optic Repeater, Frequency Shifting Repeater, Digital / Analog Repeater, Trunk Amplifier |
Support System |
Frequency Range |
Output Power |
GSM900MHZ |
890-915MHz/935-960MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
DCS1800MHz |
1710-1785MHz/1805-1880MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
PCS1900MHz |
1895-1910MHz/1975-1990MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
GSM850MHz |
824-849MHz/869-894MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
CDMA450MHz |
450-457.5MHz/460-467.5MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
CDMA800MHz |
824-849MHz/869-894MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
CDMA1900MHz |
1880-1890MHz/1960-1970MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
UMTS850MHz |
824-849MHz/869-894MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
UMTS2100MHz |
1920-1980MHz/2110-2170MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
GSM900/1800MHZ |
890-915MHz/935-960MHz 1710-1785MHz/1805-1880MHz |
2W/5W/10W/20W/ |
GSM850/1900MHZ |
824-849MHz/869-894MHz 1880-1890MHz/1960-1970MHz |
2W/5W/10W/20W |
GSM900/UMTS2100 |
890-915MHz/935-960MHz 1920-1980MHz/2110-2170MHz |
2W/5W/10W/20W/ |
Our present manufacturing service:
1. Single-band repeaters of LTE/GSM/CDMA/PCS/DCS/WCDMA
2. Dual-band repeater of GSM/DCS; GSM/WCDMA; CDMA/PCS;
3. Tri-band repeater of GSM/DCS/WCDMA
4,Trunk Amplifier
5. All kind of Antenna/Splitter/Connector/Cable
|
*Note: If any questions or comments about 20 Watt High Power RF Amplifier GSM 850Mhz RF Repeater ,please contact us with no hesitate via TM,or send us inquiry now ! We are sure any feedback from you will get prompt attention and reply! |
|
