GSM Wireless Fiber Optical Repeaters
Functions:
CDMA800 fiber optical repeaters are able to select one or two different bandwidths. Within the frequency range of 1.25-25MHz, the bandwidth can be selected freely. They are especially used in the operating environment of continuous or discrete multi-carrier. RF band selective repeaters can improve the efficiency of amplifying signals, increase the capacity of anti-interference, enhance the network quality, improve the image of cellular operator and bring them more profit.
Typical Applications:

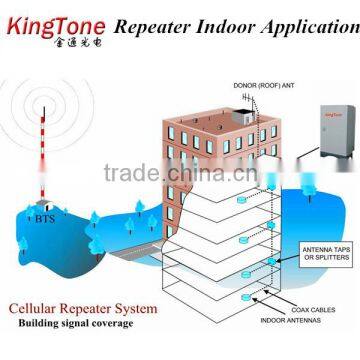

Kingtone 800MHz CDMA Band Selective Repeaters are mainly used in indoor area and outdoor areas.
They are widely used in the places below.
Railway Tube Scenery spot Campus Hospital Oil field
Road Sea-route Town Rural area Airport Venue
Technical Specification:
Item |
Technical Data |
Memo |
||||||
Frequency(MHz) |
800MHz |
|
||||||
Max Gain(dB) |
95 |
|
||||||
Output Power(dBm) |
UL |
0 |
|
|||||
DL |
30 |
33 |
37 |
40 |
||||
ALC Range(dBm) |
≥25 |
|
||||||
Noise Figuer(dB) |
<5 |
|
||||||
Delay(us) |
<5 |
|
||||||
Frequency Tolerance (ppm) |
<0.05 |
|
||||||
Waveform Quality |
≥0.96 (UL) |
≥0.95 (DL) |
|
|||||
Gain Flatness(dB) |
<3 |
|
||||||
Gain Adjust Range(dB) |
>30 |
|
||||||
|
Gain Adjust Range (dB) |
10 dB |
±1.0 |
|
|||||
20 dB |
±1.0 |
|
||||||
30 dB |
±1.5 |
|
||||||
Out of Band Rejection(dB) |
<-38 (UL) |
<-44 (DL) |
Offset Work Band>1.98MHz |
|||||
VSWR |
1.4 |
|
||||||
Power Supply |
AC220V or AC110V (Optional) |
|
||||||
To know more about our repeater, kindly visit our website:
Skype: jessie.lin3707
