Strengthening the mobile network device GSM Repeater Egypt Fiber Optical Repeater
- 1000 Set / Sets per Month
- FOB Xiamen
- Credit Card PayPal
- Fiber Optic Repeater, GSM Fiber Optical Repeater, GSM WCDMA Fiber Optic Signal Amplifier Repeater
- Tri Band GSM900 & DCS1800 & WCDMA Digital Fiber Optic Repeater
- 10W Outdoor/Indoor 3G WCDMA Fiber Optical Repeater 2100MHz Signal Amplifier
- Long Distance Wireless Access 900MHz GSM Channel Selective Professional Digital Fiber Optic Outdoor Repeater
- KT-Tetra 5W Tetra Repeater Outdoor/Indoor 450MHz Fiber Optic Repeater
- 40dbm 90db cellular gsm outdoor signal repeater fiber optic signal repeater
Product Details
Place of Origin: | Fujian, China | Brand Name: | OEM | Model Number: | KT-GSM |
Packaging Details
1,Cartons lined with safety foam;
2,Customized;
Product Description
2.Never miss dropped calls;
3.Expanding the signal coverage;
4.Speed up the file transfer;
5.Signal regenarate and restore of network equipment;

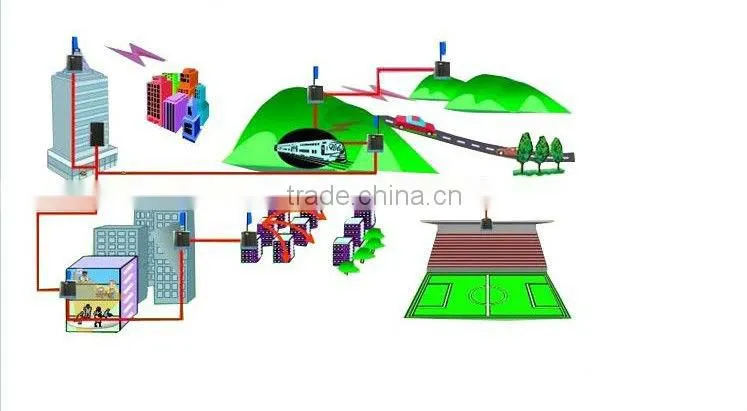

Typical Application:
Kingtone GSM Repeater Signal Booster widely used in the areas with small traffic volume and vast coverage.They are used in the places below:
Railways Tunnels Scenery Spots Compuses Hospitals
Oil Fields Roads Touns Rual areas Airports Venues
Factories Farms Mountainous areas
Technical Specification:
Items | GSM Repeater | |||||
Donor Unit | Remote Unit | |||||
Frequency Range | Uplink | 890-915MHz | ||||
Downlink | 935-960MHz | |||||
Working Band Width | Various bandwidth is available upon request | |||||
No. of Channels | 1,2,4,6,8,12,16foroption | |||||
Transmission Distance | Max20KM(From Donor Unit to Remote Unit) | |||||
Max Input Level | +10dBm | |||||
Output Power | Uplink | Min-10dBm | - | |||
Downlink | - | Min37dBm-48dBm(5W-60W) | ||||
Gain | Min50dB | |||||
AGC Control Range | Min20dB(+/-2dB) | |||||
Gain Control Range | 31dB(1dBStep) | |||||
VSWR | <1.5 | |||||
Ripple in Band | Max+/-1.5dB | |||||
Inter modulation attenuation | ≤-45dBc ; ≤-36dBc | |||||
Spurious Emissions | 9KHz-1GHz | Max-36dBm | ||||
1GHz-12.75GHz | Max-30dBm | |||||
RF Connector | N-type Female | |||||
I/O Impedance | 50ohm | |||||
Noise Figure | Max5dB | |||||
Group Time Delay | Max12µS | |||||
Optical Fiber Specification | Wave Length | 1.31µm;1.55µm | ||||
Output Power | Min0dBm | |||||
Fiber Type | G652 | |||||
Fiber Connector | FC/PC | |||||
Sensitivity | Max-13dBm(C/N=20dB) | |||||
Time Delay | Max5µS/KM | |||||
Temperature Range | -30degreeCelsiusto+55degreeCelsius | |||||
Relative Humidity | Max95% | |||||
M.T.B.F | Min100000hrs | |||||
Power Supply | DC-48V / AC220V (50Hz)/AC110V(60Hz)(+/-15%) | |||||
UPS Backup Power Supply(Optional) | 6hours/8hours | |||||
NMS Monitor Function | Real-time alarm for Door Status, Temperature, Power Supply, VSWR, Output Power, Gain, Uplink ATT, Downlink ATT and etc. | |||||
Remote Control Module(Optional) | RS232orRJ45+WirelessModem+ChargeableLi-ionBattery |
Company Profile
Established in 2006, Kingtone is a high-tech enterprise specialized in developing, producing and selling wireless communication equipments and microwave functional module, such as Repeater for cell phone network, Mobile phone Jammer ,Handheld Transceivers, Vehicle Radio,Marine Radios etc.. Located in Quanzhou City of Fujian Province, we enjoy comfortable environment and convenient transportation. Covering an area of 1710 square meters, our factory is equiped with cutting-edge spectral analyzer, network analyzer, noise figure meter and signal generator, and operating under strict QC guidelines to guarantee high-quality products at competitive prices.
We also deal in high-quality alarm system. Our products conform to international standards, such as CE, GS, CE, EMC, UL and CSA. Meanwhile, OEM and ODM orders are welcome. We are sure that our high quality products and excellent services will be appreciated by the growing list of satisfied customers. Contacting us is the first step to build long and successful business relationships with us.
