BaoFeng UV5R Two Way Radio 136-174/400-520 MHz VHF/UHF Ham Radio
Baofeng UV-5R
Quick Details
| Place of Origin: | Fujian, China (Mainland) |
Brand Name: | Baofeng |
Model Number: | UV-5R |
| Type: | Handheld |
Dimensions: | 109.5mm*59.5mm*34.3mm |
Frequency Range: | VHF136-174MHz and UHF 400-480MHz |
| Storage Channel: | 128 channels |
Talk Range: | 3-5KM |
Certificate: | CE,FCC |
| Radio Type: | baofeng uv-5r |
Antenna: | Removable |
Channel Spacing: | 2.5/5/6.25/10/12.5/20/25KHz |
| Output power: | 7W/1W |
Battery: | Li-ion 1800mAh |
Antenna Impedance: | 50Ω |
| Charger: | Rapid Charger |
Name: | HOT selling, CE & FCC approved two band |
Features of baofeng, baofeng uv-5r, baofeng uv5r :
Specification of BAOFENG UV-5R Walkie talkies :
NEW BAOFENG UV-5R UU Dual Band 136-174/400-520Mhz Radio
Features:
BAOFENG UV-5R The transceiver is a micro-miniature multiband
FM transceiver with extensive receive frequency coverage,
providing local-area two-way amateur communications along with unmatched monitoring capability
VHF/UHF DUAL-BAND TWO WAY RADIO:
- Frequency Range: 136-174 / 400-520MHz
- Dual-Band Display, Dual Freq. Display, Dual-Standby
- Output Power: 7/1Watts
- 128 Channels
- 50 CTCSS and 104 CDCSS
- Built-in VOX Function
- 1750Hz Burst Tone
- FM Radio (65.0MHz-108.0MHz)
- LED Flashlight
- Large LCD Display
- High /Low RF Power Switchable
- 25KHz/12.5KHz Switchable
- Emergency Alert
- Low Battery Alert
- Battery Saver
- Time-out Timer
- Keypad Lock
- Monitor Channel
- Channel Step: 2.5/5/6.25/10/12.5/25KHz
- ROGER SET
| Dual band, dual display, dual standby | A/B band independent operation |
| 128 groups channels storage | Shortcut menu operation mode |
| VFO & Memory channels scan | Emergency Alarm |
| Tri-color background light selectable | 0~9 grades VOX selectable |
| PTT & ANI ID | FM radio |
| Voice commanding | CTCSS/DCS |
| PC programmable | |
| Wide/Narrow Band(25kHz/12.5kHz) | Transmitter time-out timer(TOT) |
| High/Low TX power selectable | Busy channel lock-out(BCLO) |
Specifications:
| Item number | UV-5R |
| General | |
| Frequency Range | 65-108MHz(FM Receive only) |
| 136-174MHZ and 400-520MHZ (TX/RX) | |
| Channel No. | 128 |
| Frequency Stability | ±2.5ppm |
| Antenna | High gain Dual Band antenna |
| Antenna Impedance | 50Ω |
| Operating Voltage | DC 7.4V |
| Mode of operation | Simple or semi-duplex |
| Dimension(W x H x D) | 100 x 52 x 32 mm |
| Weight | 250g(including battery, antenna) |
| Transmitter | |
| Output power | 7W / 1W (Max7W) |
| Modulation Mode | 16kΦF3E / 11kΦF3E |
| Maximum deviation | <5kHz(Wide) / <2.5kHz(Narrow) |
| Spurious Radiation | <7μW |
| Adjacent Ch. power | ≤-65dB(Wide) / ≤-60dB(Narrow) |
| Pre-emphasis characteristics | 6dB |
| Current | ≤1.6A(5W) |
| CTCSS/DCS deviation | 0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow) |
| Intermediation sensitivity | 8-12mv |
| Intermediation distortion | <10% |
All of our items are Brand New | ||
Model |
BF-UV5R |
|
Dual band / dual display / dual standby |
A/B band independent operation(UV UU VV) |
|
128 groups channels storage |
Shortcut menu operation mode |
|
VFO & Memory channels scan |
Emergency Alarm |
|
Time-out Timer (TOT) |
0~9 grades VOX selectable |
|
PTT & ANI ID |
FM radio and 25 stations storage |
|
Voice companding |
50 CTCSS/104 DCS |
|
High/Low TX power selectable |
Busy channel lock-out(BCLO) |
|
DTMF function |
OFF SET function |
|
Wide/Narrow Band(25kHz/12.5kHz) |
Yes |
|
VOX function |
Yes |
|
Busy lockout function |
Yes |
|
Scanning function |
Yes |
|
Monitor function |
Yes |
|
Time-out Timer (TOT) function |
Yes |
|
LCD display |
Yes |
|
Dual display |
Yes |
|
Battery voltage display function |
Yes |
|
Channel name display and editing functions |
Yes |
|
Signal strength indicator |
Yes |
|
Keypad lock function |
Yes |
|
Built-in Led torch |
Yes |
|
FM radio |
Yes |
|
Wire clone function |
Yes |
|
Emergency alarm function |
Yes |
|
Low battery alarm |
Yes |
|
Power saving function |
Yes |
|
High/Low TX power selectable |
Yes |
4W/1W |
ROGER SET |
Yes |
|
Chinese and English voice prompt |
Yes |
|
PC software programmable |
Yes |
|
Rated Voltage |
7.4V DC±10% |
|
Output power |
<= 5W |
|
Battery type |
Li-ion battery |
|
Battery capacity |
1800mAh |
|
Working temperature |
-20~+50°C |
|
Antenna Impedance |
50ohm |
|
Weight |
255g |
|
Dimension(LXWXH) |
58X32X110mm(Not Antenna) |
|
Frequency stability |
±2.5ppm |
|
Carier wave tolerance |
5ppm |
|
Modulation |
16kØF3E / 11kØF3E |
|
Max frequency deviation |
< 5kHz(Wide) < 2.5kHz(Narrow) |
|
Modulation character |
6 dB per fold frequency patch |
|
Emission current |
< 1.6A(5W) |
|
CTCSS / DCS |
0.5±0.1kHz(Wide) 0.3±0.1kHz(Narrow) |
|
Sensitivity |
< 0.16µV(12dB SINAD) |
|
Silent sensitivity |
< 0.2µV |
|
Intermediation Distortion |
<10% |
|
Inter modulation |
8-12mv |
|
Adjacent channel selectivity( wide/narrow) |
<-65dB(Wide) <-60dB(Narrow) |
|

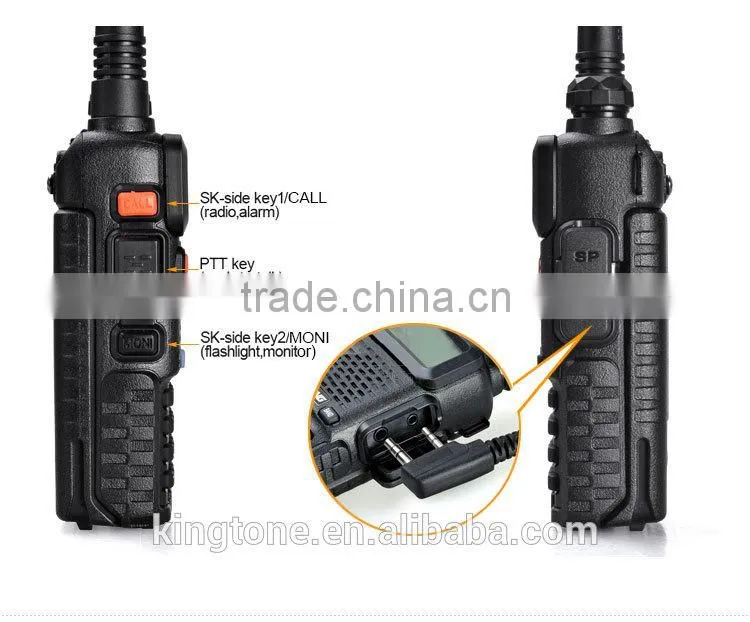

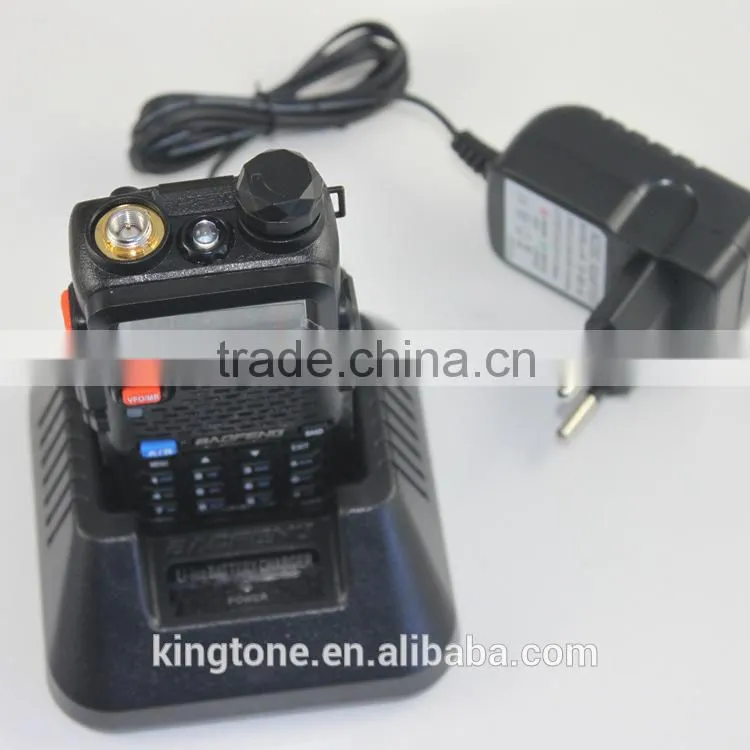

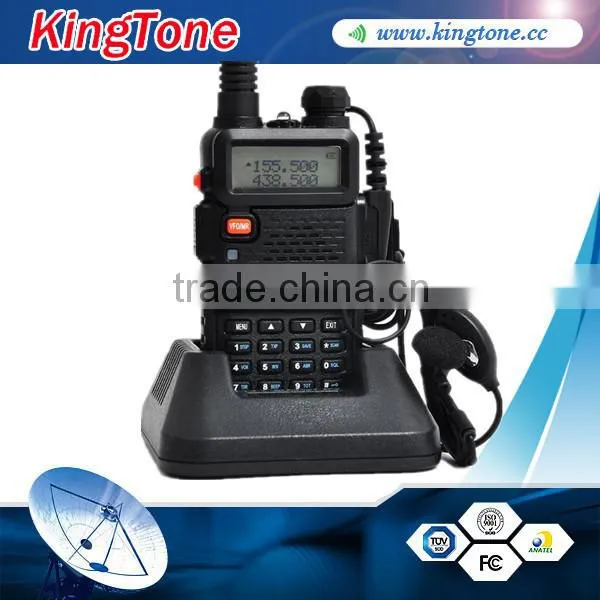

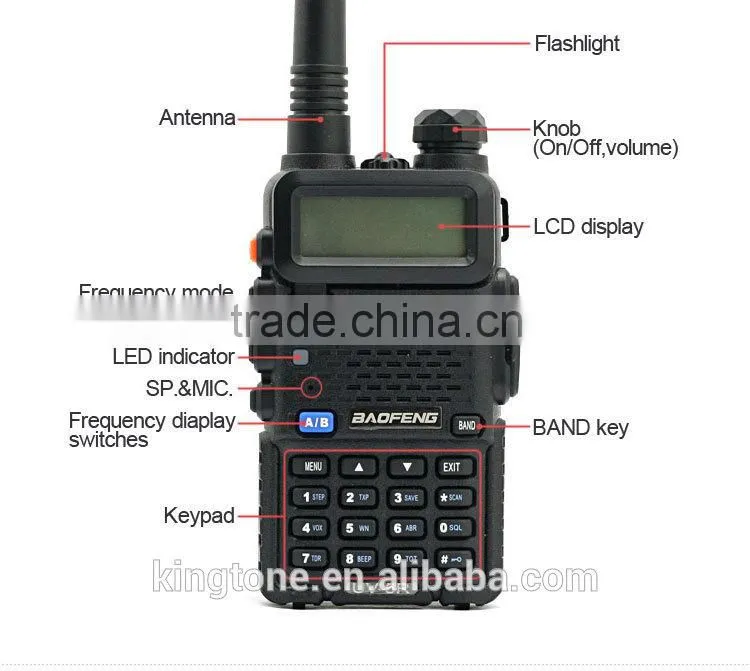

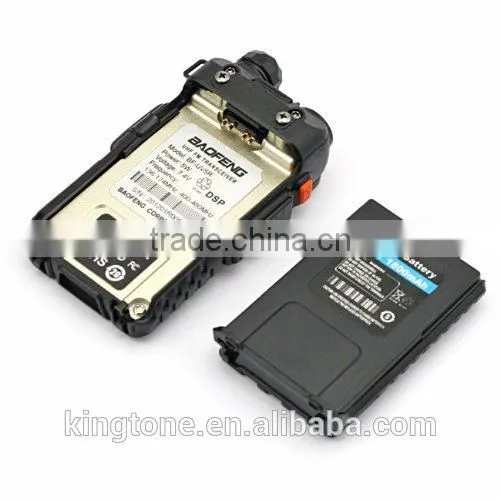

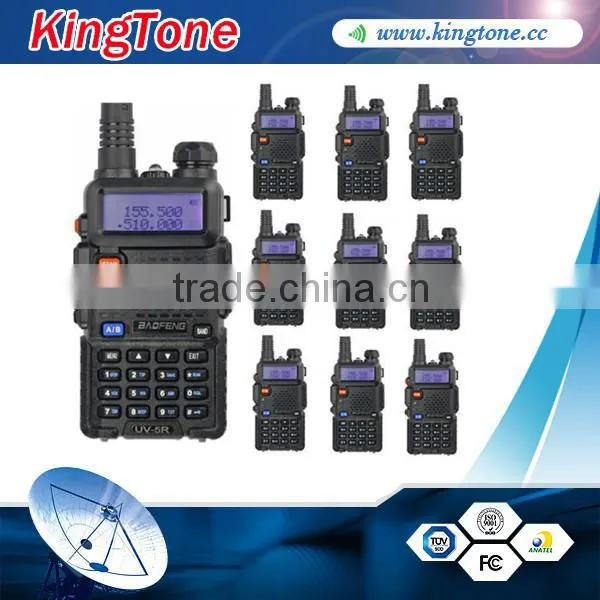

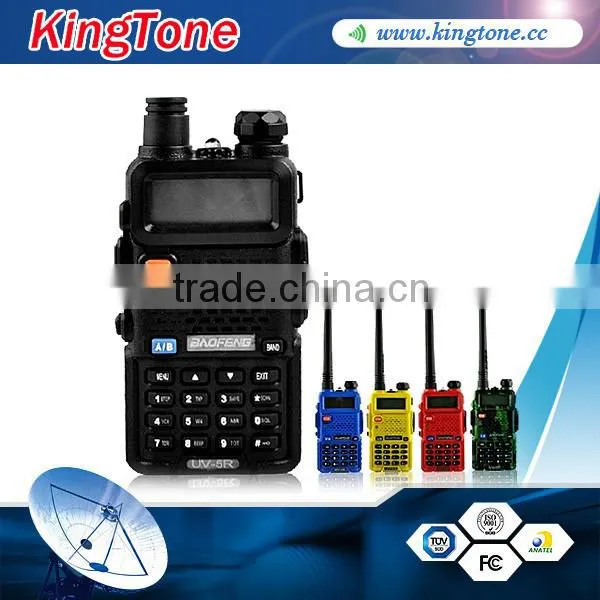

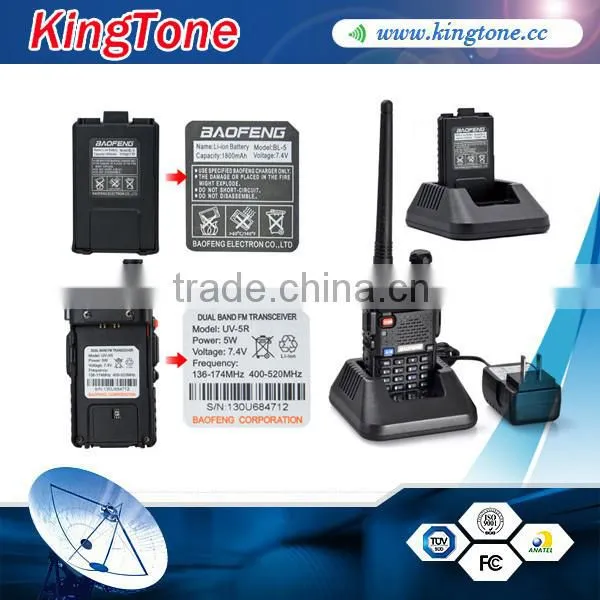

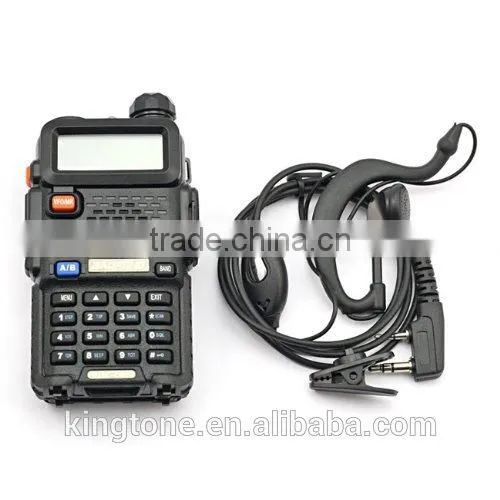

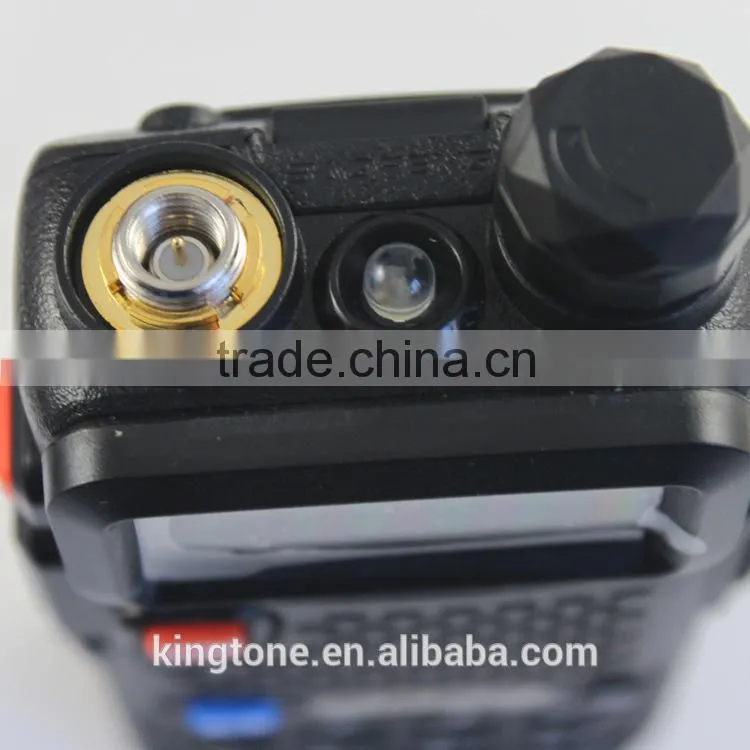

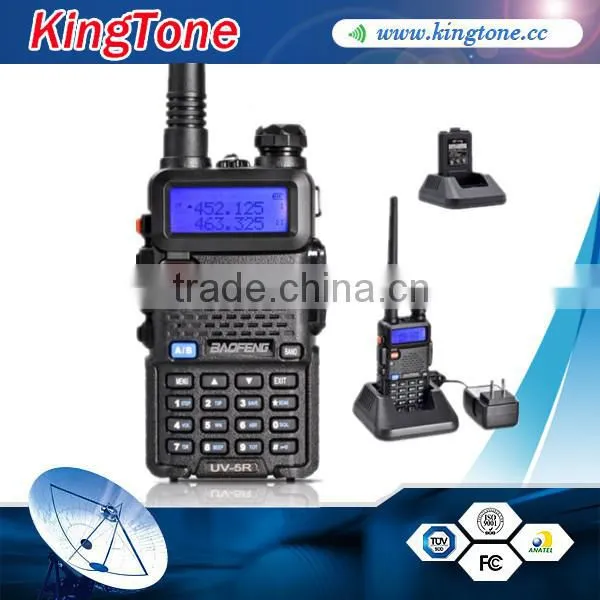

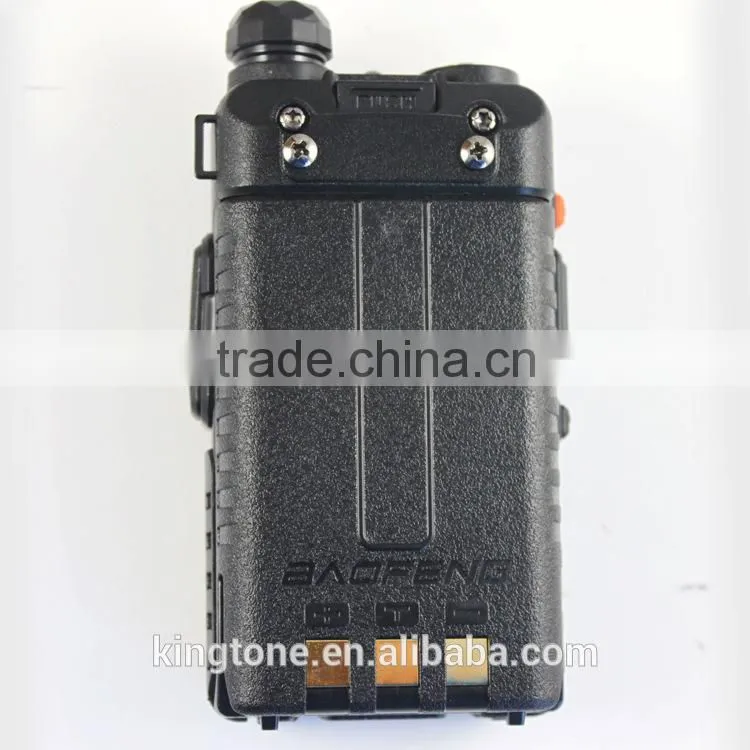

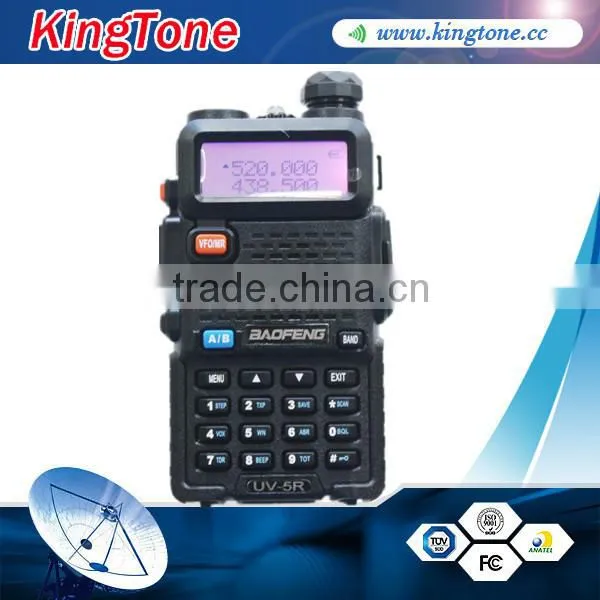

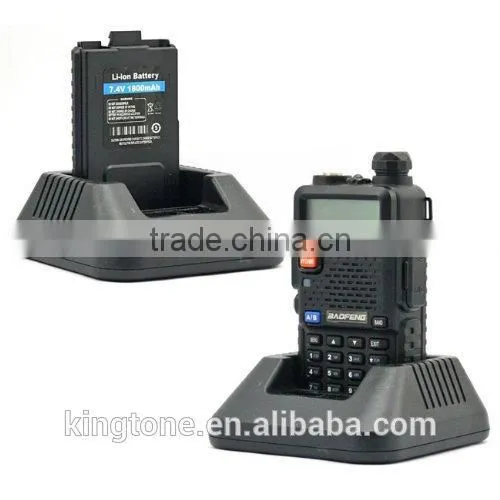

Photos of baofeng uv-5r walkie talkies :

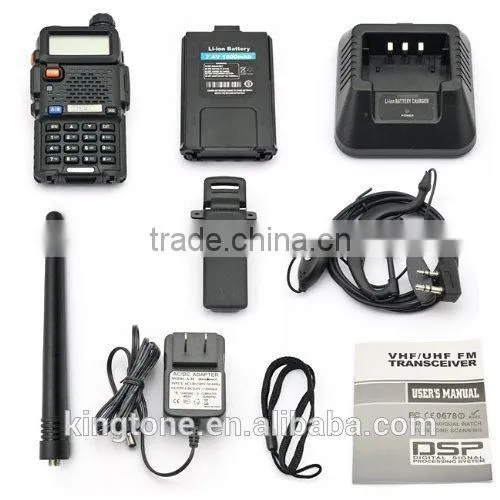

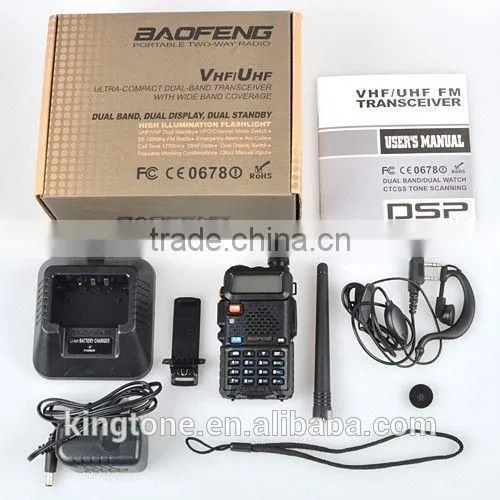

baofeng mobile radio uv5r Complete including accessories :
1 x Portable radio baofeng uv-5r
1 x Antenna
1 x Li-ion battery pack
1 x LI-ion charger
1 x Belt clip
1 x The sling
1 x Earpiece
1 x User's manual
Shipping:
1 We glad to ship World Wide.
2 Please make payment by Western union/TT after we confirm the order.
3 Transportation: UPS, TNT, DHL, EMS or FEDEX.
4 Item will be shipped out within 5 working days upon receipt of the payment. (Excluding Saturday, Sundays & China Holidays)
5 Shipment may arrive within 5 – 16 days. Actual delivery days would be different for varies countries.
6) We do single and combine shipment.
7) Please make sure your shipping address is correct, as the buyer have to pay for the reshipment fee when the package being returned to us.
Payment Policy:
We could only accept payment by Western Union/TT/PayPal
Note:
1. Using rechargeable walkie-talkie for the first time, please charge for 16 hours
2.Turn off your computer before removing the battery
3. Please do not use hand to pick up the antenna, hold the antenna will affect the effective wireless intercom call range
4. Use the walkie-talkie, you should keep it vertical distance of 5.0 to 7.0 cm, and keep your face
5. Please try to use while driving handsfree speaker and the closing words
6. Keep your intercom televisions, computer monitors and other screen to maintain a distance greater than 10cm, to avoid being magnetized
7. The interphone Do things together with other metal-containing storage
8. Walkie-talkies may interfere with some hearing aids, with your hearing aid manufacturer to discuss alternatives
9. Try to place in the medical walkie-talkie off, so as not to affect the use of medical equipment
10. Do not use in airports and on aircraft. If so, prohibited driving the car to the side of the road and then
11. In potentially explosive areas must remain shut down, unless it is dedicated intercom dangerous areas (for example, Factory Mutual, CAS, or UL certified)
12. To avoid electromagnetic interference / compatibility conflicts, in some cases posted notices require you to turn off the intercom, please observe
Approved: CE/FCC
After Sales Service: 1 Year Warranty
