Help CenterNew Design Best Selling Par56 IP68 Waterproof Led Light for Swimming Pool
Related Products
-
Remote Control LED PAR56 Pool 558 LEDUS$ 15 - 30MOQ: 1 Piece -
Stainless Wall Mounted Led Swimming Pool Lights Lamp 558ledUS$ 20 - 30MOQ: 1 Piece
-
Swimming Pool Lights Wall MountUS$ 20 - 30MOQ: 1 Piece
-
35W LED Remote Control Pool Light for UnderwaterUS$ 20 - 30MOQ: 1 Piece
-
Resin Filled LED Swiming Pool LightUS$ 20 - 30MOQ: 1 Piece
Specifications
PAR56 IP68 waterproof LED Light1.waterproof IP68
2.LED QTY: 252/350/558LEDs
3.CE/ROHS
4.Warranty:1year
Product name
LED pool Light,LED Swimming pool light,PAR56 LED pool light,wall mounted led pool light,embedded led pool light
PAR56 Waterproof LED Light Specification
| Model | OL-PAR56-252A | OL-PAR56-350A | OL-PAR56-558A | OL-PAR56-1803 |
| Input Voltage | AC12V | AC12V | AC12V | AC12V |
| LED QTY | 252pcs LED | 350pcs LED | 558pcs LED | 18x3W |
| Power | 18W | 25W | 40W | 54W |
| Dimension (mm) | 178*114 | 178*114 | 178*114 | 178*114 |
| Material | Glass/PC/Stainless steel | |||
| Color | RGB/White/Green/Blue/warm white/red/yellow | |||
| Control mode | Built-in and remote | |||
| Packing | one piece individual box | |||
| Package | 10pcs per exported carton | |||
| IP Rating | IP68 | |||
PAR56 watetproof LED Light Features
1)Viewing angle:15 to 30°
2)IP range:IP68
3)Housing:glass
4)Install type:wall-mounted
5)Controller:RF remote controller
6)Dimensions:175 *114/106mm
7)Program can be made as per request
8)OEM/ODM orders are welcome

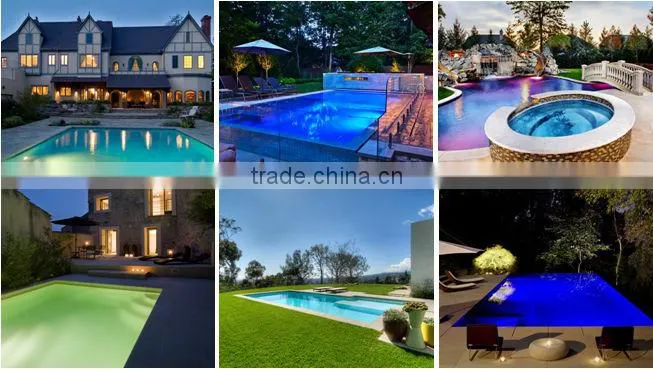

Waterproof LED Light Application
LED Pool Light are widely used for the decoration lighting under water or any water view such as the swimming pool,eruptive fountain, man-made lake.
Instruction of remote control
RGB gradient change illuminated in the first power on or press button “D” to turn on the light
Switch off/on the power each time,the color will be changed with following sequence:Red→green→blue→RGB→RGB gradient change slow→RGB gradient change fast→disco mode slow→disco mode fast→The speed is constantly changing on the flickering effect
Instructions of remote control
1)Continue pressing the button “A” to make the 3 group led change in seven stages:Red→green→blue→red+green→red+blue→green+blue→RGB
2)Continue pressing the button “B” to make the 3 group led change in 3 modes:
RGB gradient change
1)Disco mode
2)Blinking change
3)Pressing button “C” to adjust the speed of “A”and “B”
4)Pressing button “D” to switch on/off the led light
5)It will reset in 5 seconds after power off
6)The remote control can operate many led lights synchronously
Installation procedure
Screw the bracket into the wall
Mount the clip of the bracket into the hole of the light
Screw the detailed illustrations in the below pictures
Cautions
1) . Work with AC12V, otherwise the light will be possibly damaged
2) .This light should be installed not deeper than 50cm underwater
3).The power wire of the lights shall be joined with other power wire out of the water. Waterproof treatment should be done if the joint is in the water otherwise there is risk for water intrusion
4). The light should be in the water for the test of remote function or other functions, and don’t test it more than 3 minutes out of the water otherwise the light will be possibly damaged or caused disfunction. If the user is not available to test it in the water, then please shut off the light every 3 minutes to be cold for the new test.
1.One piece per inner box
2.10 pieces per carton
1. Sample MOQ:1pc
2.Lead time:5-15days depend on order quantity
3.After-sale service
Waterproof LED Light aging
