swimming pool lights wall mount

swimming pool lights wall mount:
1. 1pc/ inner box ; 10pcs/carton
2. customed packages are welcomed

Specifications

swimming pool lights wall mount:
-Waterproof IP68
-252LED / 350LED/ 558LED
-RGB Color , warm white/ cool white etc

 Wall Mounted LED POOL Light specification :



Item No	Power	LED QTY	Volt	IP grade	Size	Material
OL-WM295-252	18W	252pcs	AC12V	IP68	295*90     mm	PC+ABS
OL-WM295-350	25W	350pcs
OL-WM295-558	40W	558pcs
OL-WM280-252	18W	252pcs	AC12V	IP68	280*75   mm	PC+ABS
OL-WM280-350	25W	350pcs
OL-WM280-558	40W	558pcs
OL-WM300-252	18W	252pcs	AC12V	IP68	300*75     mm	PC+                  Stainless steel
OL-WM300-350	25W	350pcs
OL-WM300-558	40W	558pcs





Wall mounted LED POOL LIGHT  features :



1. Single color or ( RGB 7 colors with remote control )

2. Epistar LED Chip from Taiwan

3. Remote control /Auto Control

4. Solid ABS plastic cover or  stainless steel cover

5. Comes with 1.5m cable

6. 100% expoxy filled,  complete sealing ;

7. Waterproof IP68

8. Easy installation and accembling

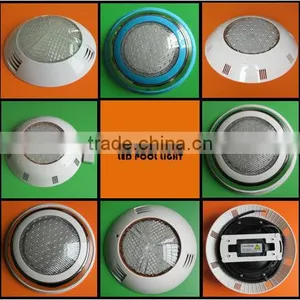

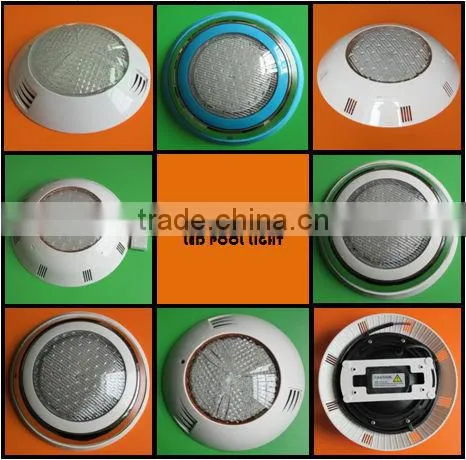

Wall mounted LED POOL LIGHT  - more views :











Wall mounted LED POOL LIGHT  Ageing testing :













Instructions of remote control





1) Continue pressing the button “A” to make the 3 group led change in 7 stages: Red→green→blue→red+green→red+blue→green+blue→RGB

2) Continue pressing the button “B” to make the 3 group led change in 3 modes:

-RGB gradient change   -Disco mode   -Blinking change

3) Pressing button “C” to adjust the speed of “A”and “B”

4)Pressing button “D” to switch on/off the led light

5) It will reset in 5 seconds after power off

6)The remote control can operate many led lights synchronously



Cautions - when testing and installation of Wall mounted LED POOL LIGHT  :



1.Work with AC12V, otherwise the light will be possibly damaged.

2.This light should be installed not deeper than 50cm underwater.

3.The power cable of the lights shall be joined with other power wire out of the water. Waterproof treatment should be done if the joint is under the water .

4.The light should be under the water for the test of remote function or other functions, and do not test it more than 10 minutes out of water, otherwise the light will be possibly damaged or disfunction caused. If the user is not available to test it under the water, then please shut off the light every 10 minutes for cooling to make the new test



Wall mounted LED POOL LIGHT Installation :



1.  Screw the bracket into the wall

2.  Mount the clip of the bracket into the hole of the light

3.  Screw tightly





Wall mounted LED POOL LIGHT Application :



widely used for the decoration lighting under water or any water view such as the swimming pool, fountain,man-made lake, water landscape etc
