LED STREET LIGHT : USA CREE XTE LED + TAIWAN MEANWELL HLG DRIVER + ALUMINUM BODY

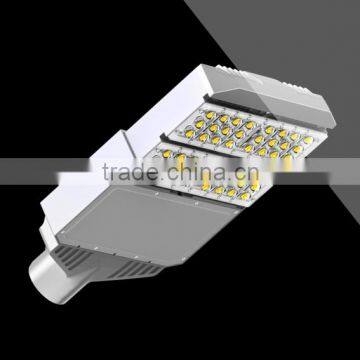

- 1 MODULE : 30W / 50W / 60W
- 2 MODULE : 60W / 80W / 90W / 100W
- 3 MODULE : 120W / 150W / 180W

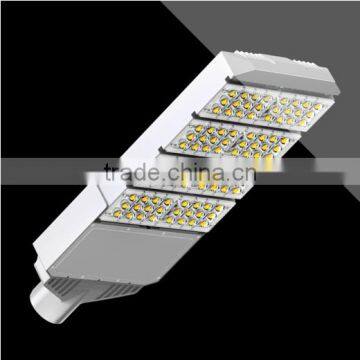

- 4 MODULE : 120W / 150W / 180W / 220W

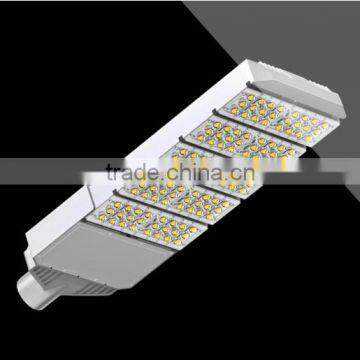

- 5 MODULE : 150W / 180W / 220W

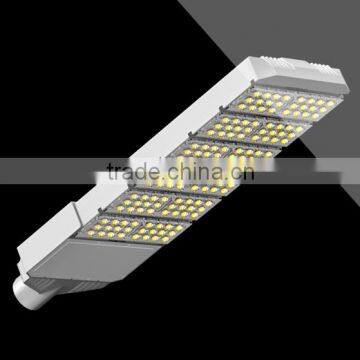

- 6 MODULE : 180W / 220W / 240W / 300W
LED STREET LIGHT SPECIFICATION :
Model |
OL-SL-10002B |
OL-SL-12003B |
OL-SL-15004B |
OL-SL-18005B |
OL-SL-24006B |
Power |
100W |
120W |
150W |
180W |
240W |
Lumen |
9740LM |
12060LM |
16130LM |
18510LM |
24100LM |
LED QTY |
48 LED |
72 LED |
96 LED |
120 LED |
144 LED |
Modules |
2 module |
3 module |
4 module |
5 module |
6 module |
Packaging |
one piece/carton |
||||
Size (mm) |
495×292×98 |
587×292×98 |
679×292×98 |
771×292×98 |
863×292×98 |
Carton size |
60x40x14cm |
70x40x14cm |
78x40x14cm |
88x40x14cm |
95x40x14 |
Net weight |
6KG |
7 KG |
9 KG |
9.5 KG |
10 KG |
Gross weight |
8 KG |
9 KG |
11 KG |
12 KG |
13.1 KG |
Input volt. |
AC85-265V |
||||
Light source |
Original CREE XTE LED from USA |
||||
CRI |
>75 Ra |
||||
Power supply |
Meanwell HLG Driver from Taiwan |
||||
Frequency |
50~60HZ |
||||
Power factor |
>95% |
||||
Color temp. |
2800K-3200K/ 4500K-5000K / 6000-6500K |
||||
Radiator |
Aluminum Alloy |
||||
Beam angle |
Horizontal Axis: 155° ; Vertical Axis: 75° |
||||
Lamp pole |
Diameter 60mm |
||||
Work condition |
-40~+50°C ; 10%-90%RH |
||||
Certificates |
CE & RoHS |
||||

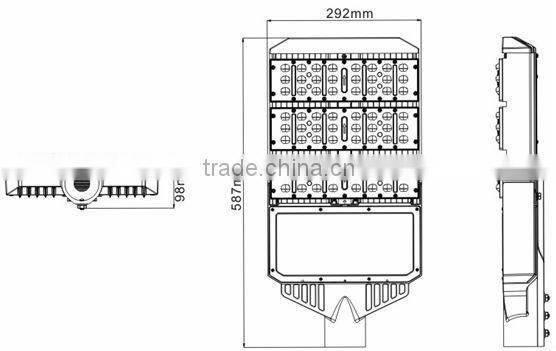

LED STREET LIGHT DRAWING ( 3 MODULES ) :
LED STREET LIGHT HIGHLIGHTS :
1. Using LED street lighting can save operational charges of more than 75%;
2. The original CREE XTE LED from USA, 130-401LM per LED under 0.35A-1.5A;
3. High class lens PMMA optics & other components make high quality lamp, robust and efficient;
4. Ultra thin pure aluminum housing design, easy for storage, installation and maintainance;
5. Silver color appearance, sleek design;
6. Our 3-year warranty for led street light ensures safety and peace of mind comes as standard;
7. Easy Accembly on dia.60mm top lamp post.
8. 16 grade Hurricane resistant, no loosing or broken even when wind speed is up to 56m/s.
LED STREET LIGHT MATERIALS & PROCESS :

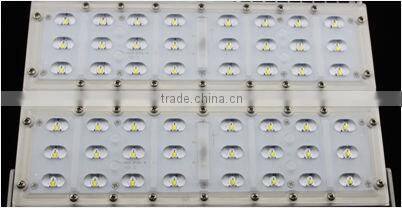

* Applied with unique Quadric Optics Non-imaging Lens, luminaire efficiency over 90%. Aopting non-image system design concepts, the lens can focus almost all lights onto desired areas, from which the light utilisation rate is higher than HPS lights and other LED street lights from competitors.
* In road illumination, the rectangular light spots can perform excellent link up, from which the illuminationuniformity exceeds far beyond road lighting industry standards.

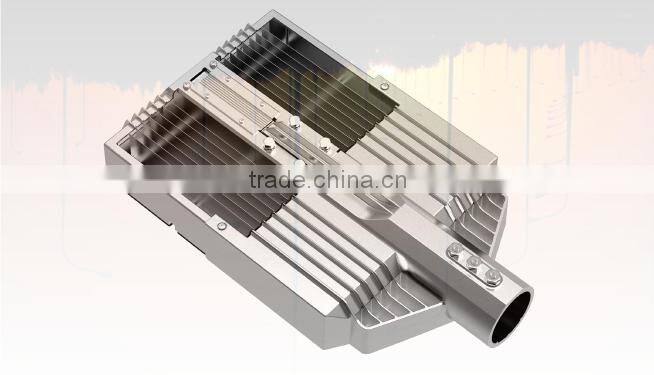

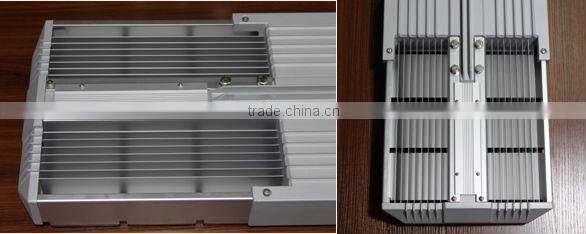

* Radiator made of Aluminum Alloy 6063-T5 which has the great heat conductivity applied with special packaging structure lowering thermal resistance.
* Every detail has been design in the System structure, to achieve the best effect of heat dissipation. Primary LED are connected to Aliminium-base PCB for best thermal conductivity.

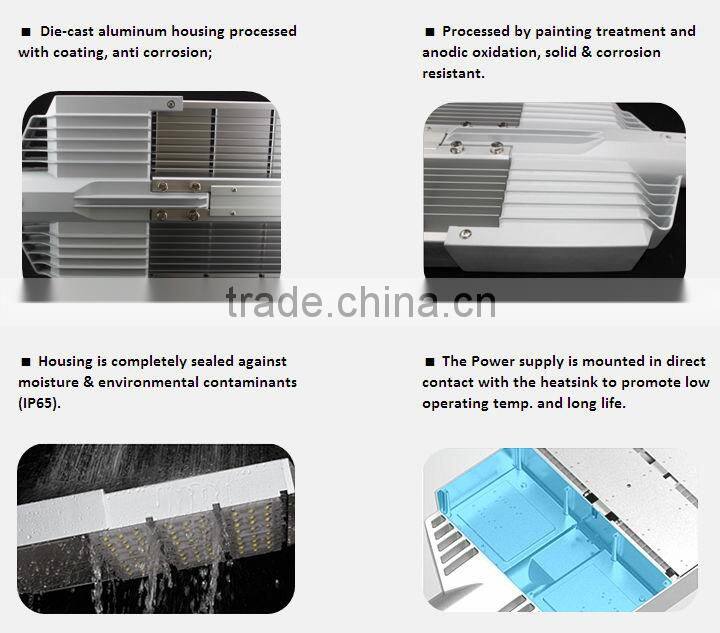

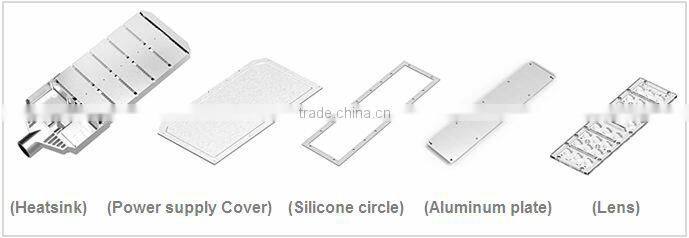

LED STREET LIGHT COMPONENTS :

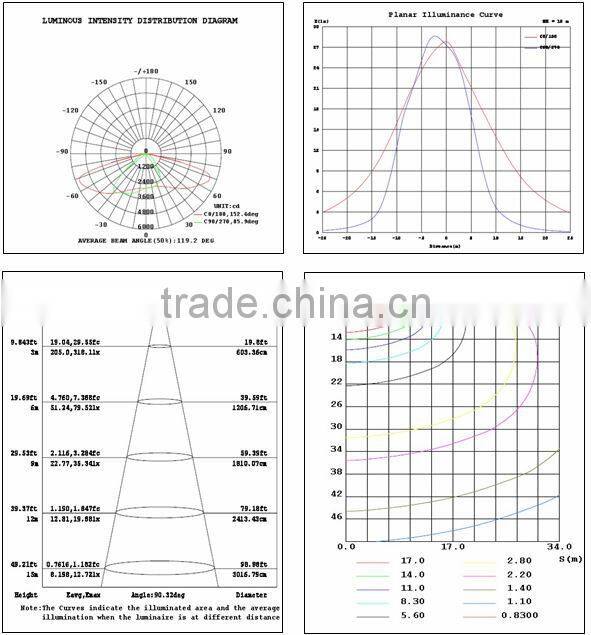

LED STREET LIGHT - LIGHT DISTRIBUTION DIAGRAM :

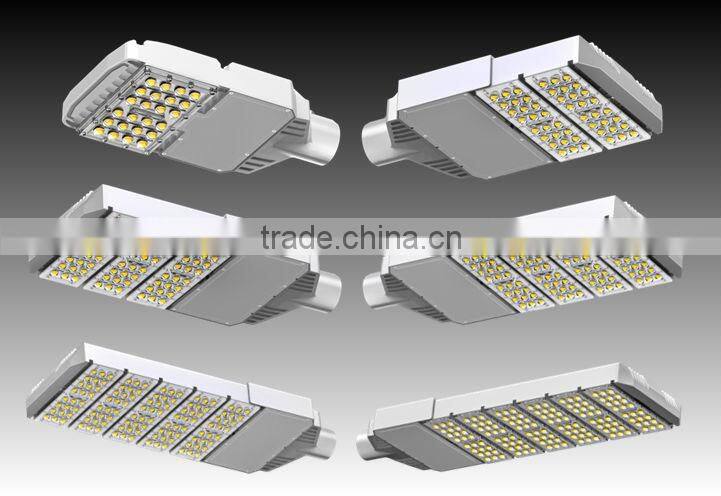

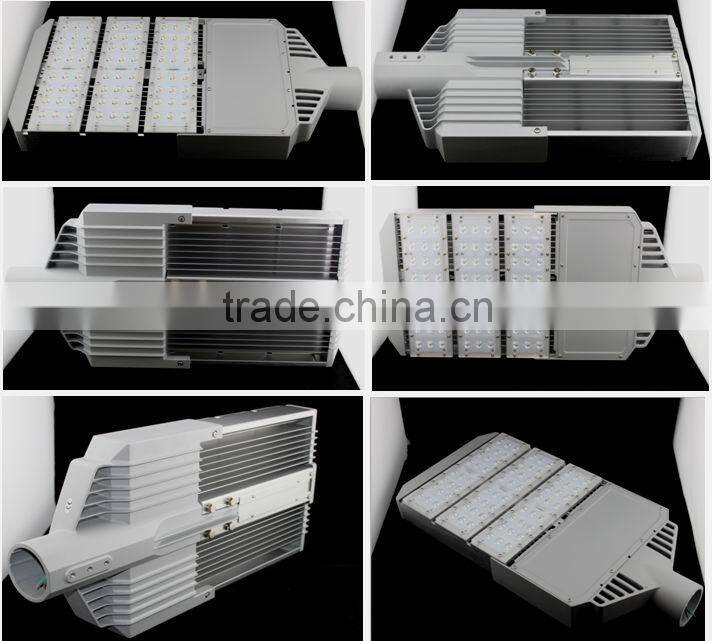

LED STREET LIGHT - MORE VIEWS :

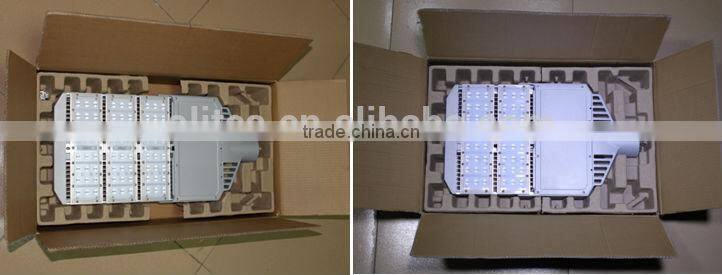

LED STREET LIGHT PACKAGING :

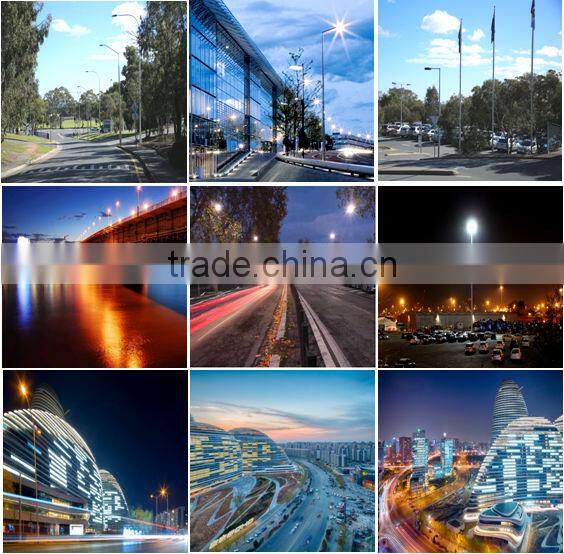

LED STREET LIGHT APPLICATION :
Street, Campuses, Parking lots, Bridge, Sports ground, Garden, Highway, Gas station etc.
OUR SERVICE :
1. Your inquiry will be replied within 24hours.
2. Well-trained and experienced staffs will be at your service.
3. OEM or ODM or any of your customized lighting are available.
4. Distributorship could be offered for your unique design and some of our current models.
5. Protection of your sales area, ideas of design and all your private info.
TRADE TERM :
1. Payment term: T/T ,Western Union ,L/C, Paypal
2. Lead time : 5-7 working days depending on order quantities
3. Shipping freight quoted on request
4. Shipping port: Guangzhou, China
5. Discounts could be offered depending on quantities needed.
CERTIFICATES:
Guangzhou Matt Electrical Lighting Co., Ltd. is a professional LED Lighting manufacturer which integrates R&D, production, marketing and service.Since our company was founded, we have been working for LED lighting research and popularization. After years of development, our company has formed a complete set of standard systems in management, technology,quality and service.
