Product name
led swimming pool lighting,wall mounted led swimming pool light,embedded led swimming pool light,par56 led swimming pool light
led swimming pool lighting Specification
Item No |
LED QTY |
Power |
Dimension (mm) |
Material |
G.W. |
Lumen (lm) |
(LUX) |
Color |
Volt. |
Control mode |
OL-PAR56-252 |
252pcs |
18W |
178*114 |
Glass |
0.75 |
300 |
600 |
RGB |
AC12V |
Built-in controller |
Remote controller | ||||||||||
1200 |
1900 |
W/G/B/R/Y |
N/A |
|||||||
OL-PAR56-350 |
350pcs |
25W |
450 |
1000 |
RGB |
Built-in controller |
||||
Remote controller | ||||||||||
1700 |
2500 |
W/G/B/R/Y |
N/A |
|||||||
OL-PAR56-558 |
558pcs |
40W |
700 |
1800 |
RGB |
Built-in controller |
||||
Remote controller | ||||||||||
2500 |
3300 |
W/G/B/R/Y |
N/A |
|||||||

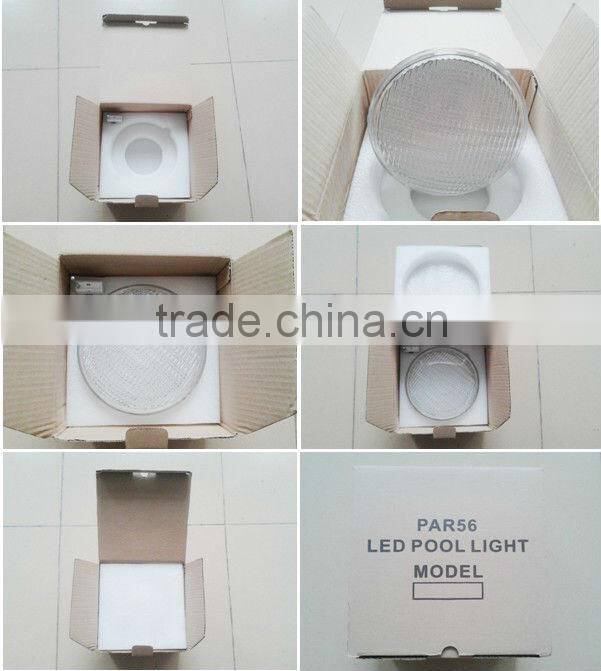

Inner packing:215*215*145mm;Carton Size:734*240*445mm (10pcs/carton) | ||||||||||
led swimming pool lighting Features
1)Viewing angle:15 to 30°
2)IP range:IP68
3)Housing:glass
4)Install type:wall-mounted
5)Controller:RF remote controller
6)Dimensions:175 *114/106mm
7)Program can be made as per request
8)OEM/ODM orders are welcome
led swimming pool lighting Application
LED lamps are widely used for the decoration lighting under water or any water view such as the swimming pool,eruptive fountain, man-made lake.

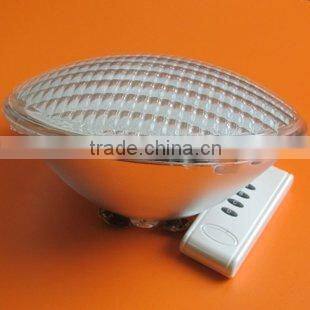

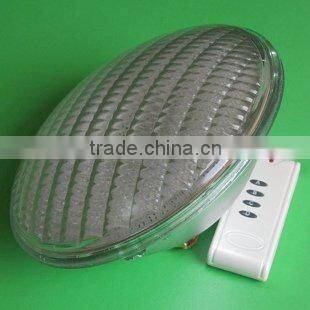

Instruction of remote control
RGB gradient change illuminated in the first power on or press button “D” to turn on the light
Switch off/on the power each time,the color will be changed with following sequence:Red→green→blue→RGB→RGB gradient change slow→RGB gradient change fast→disco mode slow→disco mode fast→The speed is constantly changing on the flickering effect
Instructions of remote control
1)Continue pressing the button “A” to make the 3 group led change in seven stages:Red→green→blue→red+green→red+blue→green+blue→RGB
2)Continue pressing the button “B” to make the 3 group led change in 3 modes:
RGB gradient change
1)Disco mode
2)Blinking change
3)Pressing button “C” to adjust the speed of “A”and “B”
4)Pressing button “D” to switch on/off the led light
5)It will reset in 5 seconds after power off
6)The remote control can operate many led lights synchronously
Installation procedure
Screw the bracket into the wall
Mount the clip of the bracket into the hole of the light
Screw the detailed illustrations in the below pictures
Cautions
1) . Work with AC12V, otherwise the light will be possibly damaged
2) .This light should be installed not deeper than 50cm underwater
3).The power wire of the lights shall be joined with other power wire out of the water. Waterproof treatment should be done if the joint is in the water otherwise there is risk for water intrusion
4). The light should be in the water for the test of remote function or other functions, and don’t test it more than 3 minutes out of the water otherwise the light will be possibly damaged or caused disfunction. If the user is not available to test it in the water, then please shut off the light every 3 minutes to be cold for the new test.
