Home > Lights & Lighting > LED Outdoor Lighting > LED Floodlight > 200w Led Project Flood Light

200w Led Project Flood Light

Name: 200w Led Project Flood Light
Brand: MATT
SKU: 122388451
Availability: InStock

200w Led Project Flood Light thumbnail-1

200w Led Project Flood Light thumbnail-2

200w Led Project Flood Light thumbnail-3

200w Led Project Flood Light thumbnail-4

200w Led Project Flood Light thumbnail-5

200w Led Project Flood Light thumbnail-6

US$ 100 - 150 MOQ: 1 Piece

Key Specifications

Get Latest Price

LED Light Source:

Bridgelux COB LED

Input Voltage(V):

AC100-260

Lamp Power(W):

200

Contact Supplier Request Quote Chat Now

Guangzhou Matt Electrical Lighting Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

FOB Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

LED Light Source Bridgelux COB LED

Input Voltage(V) AC100-260

Lamp Power(W) 200

Lamp Luminous Flux(lm) 19400-21400

Lamp Luminous Efficiency(lm/w) 90

Color Temperature(CCT) Cool White

Working Temperature(℃) -30, +60

Working Lifetime(Hour) 50000

Lamp Body Material Aluminum

IP Rating IP65

Certification CE, EMC, LVD

Place of Origin Guangdong, China

Brand Name MATT

Model Number OL-FL-20001BB-CW

Product Description

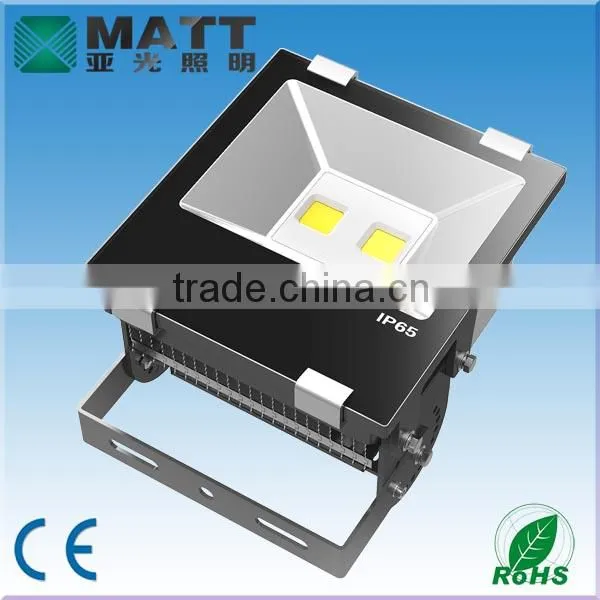

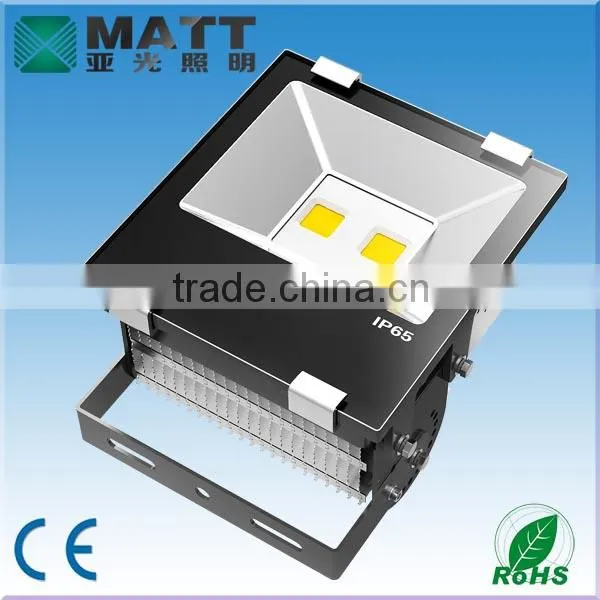

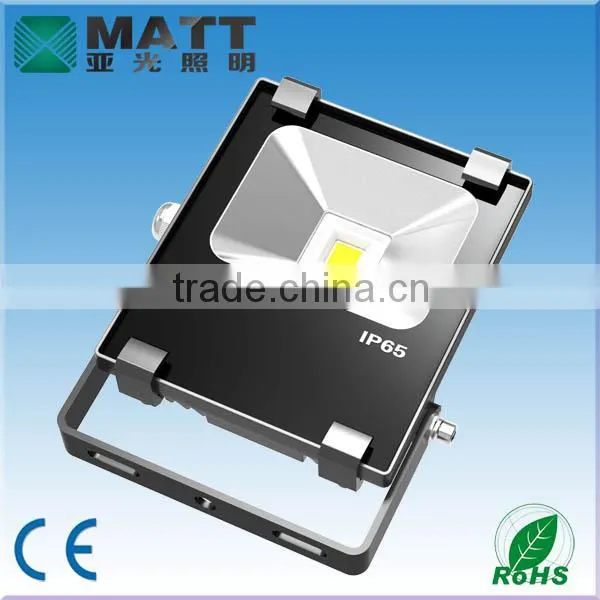

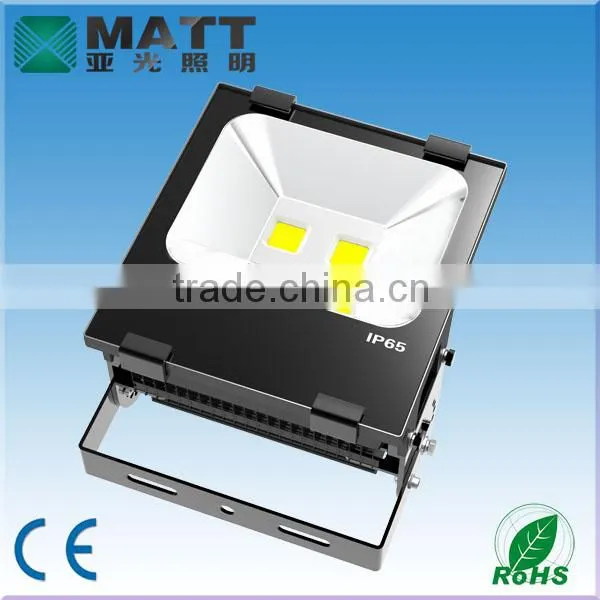

LED Reflector Pictures:

- 10W, 20W, 30W, 50W with ONE COB LED

- 70W , 100W, 120W with TWO COB LEDs

- 150W, 160W , 200W with FOUR COB LEDs

LED Reflector Specification List:

ITEM No.:	Power	Lumen (LM)	Package (units/carton)
OL-FL-1001B	10W	900-1000	36pcs
OL-FL-2001B	20W	1950-2100	20pcs
OL-FL-3001B	30W	2900-3150	20pcs
OL-FL-5001B	50W	4850-5250	4pcs
OL-FL-7001B	70W	6120-6610	4pcs

OL-FL-8001B	80W	7760-8400	1pc
OL-FL-10001B	100W	9700-10500	1pc
OL-FL-15001B	150W	14600-15800	1pc
OL-FL-16001B	160W	15500-16800	1pc
OL-FL-20001B	200W	19400-21000	1pc

More details
Input Volt:	AC100-240V	Color temp:	2700K-7000K
LED brand:	Bridgelux / Epistar	Color:	WW / NW / CW
Driver:	MATT/ Meanwell	Power factor:	>0.95
CRI:	>80Ra	Beam angle:	120degrees
IP Grade:	Waterproof IP65	Housing:	Pure aluminum

LED Reflector features:

1. Light Engine: American Bridgelux COB LEDs, high lumen output, excellent color, CRI >80Ra, uniformity.

2. Driver: renowned Meanwell driver, high power factor is up to 95%. The driver is mounted in direct contact with the heatsink to promote low operating temp. and long life.

3. Thermal Management: Pure aluminum as heatsink design that provides optimal thermal transfer to the luminaire ensuring efficient heat dissipation, better performance and longer lifespan for LED light source.

4.Construction: Aluminum frame shielding material 100% UV stabilized. Toughened glass, scratch and shock resistant, light transmittance is up to 93%.

5. Cost-effetive : Ultra thin and light weight, saving freight cost.

LED Reflector more views:

LED Reflector components:

Light distribution curve:

LED Reflector will be tested for 24 hours before we ship them to your destination:

Packaging & Shipping

LED Reflector Packages:

LED Reflector Usage:

LED Reflector is widely used for Tunnel lighting , Architectural lighting , Security lighting , Factories, Outdoor Sports areas , Car parks , Courtyards ,Advertising boards ,External lighting of Buildings, Garden lighting etc

Our Services

Trade Terms:

1.Payment: T/T , Western Union ,L/C,Papal

2. Lead time: 5-10 working days

3.Samples can be delivered in 3-5 days
4.Shipping freight are quoted under your requests
5.Discounts are offered based on order quantities

Our Service:

1.Your inquiry related to our products or prices will be replied in 24hours.
2.OEM&ODM, any your customized lightings we can help you to design and put into product.
3.Distributoership are offered for your unique design and some our current models

Certificates :
