Help CenterHPS Series High Viscosity Hydrophilic PES Filter Catridge
Related Products
-
HPS Series Hydrophilic PES Filter CatridgeNegotiableMOQ: 1 -
Hydrophilic PES Filter Catridge for Medicine/vaccine FiltrationNegotiableMOQ: 1
-
High Viscosity Hydrophilic PES Filter Catridge for Beer/vaccine FiltrationNegotiableMOQ: 1
-
Hydrophilic PES Filter Catridge for De-ionized Water/vaccine FiltrationNegotiableMOQ: 1
-
Double-layer Hydrophilic PES Filter CatridgeNegotiableMOQ: 1
Specifications
HPS series High viscosity hydrophilic PES filter catridge1.imported PES filter membrane
2.high quality

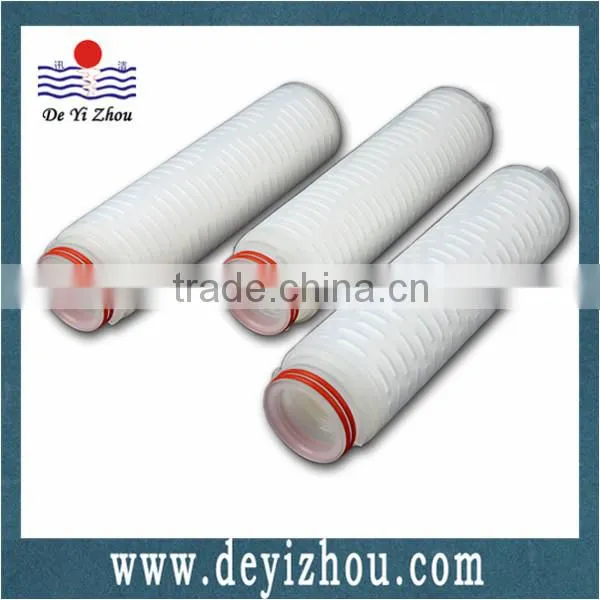

HPS series High viscosity hydrophilic PES filter catridge
Imported PES filter membrane is adopted in the product as filter media. The product is produced by overall structure sweat welding. The filter element is produced through optimum filter membrane matching mode, thereby the product has higher pollutant containing ability and longer service life, which is suitable for terminal filtration of high viscosity material fluid.
1.The filter membrane is hydrophilic with absolute filtration accuracy
2. Low protein adsorption performance
3.High pollutant containing ability
4.Long service life and economic use
1.Sterile filtration of vaccine
2.Sterile filtration of blood products
3.Sterile filtration of raw material medicine, injections, infusion and other drugs
4.Beer filtration
Filter element material composition:
| filter memebrane | PES filter membrane |
| diversion material | polypropylene(PP) |
| outer shell | polypropylene(PP) |
| seal ring | please see filter element modle selection table |
Intergrity test:
| aperture(um) | 0.1 | 0.2 | 0.45 | 0.65 |
| the lowest bubbling point in pure water(MPa) | ≥0.48 | ≥0.34 | ≥0.23 | ≥0.14 |
Water flow capacity-pressure difference curve(10'' filter element)
Main application technical indicators:
| maximum operating temperature | 85°c/0.1MPa |
| maximum operating pressure difference | 0.42MPa/25°c |
| recommended operating pressure difference | 0.1~0.2MPa/25°c |
| maximum back-pressure difference | 0.2MPa/25°c |
| effective filtration are(10 inches) | ≥0.6m² |
| forward online steam sterilization(135°c) | 30min/time |
| disinfection by disinfection cabinet(121°c) | 30min/time |
Quality assurance:
1.ISO9001: 2008 guaranteed quality management system
2.Traceability management system of each filter
3.Filter elements are flushed and pass integrity test before filter elements are left from the factory
4.The batch passes through bacterial challenge test for confirming 100% bacteria interception ability
Biological safety:
1.Biological Safety: The product materials comply with USP in-vivo VI-121 ℃ plastic biological response test
2.Endotoxin: <0.25EU/ml
3.Cleanliness: The product is in line with 2010 GMP requirements on injection of particles
4.Readily oxidizable substance: the substance should be in line with 2010 GMP test requirements of particle contents in injections after water rinsing for 2000ml
5.TOC/conductivity: after the product is flushed with 20L injection water at 25 ℃ (10"). It is in line with requirements of 2010 GMP on total organic carbon contents and conductivity in injection water.
