Specifications
Specifications1.RJ11 RJ45 cable tester
2.CE/UL...cerfification
3.fast delivery,good quality assurance,best price
Specifications
1.RJ11 RJ45 cable tester
2.CE/UL...cerfification
3.fast delivery,good quality assurance,best price
4.T/T. PAYPAL.

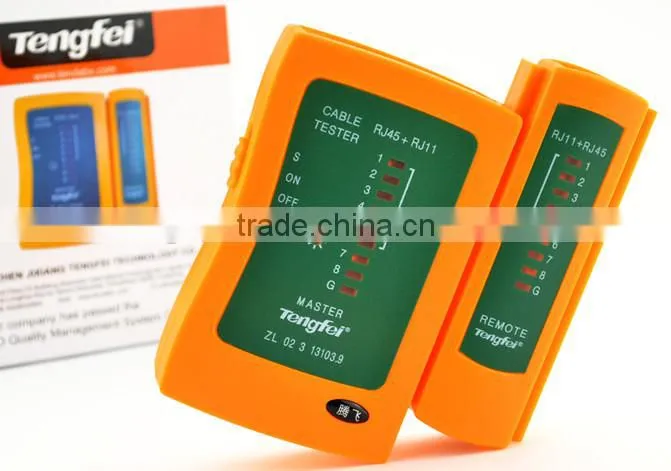

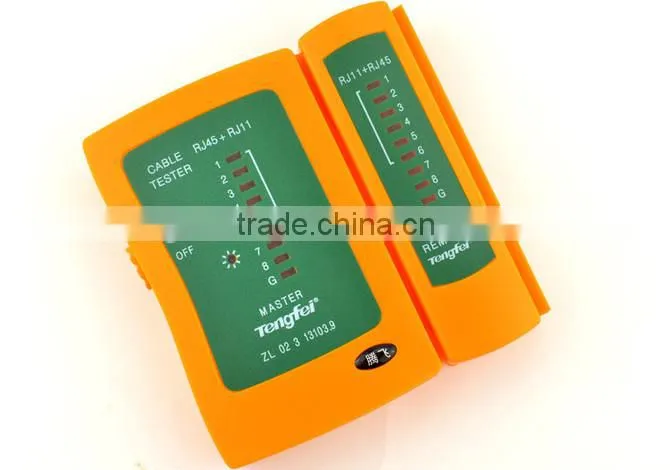

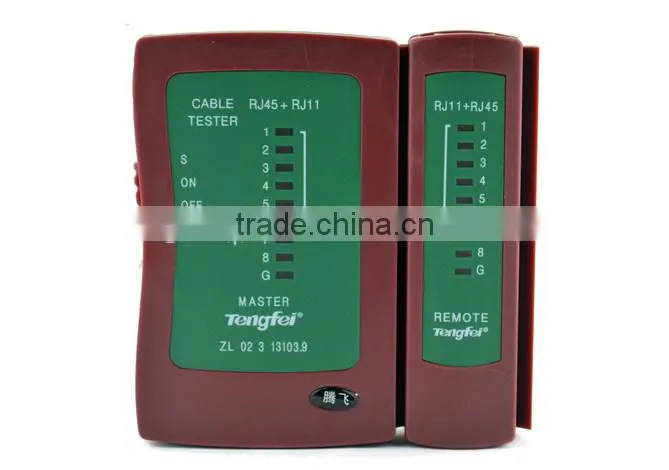

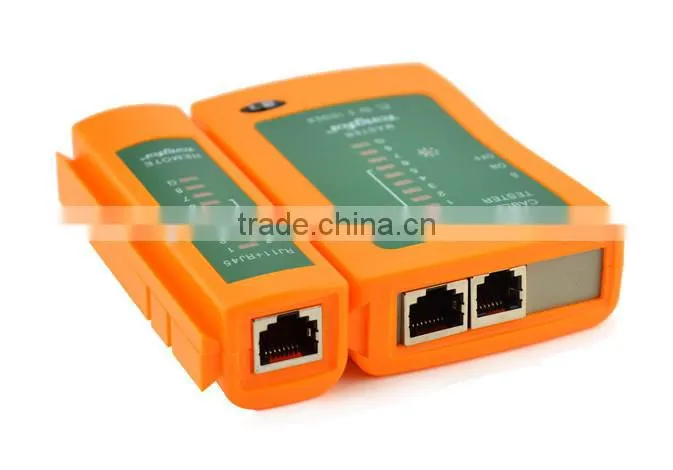

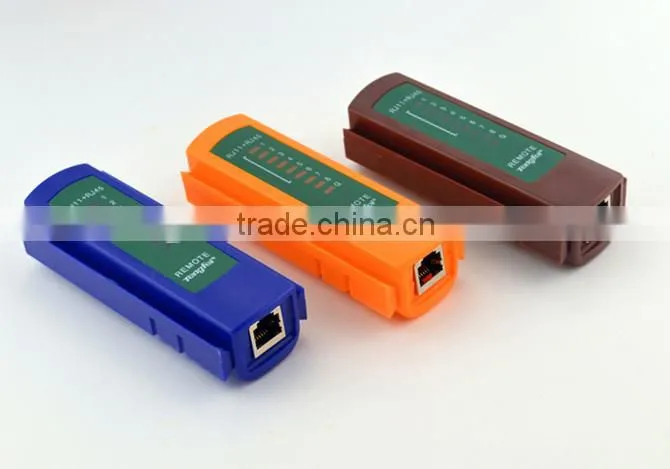

product image:
description:
1.This series of network test instrument is,by means of automatically scanning cables.
2.specially used for the quick test of the continuity wiring sequence and positionin of 10-Base-T(UTP/STP)-AT&T258A,T258A/B,Token Ring and USOC4/6/8 modular,
3.by virtue of the remote terminator attached (this tester),able to easily test cables whether before or after cable installation,convenient for quick test.
function:
1. Tests shielded (STP) or unshielded(UTP) LAN cables
2. Tests installed wires and patch cables
3. Remote unit stores in Main unit
4. 600 ft test distance (RJ-45/RJ-11/BNC)
5. Simple one button test

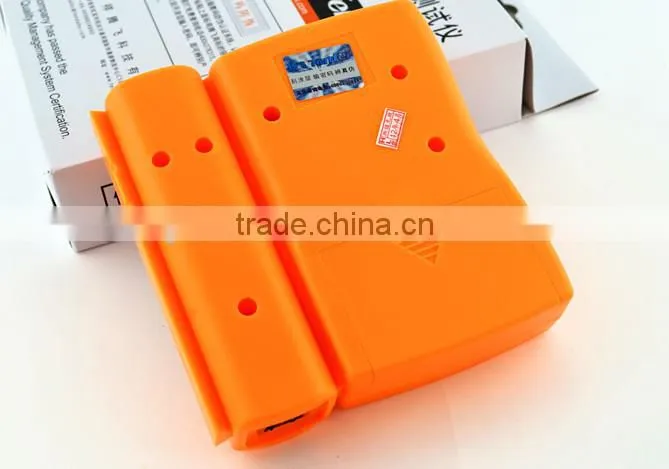

6. Convenient battery access
7. LEDs indicate connections and faults
8. Beeper provides audible annunciation of test results
technical parameters:
|
Cables Tested
|
*UTP/STP LAN cables terminated in RJ-45 connectors.(EIA/TIA 568) *RJ-11 cables with connectors, 2 to 6 conductors installed. *USB cables with Type A flat plug on one end and *type B square Plug on other end. *BNC cables with connectors. |
Faults Indicated |
No Connection , Short, Open, cross |
Low battery Indicator |
LED lights to indicate low battery. |
Case Dimensions |
7.25×4.0×1.0 inches |
Weight |
200 g.(Without battery). |
Battery |
DC 9V |
HOW TO USE
1.Turn on power switch,the power light will be flash(‘s’ for low speed test)
2.to test twist pair cable, one side contect to the master unit and the other side contect to remote unit and the other side contect to remote unit

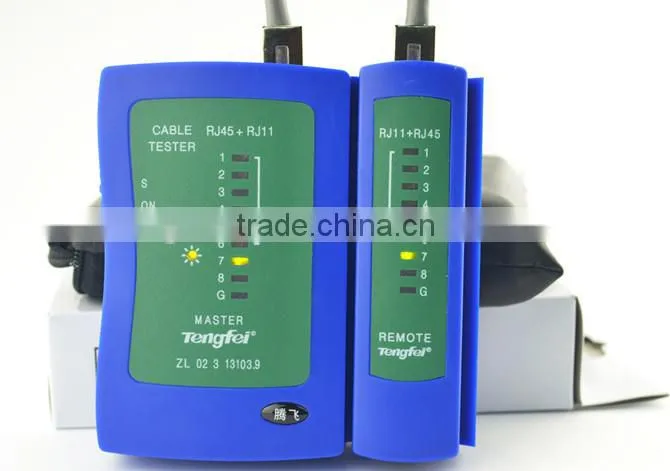

3.on main unit indicator light from NO.1 to 8 ,if the cable is normal,the indicator light will be light form NO1 TO 8
Package includes:
- 1 x Cable Tester

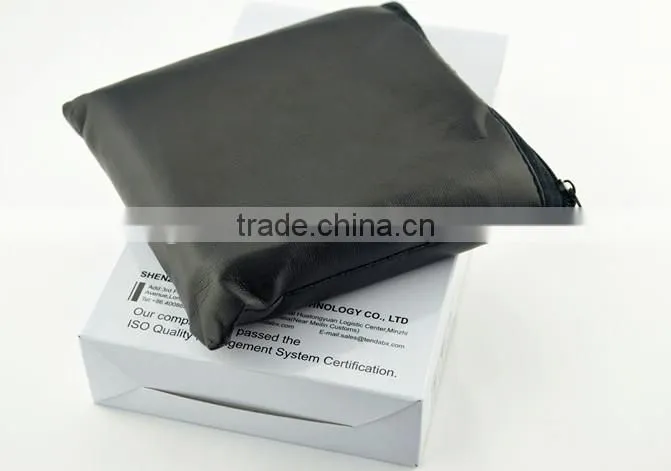

- 1 x PU Leather Bag
- 1 x User Manual
company show:
Why to choose us
1. Our salesman selected from technician, they can provide timely professional services.
They will help you with right purchase.
2. They are trained in international logistics. They can cooperate with shipping agent precisely to provide the most accurate date/cost.
3. They are equipped with globe market vision, they will serve you according to your habits and Market practices.
