Pocket Multi Network Cable Tracker Wire Toner Tracer Tester
- 10000 Piece / Pieces per Month
- Shenzhen
- Credit Card
- Automatic Doypack Seal Machine (insert and sealing machine)
- Sand Water Filter/Water treatment plants
- IPX3/IPX4 Hand-held Water Spray Nozzle Test Device IEC 60529
- IPX5,IPX6 Jet Nozzle of IEC 60529, Brass material
- Adjustable and multifunctional Spring Impact Hammer IK01-IK07 Level Tester
- Test probe 43 IEC 61032-Probe 43-Figure 17 Jusdtest
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Tengfei | Model Number: | TF-008 |
Product Description
Specifications
China cable tracker network wire tracerUniversal use
Brand new, high quality, cheapest price
OEM, sample order welcome

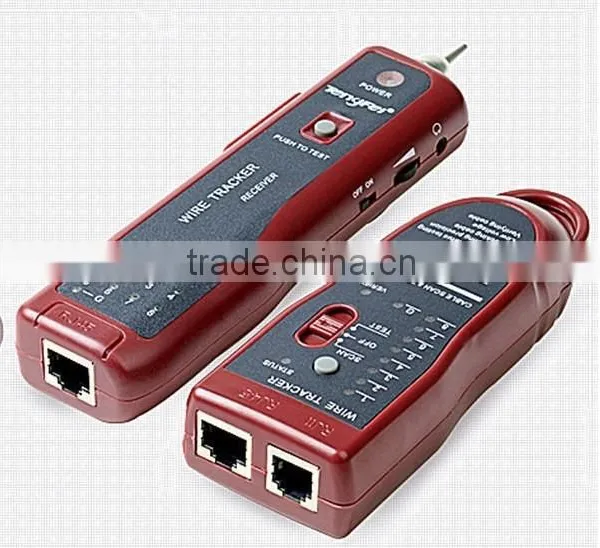

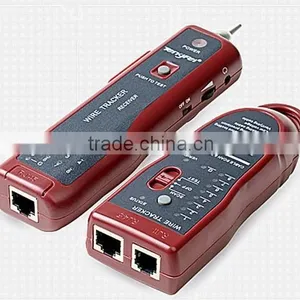

Product name: Pocket Multi Network Cable Tracker Wire Toner Tracer Tester
Product image:
Function:
1. Trace telephone wire/LAN cable
2. Trace wire in electrical system
3. Verify LAN cable condition
4. Continuity test
5. DC level testing function.
6. Bright white LED flash light
Electrical Data:
The max working current Emitter <=10mA
Receiver <=30mA
Signal transmission format Multi-frequency impulse
Signal output electric status 8Vp-p
Distance of signal transmission >=3km
Packing Measurement:
Appearance dimension Emitter 126×49×34,mm
Receiver 175×42×27,mm
Whole set 270×165×45,mm
Weight Emitter 0.060kg
Receiver 0.072kg
Whole set 0.420kg

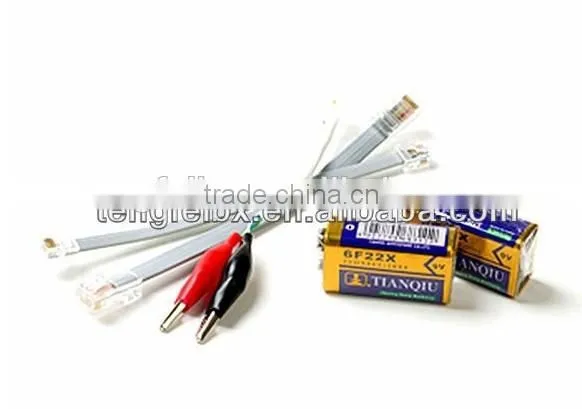

Packing List:
1. Emitter *1 6. Cable with crocodile clamp *1
2. Receiver *1 7. RJ45 network cable *1
3. 9V battery *2s 8. Instruction manual *1
4. Earphone *1 9. Toolkit *1
5. RJ11 telephone cable *1 10.Color box *1
Cable tracker user manual :
1.Connect the emitter and the metal wire to be found with an alligator clip.
2.Move the function selector function of the emitter to "SCAN",then the wire finding indicator "STATUS" will be on,indicating the normal work of the device.
3.Press down the inching button of the receiver and use the probe of the receiver to check the necessary target cable.
1.Insert the RJ45 plug on both ends of the network cable into the corresponding port of the emitter and the receiver.
2.Move the function selector switch of the emitter to "TEST",then the testing indicator "VERIFY"will be on,indicating that the emitter works normally.
3.According to the 18 wire sequence indicators,determine such characteristics as short circuit,broken circuit,open circuit,crossing and so on.
1.Directly insert the phone cable with modular plug into the RJ11 port of the phone cable port.
2.Move the function selector function of the emitter to "SCAN",Then the wire finding indicator "STATUS"will be on.Indicating the normal work of the device.
3.Press down the inching button of the receiver and use the probe of the receiver to check the necessary target cable.
Tengfei Cable Tracker Features:
Low Voltage Hinting Function:
Move the function selector switch of the emitter to the "SCAN" position,When the cell voltage is below 6.0V,The STATUS indicator and the VERIFY indicator
of the emitter can flash at the same time.

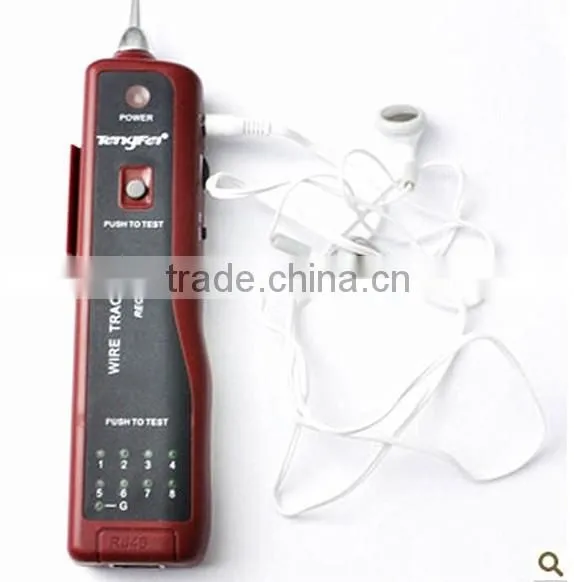

Headset Function:
In a noisy environment,you may put on your headset to operate the device to avoid external interference.
Illuminating Lamp Function:
At night or in a dark environment,you may move the illuminating lamp switch,then the lamp will be on,if it is convenient for your work,you may lock the inching button.
Volume Adjustment Function:
In wire tracking,you may turn the volume knob on the receiver until the volume becomes proper.
Energy-Saving:
Light-touch switch,automatic switch off in automatic time delay,the continuous service life of the cell is above 50h.
Contact now for latest price!!!
