DIY neon decorations custom neon sign equipment
Specification
1. Dimensions (W x H) : Cutomized as per your request
2. Transparent cable (from LED sign) : Approx. 3m long
3. A/C Cord ( from transformer): Approx. 1.5m long
4. Power plug pin : 2-pin or 3-pin
5. LED Neon Flex Size : Mini size (9mmx23mm) or Standard size (12mmx27mm)
6. LED Neon Flex jacket : Milky white jacket or Colored jacket
7. LED Colors: Red, Blue, Green, yellow, Orange, white, warm white, pink, lemon, purple
8. Optional back board : clear/black acrylic panel ; Wooden panel ; Aluminium-plastic panel.

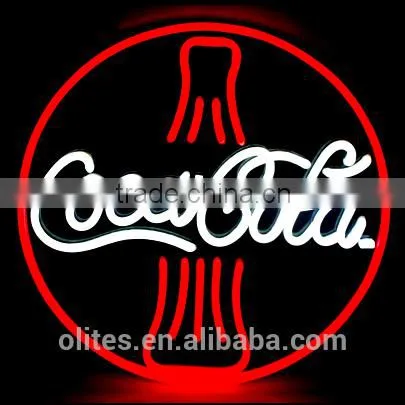

Tips, widely application, neon sign/ logo, for hotel, restaurant, bar, road. park, etc, do as you like. We can design it for you or send us your design picture, you can also DO IT BY YOURSELF.
Led Neon Sign Flex Shape : Domed Shape & Flat Shape
Flat Mini Led Neon Flex Specification:
|
|
|
|
| Model | OL-M-NF-240V/120V/24V/12V | |
| Volt. | AC240V/AC120V/DC24V/DC12V | |
| Cut Length | 6LEDS/12LEDs/42LEDs/84LEDs | |
| LED Type | SMD2835 | |
| LED Qty | 84LEDs/m | |
| Power | 9W/m | |
| IP Grade | IP65/IP66/IP68 | |
| Size | 11.5x18mm | |
| Color | R/G/B/IB/Y/GY/W/WW/P | |
| Skin Color | Milk white/Color Jacket/Crystal | |
| Warranty | 2 years | |
| Lifespan | 50000hours | |
| Material | Anti-UV PVC | |
| Working condition | Indoor or outdoor use: - 20°~ +60°C | |
| Roll Length | 60m/roll | |
| Carton size | 36x36x17.5cm | |
| G.W | 17Kgs |
|

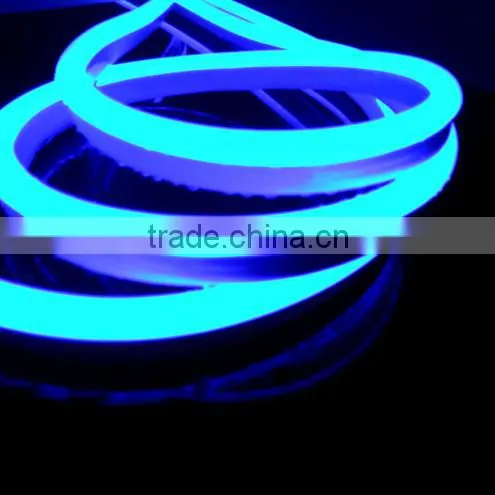

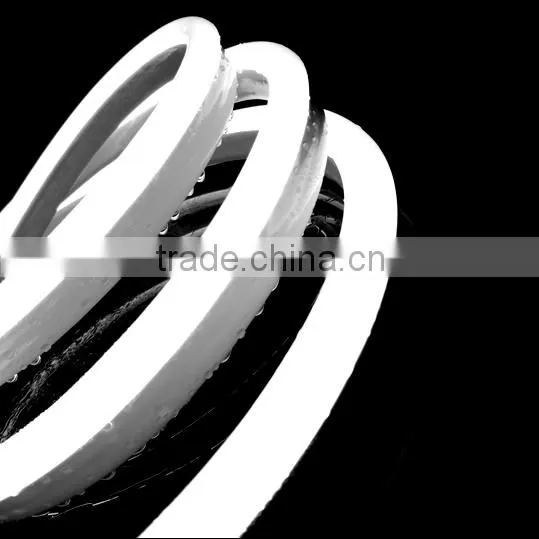

Detailed pictures for the LED neon light
Features for the LED neon sign from Matt co,ltd.
Led Neon Flex _ Instruction
* Use a heat gun to shrink the tubing, heat it evenly, until it 's snug to led neon flex and the edges are slightly beading from glue
Guangzhou Matt Electrical Lighting Co., Ltd. is a professional LED Neon Flex manufacturer which integrates R&D, production, marketing etc service. Since our company's foundation, we've been working for LED lighting research and popularization. After years' development, our company has formed a complete set of standard systems in management, technology, quality and service. With over 6 years expenrience, we are confident to provide excellent quality and service to customers.
Led Neon light Certificates :
1. How often can led strip be cut ?
- AC240V _ cut intervals : 0.858m ; AC120V _ cut intervals : 0.429m
- DC24V _ cut intervals : 0.143m ; DC12V _ cut intervals : 0.072m
( Tips, there're printed cutting marks on led neon flex, easy to cut. )
2. Max run length ?
- 240V /120V _ one power cable could load 50m in one continous line.
( Tips,240V/120V , no need LED transformer, there's one small power convertor on power cable to convert AC to DC)
- DC24V _ max. run length is 20m powered from one end ; 40m powered from both ends.
- DC12V _ max. run length is 10m powered from one end ; 20m powered from both ends.
( Tips, if running too many meters, it will cause the voltage drop, which will be cause the different brightness and shortage life of the LEDs and damage the transformer. )
3. The difference, milky white or colored - PVC skin ?
- The color with colored PVC skin looks _ deeper.
( Tips, Colored PVC skin _ red, blue, green, yellow , orange , pink )
- The color with milky white PVC skin looks _ slightly brighter.
4. Minimum bending radius ?
- Domed-shape LED Strip _ R 40mm ( sideways bending )
- Flat mini LED Strip _ R 20mm ( sideways bending )
5. Lead time ?
- Normal lead time : around 5-7 working days
6. Minimum order quantity ?
- One meter
7. what is the color tempeture and wavelength of your lights?
- Red: 620nm-625nm
- Orange: 600nm-610nm
- Yellow: 587nm-590nm
- Blue 460nm-465nm
- Green: 515nm-520nm
- cool white: 6000-6500k 7000-7500k
- Natural White: 4000-4500k 4500k-5500k
- Warm whtie: 2500k-2800k 2800k-3200k 2200k-2300k 2800k-3500k
1) Special packing can be customized like colored boardcards
We have 3.5m/box,10m/roll,20m/roll and 50m/roll
2) Special length can be packing with different size reel
3) Standard packing is 50m per roll, weight : 23.5 Kg
4) Strong protection for long distance shipment by Express or sea container
Warmly welcome to visit us at any time, any questions feel free to contact us.
Skype: ledsunshine
