Automatic Grain Bin Production Line
- 6 Set / Sets per Month
- shanghai/qingdao/ningbo
- T/T D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | FSM | Model Number: | FSM-0118 |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

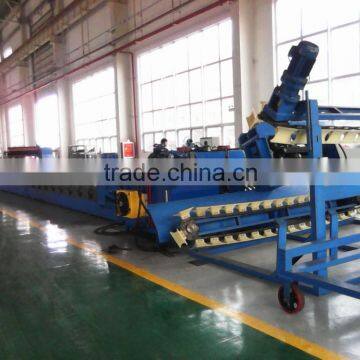

Grain Bin production line
This line includes hydraulic decoiler with coil car, guide, forming, punching, curving, cutting, simple stacker.
Material feeding width: max 1250mm, Q235, max thickness: 2mm.
1.Hydraulic Decoiler with coil car
Max feeding width: 300-1250mm
Max loading capacity: 10T
Max coil diameter: 1500mm
Inner coil diameter: 460-560mm
2.Main Forming machine:
3.Incl. steel plate feeding and guide, manual adjusting centering, roll forming.
Preciseness of single wave height and distance: ± 2mm
Plate after forming, plate surface and edge smooth, no obvious scratch.
Forming station: 20 stations in total (16 stations, 2 stations for reshaping, first station roller has feeding function, two ends rollers has guiding function) , roller material GCr15.
Motor:2 sets, 15kw each.
Speed: 6-15mm/min including punching, not including cutting.
Machine structure: Stand column and gearbox driving for each stations
Control: by PLC Taiwan Delta, touch screen Chinese brand, with remote control.
4.Punching part:
Non-stop tracking punching
Servo motor 5.5kw, encoder, ball screw transmission
Hydraulic station by China
Punching preciseness:
Hole: +0.3mm;
hole distance (width direction): ±1mm
hole distance (length direction): ±2mm
Screw hole: smooth, shape good
Punching die: Cr12MoV material, heat treatment, 60-62HRC.
One set of punching head with one line.
5.Curving machine
Curving way: three roller curving
Feeding width: 1500mm
Speed: the same speed as main forming machine.
Max curving diameter: 2m.
Structure: stand column.
6.Cutting part:
Share hydraulic station with punching part.
Cutting way: hydraulic cutting, cutting angle adjustable, can match with curving.
Length accuracy: ±2mm;
Cutting blade: Cr12MoV, heat treatment, 60-62HRC
7.Stacker
After cutting, finished product output by stacker.
Automatic conveying, stacking by hand.
Price Details pls contact to sales
Thanks
(^_^)(^_^)
Contact Us
- Wuxi Friendship Machinery Co., Ltd.
- Contact nameJian Wang
- Phone0086-510-82234202
- Address10#, Jingshi road, Xibei Town Wuxi,Jiangsu
