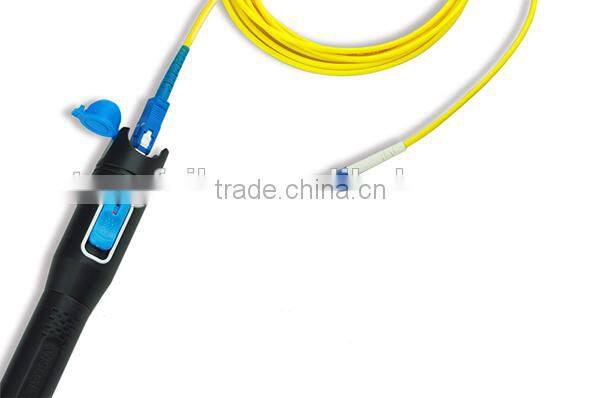

Product Name: TF-ZL-210-1 Fiber Optic Visual Fault Locator/ Fiber Break Checker
650nm visual fault locator is used to identify fiber and locate faults of SM or MM fiber ,it is a helpful assiatant
to dead zone of OTDR,it also a basic maintenance tool for fiber network.LAN,ATM fiber system.
Function and Features
---Support CW and 2Hz modulation work mode.
---Solid design:use special laser and design to avoid damage when dropping on the floor.
---Long working hours:use effective laser drive ciruit to ensure 1mW/650nm locator can work more than 60 hours continuously.
---Stable power output:use special laser driver circuit,which can ensure stable power output in the low battery.
---2.5mm universal adapter:use 2.5mm universal adapter,can match SC/LC adapters.
Specification
| Wavelength | 650nm ± 10nm |
| Light source | FP-LD laser |
| Output power | 1mV,3mV,5mV,10Mv,15mV,20Mv(optional) |
| Connector | 2.5mm universal adapter |
| Working mode | CW or 2Hz modulation |
| Operating temperture | 0~+40°c |
| Storage tempreture | -25~+70°c |
| Power | 2pcs AA battery |
| Working hours | ≥60(1mW) |
| weight | 100g(excluding batteries) |
| Dimension(mm) | Φ:23;L:207 |
Operation
---Put 2pcs AA battery into the locator,and then press "PWR"key on the bottom of the tester to switch on it.The locator will Switch
between the continuous laser and 2Hz.If the indicator is on;the laser outputs xontinuous 650nm red laser.
---Press "PWR'again,the laser and indicator are blinking at the same time;the frequency is about 2Hz,which is convenient to check line faults.And the press"PWR"again to switch to continuous laser mode.
