Home > Manufacturing & Processing Machinery > Building Material Making Machinery > Steel Frame Machine > Standing Seam Metal Roof Machine Making Large Span Roof
US$ 16,000 - 18,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Work Pressure:
normal pressures
Production Capacity:
100%
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Corrugated Sheet Metal Roof Making MachineUS$ 20,000 - 22,000MOQ: 1 Set -
Steel Galzed Tile Punching Machine,Steel Roof Punching MachineUS$ 24,000 - 30,000MOQ: 1 Set
-
PLC Automatic Roof Crimp Curving MachineUS$ 12,000 - 15,000MOQ: 1 Set
-
Standing Seam Roll Forming Machine , Structure Building Decorative Roof PanelUS$ 30,000 - 32,000MOQ: 1 Set
-
Barge Machine ,Angle Roll Forming Machine Cold Roll Forming MachineUS$ 22,000 - 25,000MOQ: 1 Set
Condition
New
Work Pressure
normal pressures
Production Capacity
100%
Place of Origin
Jiangsu, China
Brand Name
FSM
Model Number
FSM064
Voltage
380v/410v
Power(W)
5.5kw
Dimension(L*W*H)
8*1.4*1.0M
Weight
6000kgs
Certification
ce
Warranty
12months
After-sales Service Provided
Engineers available to service machinery overseas
Standing Seam Metal Roof Machine
Making Large Span Roof
Application
This type of sheet-standing seam metal roof machine can be widely used in plant, house, storage and simple
steel roof and wall. Especially used in large span roof .It has advantage of pretty appearance, durable using and so on.
Ⅰ:Composition of machine
| Roll forming main machine | 1 unit |
| Manual de-coiler | 1 unit |
| Control panel | 1 unit |
| Hydraulic station | 1 unit |
| Manual out table | 2 unit |
Ⅱ: Details of each composition
| Item | Standing Seam Metal Roof Machine | |
| Coil Material | Thickness | 0.4-0.8mm |
| Coil width | 475/578/680 | |
| Yield Strength | 250-350 Mpa | |
| Material | PPGI, Color Steel, GI. | |
| Decoiler / Uncoiler | Decoiler Type | Manual or Hydraulic or Auto Type |
| Coil Width | Max. 1250mm | |
| I.D | 508-610mm | |
| O.D | Max. 1500mm | |
| Roll Forming Machine | Forming Stations | 10Stations ( Depend on Profiles ) |
| Roller material | 45# steel, surface coated with 0.05mm hard chrome | |
| Diameter of shaft | 76mm | |
| Shaft material | High grade 45# steel | |
| Drive type | Chain transmission | |
| Forming speed | 12m/min | |
| Main power | 5.5KW | |
| Cutting | Cutting type | Hydraulic cutting |
| Cutting Die Material | Cr12Mov steel, HRC58-62 | |
| Cutting power | 3KW | |
| CuttingTolerance | 10m+/-1.5mm | |
| Encoder | OMRON Brand | |
| Electrical control | PLC | PANASONIC Brand |
| Inverter | YASKAWA Brand | |
| Touch screen | PANASONICE | |
| Operation type | Touch screen & Button | |
| Hydraulic Station | Hydraulic station | Famous Chinese brand |
| Runout Table | Table type | Simple nonpower type |
| Function | To support the finished panels | |

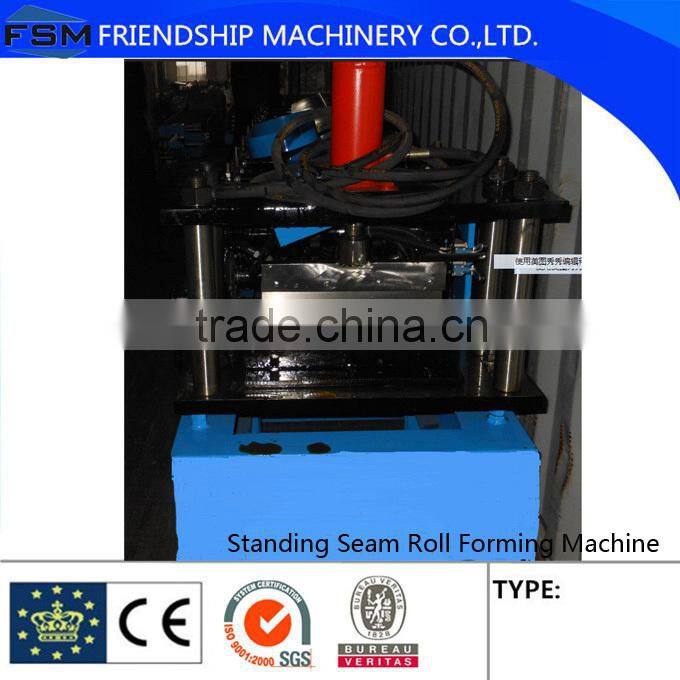

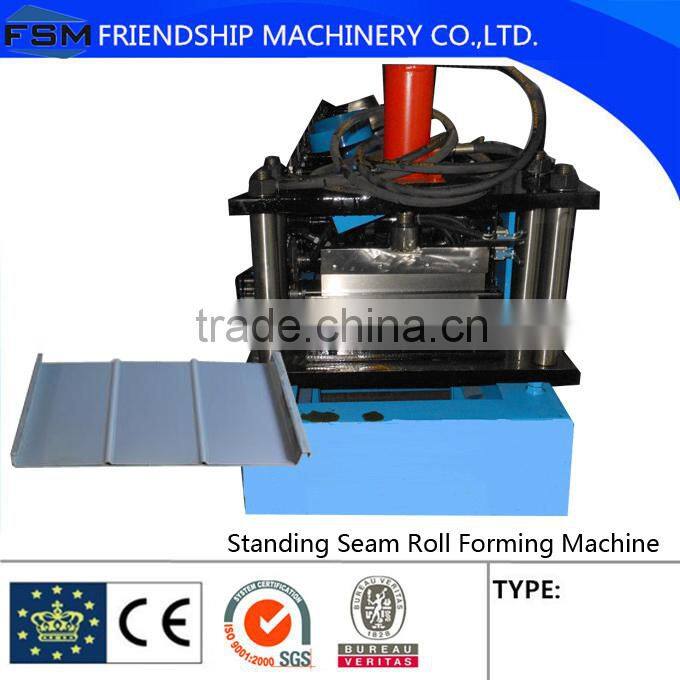

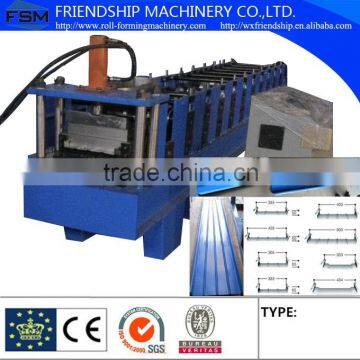

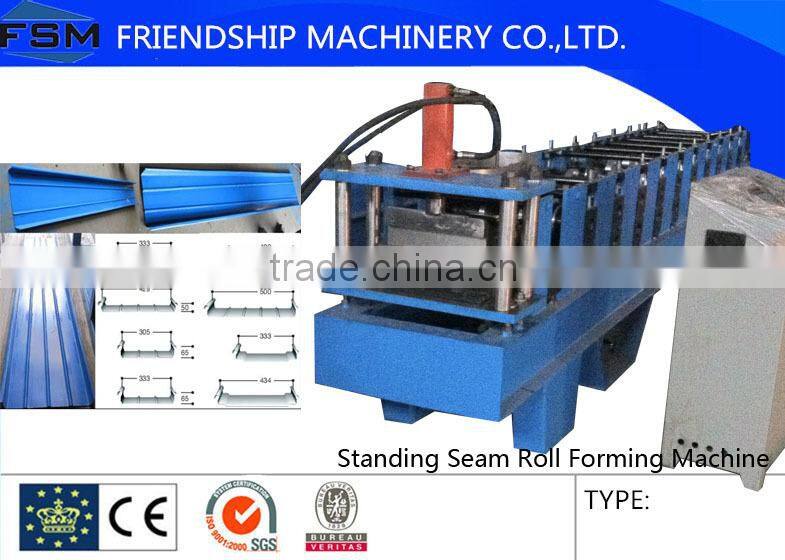

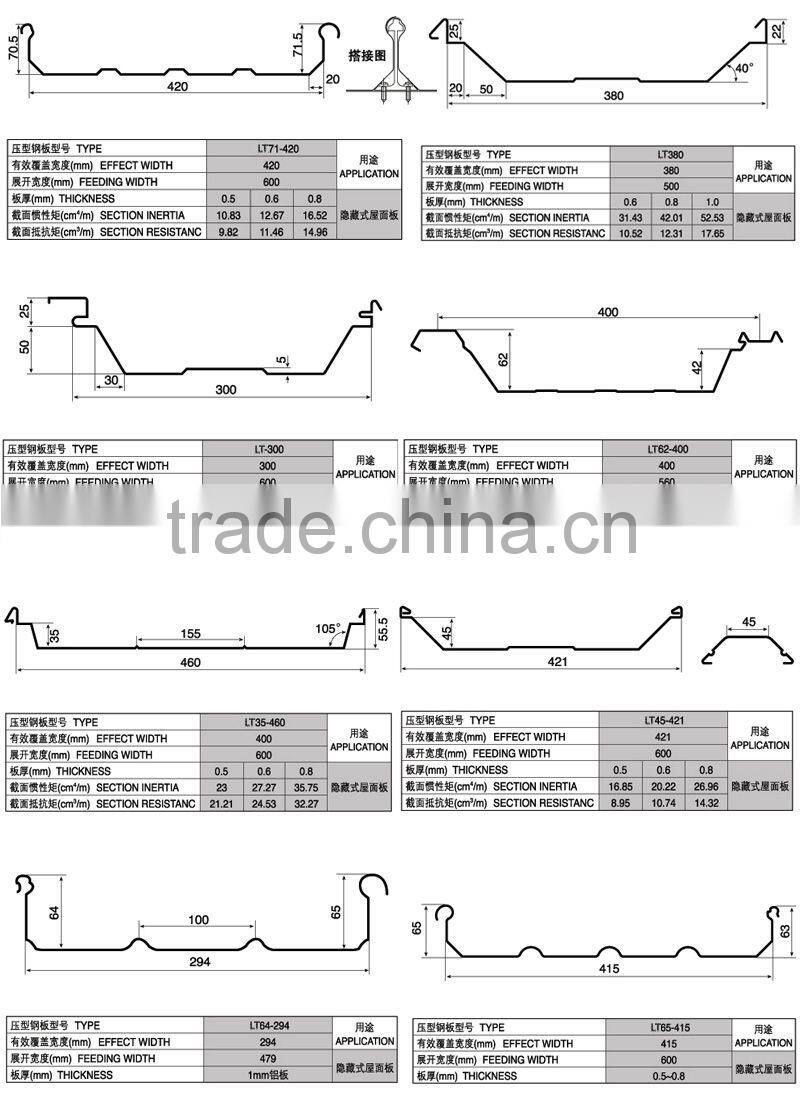

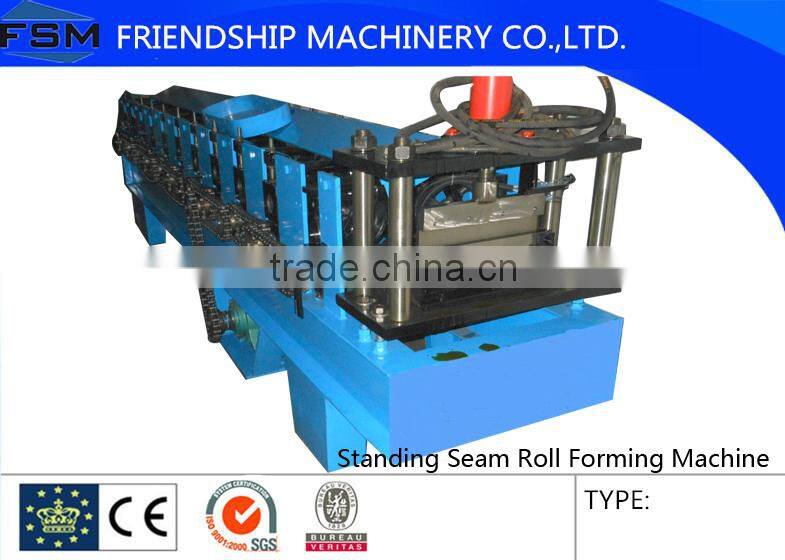

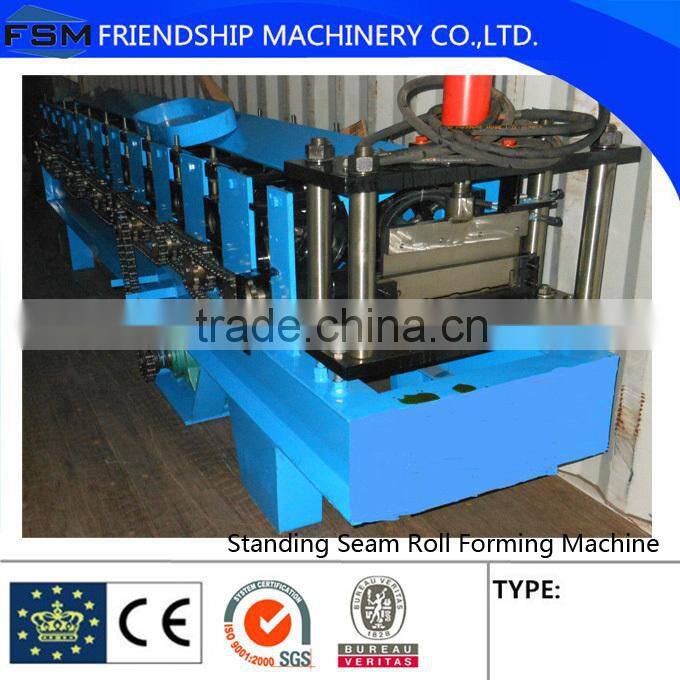

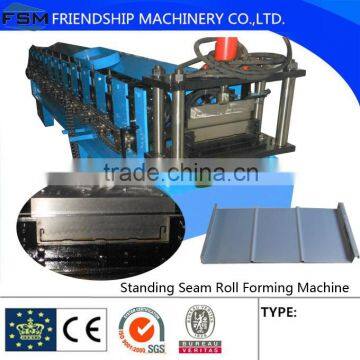

III .Pics For Your Reference
More detail pls contact sales
standing seam roof panel roll forming machine/ steel bemo/ tapered metal roofing
panel cladding roll forming machine
Other machine we manufacture
Cold roll forming mahcine, color steel roll forming machine,roof and wall panel machine,decking floor roll forming machine,floor decing forming mahcine, stud and track roll forming machine, Z and C purlin machine, highway guardrail roll forming machine,cable tray machine, and so on.
