Home > Products > 360 round led neon flex > 220V 110V 24V 12V led neon rope light
220V 110V 24V 12V led neon rope light
- 30000 Meter / Meters per Month
- Guangzhou
- T/T Credit Card PayPal
Product Details
LED Light Source: | 2835 SMD LED | Input Voltage(V): | 24v | Lamp Power: | 9 |
Lamp Luminous Flux(lm): | 800 | Lamp Luminous Efficiency(lm/w): | 80 | Color Temperature(CCT): | Cool White |
Working Temperature(℃): | -20, 60 | Working Lifetime(Hour): | 50000 | Lamp Body Material: | PVC |
IP Rating: | IP65 | Certification: | CE, EMC, LVD | Emitting Color: | White |
Place of Origin: | Guangdong, China | Brand Name: | MATT | Model Number: | OL-NFS-24V |
Packaging Details
LED neon rope light
1. 50m /roll/carton;
2. G.W:23.5kgs/carton;
3. Carton size : 36x36x30cm
Product Description
LED NEON FLEX - HIGHLIGHTS :
1). 2 X Pure copper wire (0.75 sq . m . measure) as conducting wire, reducing line loss and volt. drop , more stable & safer.
2). Optically modified PVC extrusion : UV stable ; and PVC with heat/cool stabilizer, extremely high /low temp. resistant .
3). Complete kit including adapters, connectors & mounting clips enables easy installation.
4). Flexible, bendable, unbreakable & cuttable (cut at cutting marks).
5). SMD 2835 LED - 0.2W/LED (60mA) - Super Bright
6). No cold weather start problems or color shift.
7). Vivid NEON lighting effect, uniform light, no dots.
8). Waterproof IP65 , ok for indoor / outdoor use.
9). Eco-friendly, energy-effcient, durable, long-life.
LED NEON FLEX : DOMED SHAPE & FLAT SHAPE

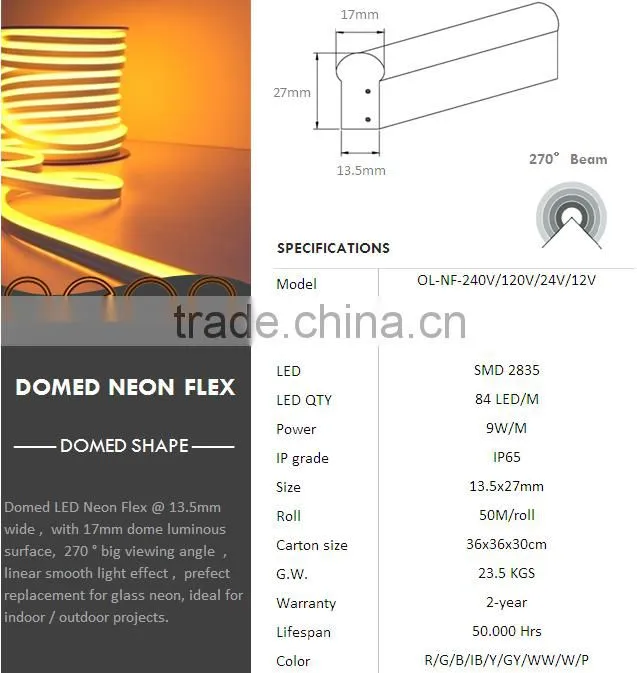

1). Domed-shape _ size : 13.5x27mm
More details >>>
Model | OL-NF-240V | OL-NF-120V | OL-NF-24V | OL-NF-12V |
Volt. | 240V AC | 120V AC | 24V DC | 12V DC |
Mini Cut length | 0.858 m | 0.429 m | 0.143 m | 0.0715 m |
Light source | 2835 SMD LED ( 0.2W / LED ) | |||
LED QTY | 84 LED / M | |||
Power | 9 W/M | |||
Dimension | 13.5mm x 27 mm | |||
Beam angle | 270 ° | |||
Colors | red , green, ice blue, blue, golden yellow, yellow, warm white, cool white, pink | |||
PVC Jacket | Milky white jacketed / Colored jacketed | |||
Conducting Wire | Pure copper @ 0.75 square meters measure | |||
PVC Material | UV-resistant materials, ultraviolet-proof | |||
PVC stabilizer | heat / cool stabilizer ; high / low-temp. resistance | |||
Mini Bend Radius | R 40mm ( sideways bending) | |||
Operating Temp. | 0°~ +45°C | |||
Ambient Temp. | - 20°~ +45°C | |||
IP grade | Waterproof IP65 | |||
LED lifespan | 50,000 hours + | |||
Warranty | 2 years | |||
Package | 50m/ roll /carton ; carton size: 36*36*30cm ; G.W. : 23.5KGS |

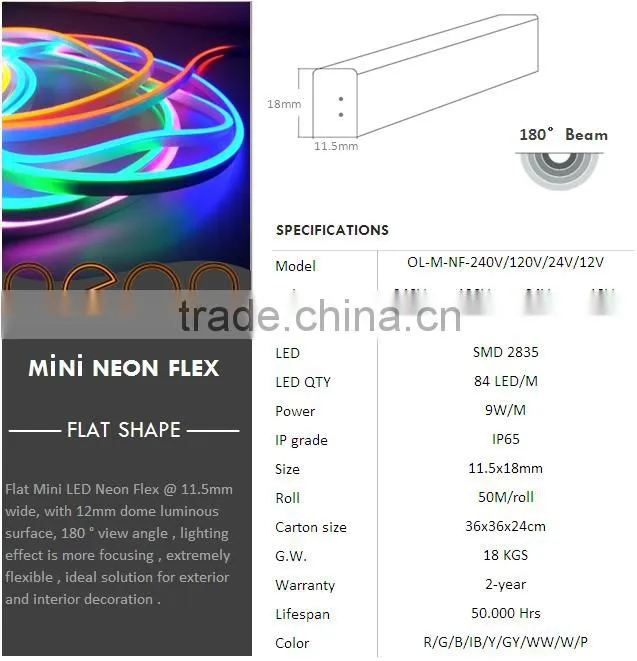

2). Flat shape _ mini size : 11.5x18 mm
More details >>>
Model | OL-M-NF-240V | OL-M-NF-120V | OL-M-NF-24V | OL-M-NF-12V |
Volt. | 240V AC | 120V AC | 24V DC | 12V DC |
Mini Cut length | 0.858 m | 0.429 m | 0.143 m | 0.0715 m |
Light source | 2835 SMD LED ( 0.2W / LED ) | |||
LED QTY | 84 LED / M | |||
Power | 9 W/M | |||
Dimension | 11.5x18 mm | |||
Beam angle | 180 ° | |||
Colors | red , green, ice blue, blue, golden yellow, yellow, warm white, cool white, pink | |||
PVC Jacket | Milky white jacketed / Colored jacketed | |||
Conducting Wire | Pure copper @ 0.75 square meter measure | |||
PVC Material | UV-resistant materials, ultraviolet-proof | |||
PVC stabilizer | heat / cool stabilizer ; high / low-temp. resistance | |||
Mini Bend Radius | R 40mm ( sideways bending) | |||
Operating Temp. | 0°~ +45°C | |||
Ambient Temp. | - 20°~ +45°C | |||
IP grade | Waterproof IP65 | |||
LED lifespan | 50,000 hours + | |||
Warranty | 2 years | |||
Package | 50m/ roll /carton ; carton size: 36*36*17.5cm ; G.W. : 17KGS |
LED NEON FLEX _ 9 COLORS :
LED NEON FLEX _ ACCESSORIES :
LED NEON FLEX _ 50m / roll / carton :
LED NEON FLEX _ INSTRUCTION
* Use a heat gun to shrink the tubing, heat it evenly, until it 's snug to led neon flex and the edges are slightly beading from glue!
Loading Length :
Installation Precautions :
1. Do not puncture, cut, shorten, or splice LED Neon Flex outside of the designated cutting marks.
2. Do not roll out LED Neon Flex on rough surfaces and over sharp corners. This will scratch the PVC optic.
3. Do not use LED Neon Flex if outer jacket is damaged, loose connections, or if the wire is visible without insulation. Inspect LED Neon Flex periodically for damage.
4. Do not secure LED Neon Flex with staples, nails, or like means that might damage the insulation PVC material.
5. Do not install LED Neon Flex on/in places where it is subject to continuous flexing.
6. Do not operate/run LED Neon Flex in temperatures exceeding +45°C.
7. Do not operate AC240V+ / AC120V+ LED Neon Flex on circuits that do not have proper surge suppression or protection. High Voltage spikes will damage the LEDs.
8. Do not operate LED Neon Flex over the specified voltage or LED life degradation will be greatly increased.
9. Do not leave any part of the LED Neon Flex unsecured. Movement over time from weather can cause damage from continuous movement.
10. Do not cut LED neon flex when it's powered.
11. Do not over extend the mini Bend Radius Lateral of 40mm.
Our factory profile :
Guangzhou Matt Electrical Lighting Co., Ltd. is a professional LED Neon Flex manufacturer which integrates R&D, production, marketing etc service. Since our company's foundation, we've been working for LED lighting research and popularization. After years' development, our company has formed a complete set of standard systems in management, technology, quality and service. With over 6 years expenrience, we are confident to provide excellent quality and service to customers.
LED NEON FLEX _ CERTIFICATES :
LED NEON FLEX _ APPLICATIONS :
- Path & contour marking _ Elegant interior decoration _ Backlighting for larger size ad-signs
- Landscape outlines _ Signal lighting _ Swimming pool _ Car & motorcycle decorative lighting
- Architectural decorative lighting _ Archway Lighting _ Canopy Lighting _ Bridge edge lighting
- Amusement park lighting _ theater lighting _ Emergency hallway lighting _ Building outlines
- Auditorium walkway _ Stairway accent lighting _ Emergency Exit path lighting _ Cove lighting
FAQ :
1. How often can led neon flex be cut ?
- AC240V _ cut intervals : 0.858m ; AC120V _ cut intervals : 0.429m
- DC24V _ cut intervals : 0.143m ; DC12V _ cut intervals : 0.072m
( There're printed cutting marks on led neon flex, easy to cut. )

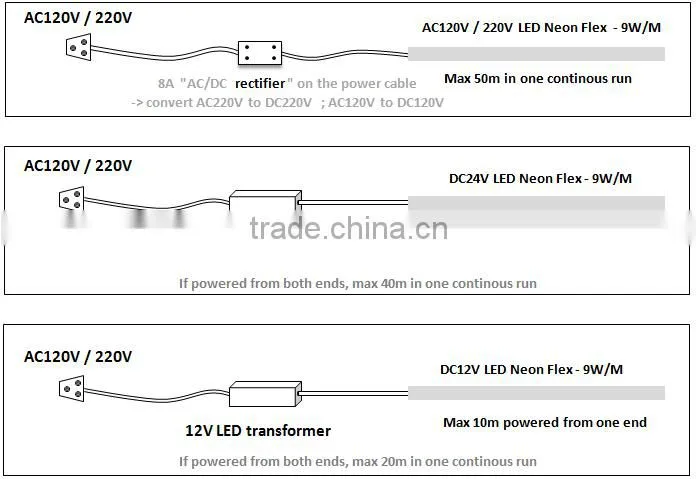

2. Max. run length ?
- 240V /120V _ one power cable could load 50m in one continous line.
( 240V/120V , no need LED transformer, there's one small power convertor on power cable to convert AC to DC)
- DC24V _ max. run length is 20m powered from one end ; 40m powered from both ends.
- DC12V _ max. run length is 10m powered from one end ; 20m powered from both ends.
( If running too many meters, it will cause the volt. drop, shorten the life of the LEDs and may damage the transformer. )
3. The difference : milky white or colored - PVC skin ?
- The color with colored PVC skin looks _ deeper.
( Colored PVC skin _ red, blue, green, yellow , orange , pink )
- The color with milky white PVC skin looks _ slightly brighter.
4. Minimum bending radius ?
- Domed-shape LED neon flex _ R 40mm ( sideways bending )
- Flat mini LED neon flex _ R 20mm ( sideways bending )
5. Lead time ?
- Normal lead time : around 5-7 working days
6. Minimum order quantity ?
- One meter
Any questions ^_^ feel free to let me know
Company Profile
Guangzhou Matt Electrical Lighting Co., Ltd is a professional LED Lighting manufacturer which integrates R&D, production, marketing and service. Since our company was founded, we have been working for LED lighting research and popularization. After years of development, our company has formed a complete set of standard systems in management, technology, quality and service.
Our main products including DomedLED Neon Flex ,Flat Mini LED Neon Flex,RGB LED Neon Flex,pixel LED Neon Flex,Topview LED Neon Flex and Round LED Neon Flex,custom led neon sign,LED Flood Light series,LED Street Light series and LED High Bay light series etc.
All of them are CE& ROHS Approved,products are exported to many countries and regions, such as Europe, the United States, Japan, the Middle East, Oceania, and many other countries and regions around the world.
"Based on LED optoelectronics industry, to build up international brands" is the goal of OLITES. Our company will continue to expand the business scope and improve the management system based on good faith, mutual benefits and good quality. We hope to establish strategic partnership with our clients. With the continuous development and growth of OLITES, we look forward to working with the majority of businessmen from at home and abroad to create brilliance!
