Home > Products > 360 round led neon flex > European norm tubo a round led neon flexible tube
European norm tubo a round led neon flexible tube
- 30000 Meter / Meters per Month
- FOB Guangzhou
- T/T Credit Card PayPal
Product Details
LED Light Source: | SMD3528 | Input Voltage(V): | 240V | Lamp Power: | 3.9 |
Lamp Luminous Flux(lm): | 1000 | Lamp Luminous Efficiency(lm/w): | 80 | Color Temperature(CCT): | Other, Yellow |
Working Temperature(℃): | -20, +45 | Working Lifetime(Hour): | 50000 | Lamp Body Material: | PVC |
IP Rating: | IP68 | Certification: | CE, EMC, LVD | Emitting Color: | RGB |
Place of Origin: | Guangdong, China | Brand Name: | MATT | Model Number: | OL-NFS-240-Y |
Packaging Details
-50meters/carton,
-Carton size: 36x36x30cm
-Gross weight : 22-23KGS per carton ;
-Standard carton package for round led neon flexible tube
Product Description
Led Neon Flex is comprised of solid-state Light Emitting Diodes (LEDs) in series solder on Flexible PCB housed by an inner plastic extrusion core. the light source has SMD2835 and SMD5050 and 3528, An UV stable outer plastic jacket further protects the inner core. The plastic jacket will be the translucent colored and the LED will be Red, Orange, Blue, Yellow, Green and White. Base our patented technical, we produce the Neon Flex with a continuously color linear effect as well as Glass Neon.
Round Led Neon Flex Specification:
Model | OL-NFS- 240V/120V/24V/12V | |
Volt. | AC240V/AC120V/DC24V/DC12V | |
Cut Length | 1.22m/ 0.6096m/ 0.1016m/ 0.0381m | |
LED Type | SMD3528 | |
LED Qty | 80LEDs/m | |
Power | 3.9w/m, 5.3 w/m, 4.8 w/m, 6.2 w/m | |
IP Grade | IP68 | |

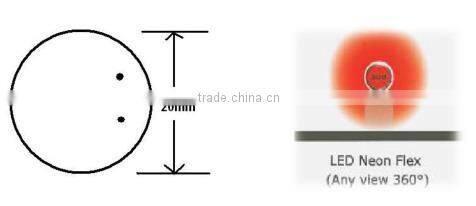

Dimension | Dia 20mm | |
Beam | 360 degrees | |
Color | R/O/G/B/Y/LY/GY/W/WW/P/PP | |
Warranty | 2 years | |
Lifespan | 50,000 hours | |
Roll Length | 50m/roll | |
Carton size | 36x36x30cm | |
G.W | 23.5Kgs |

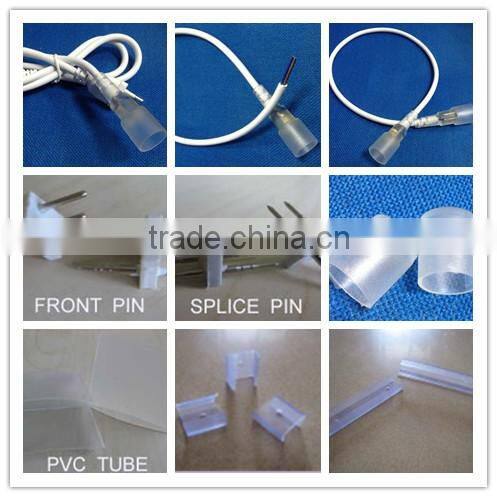

Led Neon Flex-Accessories :
Round LED NEON FLEX

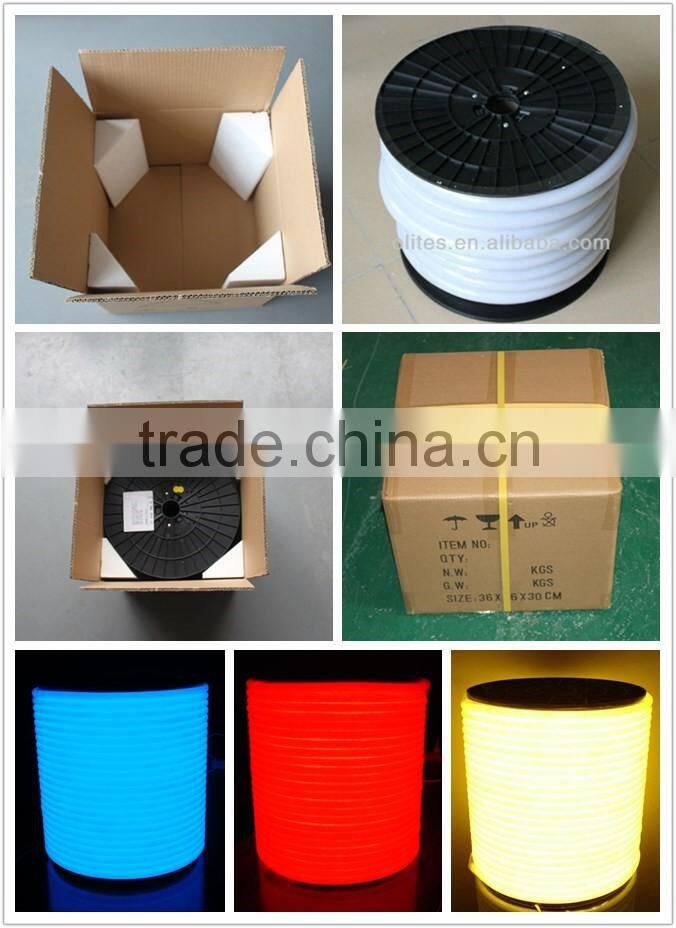

Led Neon Flex - 50m/roll/carton
1. Standard packing is 50m per roll, weight : 23.5 Kg
2. Special length can be packing with different size reel
3. Strong protection for long distance shipment by Express or sea container
4. Special packing can be customized like colored boardcards We have 3.5m/box,10m/roll,20m/roll and 50m/roll
Testing-->Rolling-->Packing
LED NEON FLEX _ INSTRUCTION
* Use a heat gun to shrink the tubing, heat it evenly, until it 's snug to led neon flex and the edges are slightly beading from glue!
♥Our Promise: 1. Provide solutions and high quality products.
2. Streamline the buying and paying processes.
3. Protection of your sale area, ideas of design and all your private information.
4. Deliver the goods to our customers all over the world with speed and precision.
♥Our Service: 1. Provide strict quality check for each part, each process before export.
2. Provide professional person to communicate with you before the order.
3. Send extra accessories to help fix the lamp for free international express.
4. Provide optimum system solution based on each client’s specific requirement.
5. If accessories can’t solve the problem, we will send you the replacement lamp directly.
Guangzhou Matt Electrical Lighting Co., Ltd. is a professional LED Neon Flex manufacturer which integrates R&D, production, marketing etc service. Since our company's foundation, we've been working for LED lighting research and popularization. After years' development, our company has formed a complete set of standard systems in management, technology, quality and service. With over 6 years expenrience, we are confident to provide excellent quality and service to customers.
LED NEON FLEX _ CERTIFICATES
LED NEON FLEX _ APPLICATIONS
- Path & contour marking _ Elegant interior decoration _ Backlighting for larger size ad-signs
- Landscape outlines _ Signal lighting _ Swimming pool _ Car & motorcycle decorative lighting
- Architectural decorative lighting _ Archway Lighting _ Canopy Lighting _ Bridge edge lighting
- Amusement park lighting _ theater lighting _ Emergency hallway lighting _ Building outlines
- Auditorium walkway _ Stairway accent lighting _ Emergency Exit path lighting _ Cove lighting
1. How often can led neon flex be cut?
- AC240V _ cut intervals : 0.858m ; AC120V _ cut intervals : 0.429m
- DC24V _ cut intervals : 0.143m ; DC12V _ cut intervals : 0.072m
( There're printed cutting marks on led neon flex, easy to cut. )
2. Max. run length ?
- 240V /120V _ one power cable could load 50m in one continous line.
( 240V/120V , no need LED transformer, there's one small power convertor on power cable to convert AC to DC)
- DC24V _ max. run length is 20m powered from one end ; 40m powered from both ends.
- DC12V _ max. run length is 10m powered from one end ; 20m powered from both ends.
( If running too many meters, it will cause the volt. drop, shorten the life of the LEDs and may damage the transformer. )
3. The difference : milky white or colored - PVC skin ?
- The color with colored PVC skin looks _ deeper.
( Colored PVC skin _ red, blue, green, yellow , orange , pink )
- The color with milky white PVC skin looks _ slightly brighter.
4. Minimum bending radius ?
- Domed-shape LED neon flex _ R 40mm ( sideways bending )
- Flat mini LED neon flex _ R 20mm ( sideways bending )
5. Lead time ?
- Normal lead time : around 5-7 working days
6. Minimum order quantity ?
- One meter
Contact; Peggy
Tel; 86 20-36674667
Cell; 86 15626447763
Skype ID; ledsunshine
WhatsApp; 86 15626447763
Any questions feel free to contacting us, warmly welcome to visit us at any time.
Company Profile
Guangzhou Matt Electrical Lighting Co., Ltd is a professional LED Lighting manufacturer which integrates R&D, production, marketing and service. Since our company was founded, we have been working for LED lighting research and popularization. After years of development, our company has formed a complete set of standard systems in management, technology, quality and service.
Our main products including DomedLED Neon Flex ,Flat Mini LED Neon Flex,RGB LED Neon Flex,pixel LED Neon Flex,Topview LED Neon Flex and Round LED Neon Flex,custom led neon sign,LED Flood Light series,LED Street Light series and LED High Bay light series etc.
All of them are CE& ROHS Approved,products are exported to many countries and regions, such as Europe, the United States, Japan, the Middle East, Oceania, and many other countries and regions around the world.
"Based on LED optoelectronics industry, to build up international brands" is the goal of OLITES. Our company will continue to expand the business scope and improve the management system based on good faith, mutual benefits and good quality. We hope to establish strategic partnership with our clients. With the continuous development and growth of OLITES, we look forward to working with the majority of businessmen from at home and abroad to create brilliance!
Contact Us
- Guangzhou Matt Electrical Lighting Co., Ltd.
- Contact nameCatherine Law
- Phone86-20-3667 4667
- AddressNo.38, Beiji Street, Longgui, Baiyun District, Guangzhou Guangzhou,Guangdong
