Standing Seam Roof Roll Forming Machine
US$ 18,000 - 20,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Work Pressure:
normal pressures
Production Capacity:
100%
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Steel Roof Standing Seam Roof Roll Forming MachineUS$ 16,000 - 18,000MOQ: 1 Set -
Color Aluminium Profile Roofing Roll Forming MachineUS$ 15,000 - 18,000MOQ: 1 Set
-
Metal Corrugated Profile Roll Forming MachineUS$ 20,000 - 50,000MOQ: 1 Set
-
Aluminium Sheet Rolling Machine With TrailerUS$ 28,000 - 30,000MOQ: 1 Set
-
Steel Profile Roll Forming Machine -Roof DeckUS$ 20,000 - 25,000MOQ: 1 Set
Condition
New
Work Pressure
normal pressures
Production Capacity
100%
Place of Origin
Jiangsu, China
Brand Name
FSM
Model Number
FSM065
Voltage
380v/410v
Power(W)
5.5kw
Dimension(L*W*H)
8*1.4*1.0M
Weight
6000kgs
Certification
ce
Warranty
12months
After-sales Service Provided
Engineers available to service machinery overseas
Steel Standing Seam Roof Roll Forming Machine
Standing seam Roof Roll Forming Machine
Ⅰ:Composition of machine- Standing seam Roof Roll Forming Machine
| Roll forming main machine | 1 unit |
| Manual de-coiler | 1 unit |
| Control panel | 1 unit |
| Hydraulic station | 1 unit |
| Manual out table | 2 unit |
Ⅱ: Details of each composition- Standing seam Roof Roll Forming Machine
| Item | Sheet Roll Forming Machine | |
| Coil Material | Thickness | 0.4-0.8mm |
| Coil width | 475/578/680 | |
| Yield Strength | 250-350 Mpa | |
| Material | PPGI, Color Steel, GI. | |
| Decoiler / Uncoiler | Decoiler Type | Manual or Hydraulic or Auto Type |
| Coil Width | Max. 1250mm | |
| I.D | 508-610mm | |
| O.D | Max. 1500mm | |
| Roll Forming Machine | Forming Stations | 17Stations ( Depend on Profiles ) |
| Roller material | 45# steel, surface coated with 0.05mm hard chrome | |
| Diameter of shaft | 76mm | |
| Shaft material | High grade 45# steel | |
| Drive type | Chain transmission | |
| Forming speed | 12m/min | |
| Main power | 5.5KW | |
| Cutting | Cutting type | Hydraulic cutting |
| Cutting Die Material | Cr12Mov steel, HRC58-62 | |
| Cutting power | 3KW | |
| CuttingTolerance | 10m+/-1.5mm | |
| Encoder | OMRON Brand | |
| Electrical control | PLC | PANASONIC Brand |
| Inverter | YASKAWA Brand | |
| Touch screen | PANASONICE | |
| Operation type | Touch screen & Button | |
| Hydraulic Station | Hydraulic station | Famous Chinese brand |
| Runout Table | Table type | Simple nonpower type |
| Function | To support the finished panels | |

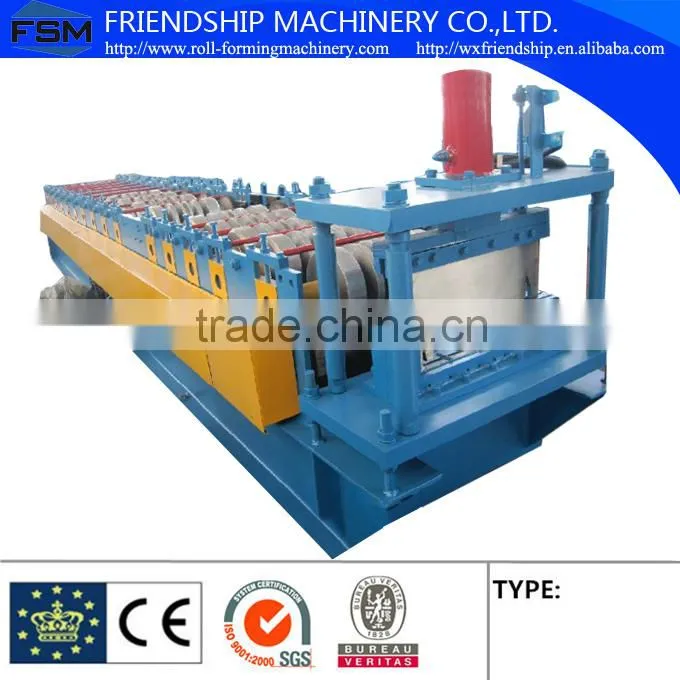

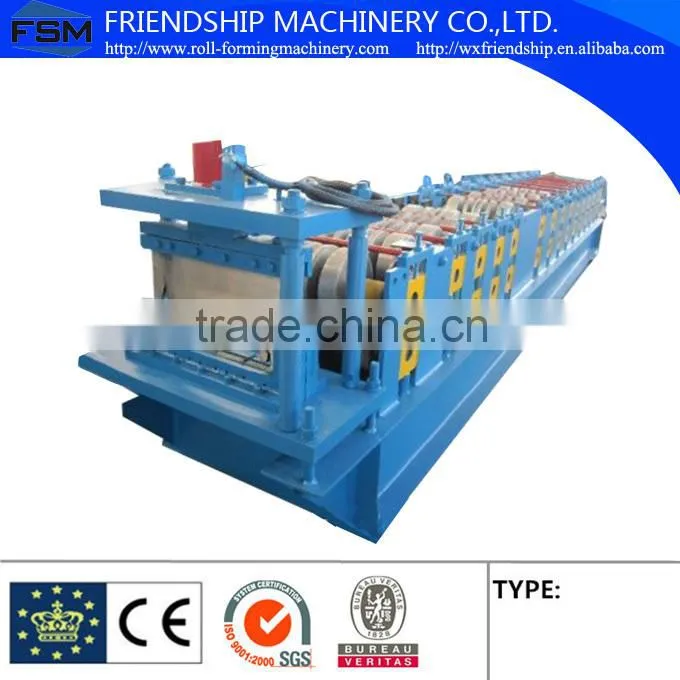

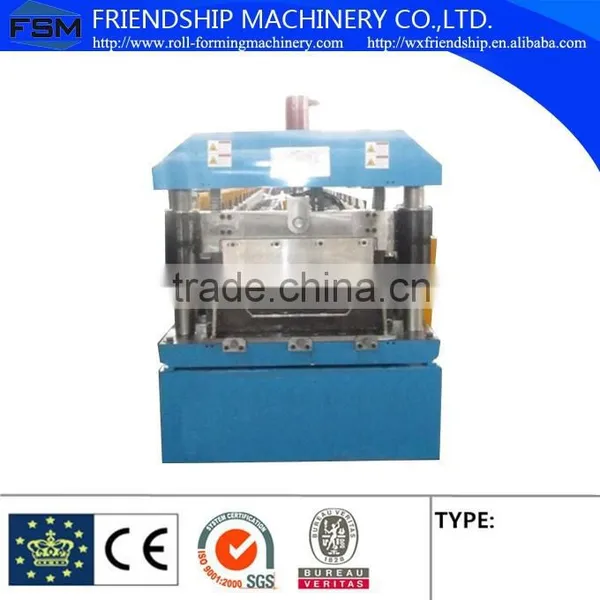

III .Pics For Your Reference- Standing seam Roof Roll Forming Machine

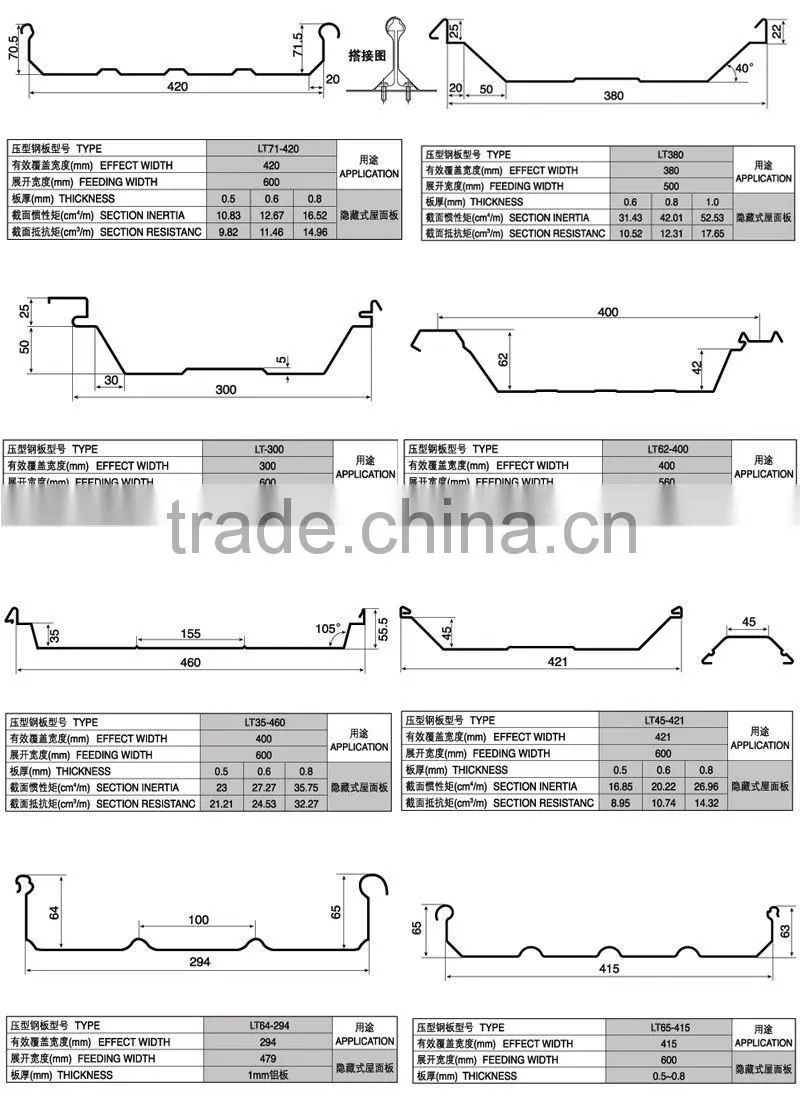

Steel Building Structure Roof Panel, Standing seam Roof Roll Forming Machine
More detail pls contact sales
