SC APC Fiber Optic Fast Connector/quick Assembly Connector/field Assembly Connector

SC APC Fiber Optic Fast Connector/quick Assembly Connector/field Assembly Connector thumbnail-1
SC APC Fiber Optic Fast Connector/quick Assembly Connector/field Assembly Connector thumbnail-2
SC APC Fiber Optic Fast Connector/quick Assembly Connector/field Assembly Connector thumbnail-3
SC APC Fiber Optic Fast Connector/quick Assembly Connector/field Assembly Connector thumbnail-4
SC APC Fiber Optic Fast Connector/quick Assembly Connector/field Assembly Connector thumbnail-5
SC APC Fiber Optic Fast Connector/quick Assembly Connector/field Assembly Connector thumbnail-6

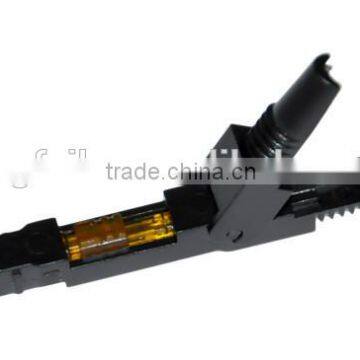

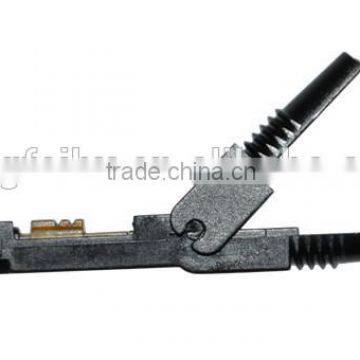

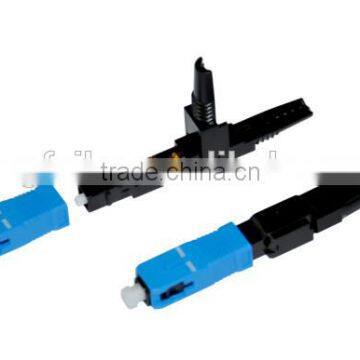

SC APC Fiber Optic Fast Connector/quick Assembly Connector/field Assembly Connector photo-1
SC APC Fiber Optic Fast Connector/quick Assembly Connector/field Assembly Connector photo-2
SC APC Fiber Optic Fast Connector/quick Assembly Connector/field Assembly Connector photo-3
SC APC Fiber Optic Fast Connector/quick Assembly Connector/field Assembly Connector photo-4
SC APC Fiber Optic Fast Connector/quick Assembly Connector/field Assembly Connector photo-5
SC APC Fiber Optic Fast Connector/quick Assembly Connector/field Assembly Connector photo-6
US$ 0.199 - 1.25 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Tengfei
Model Number:
TF-LSLJZ-SC
Contact Supplier Request Quote Chat Now
Shenzhen Jixiang Tengfei Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Tengfei
Model Number TF-LSLJZ-SC

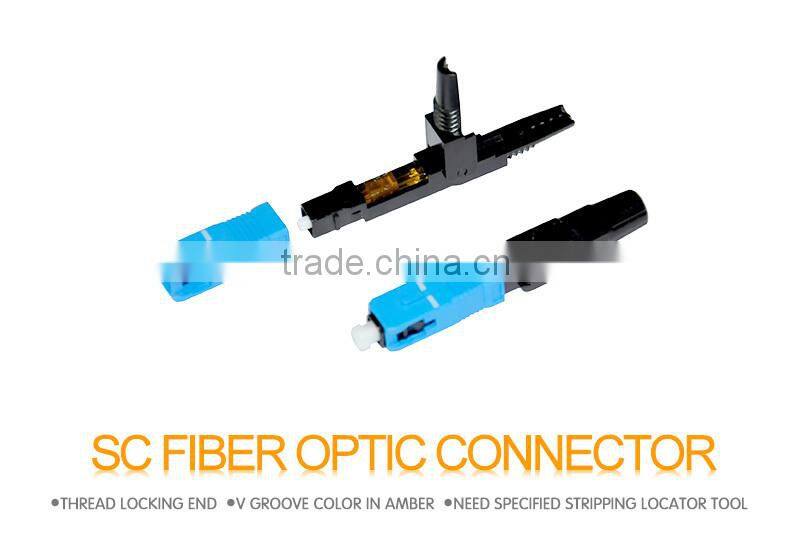

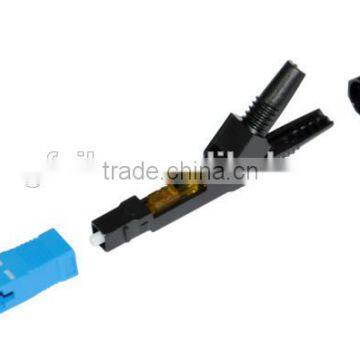

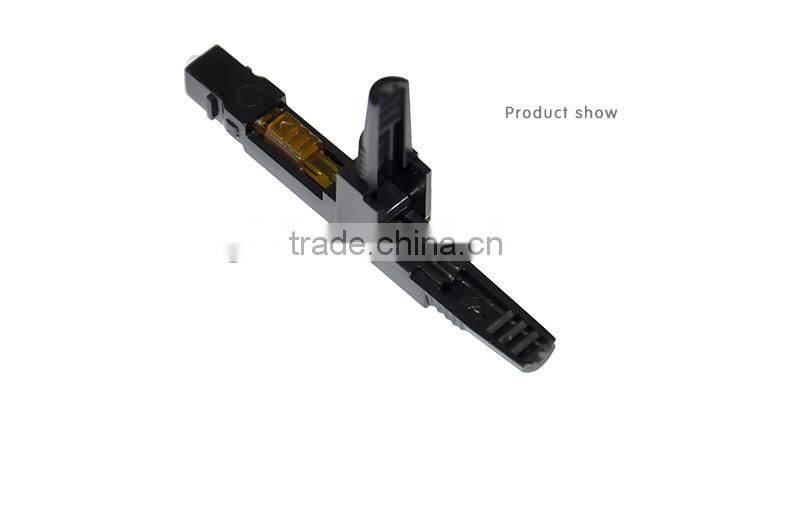

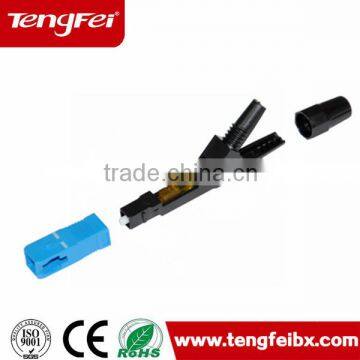

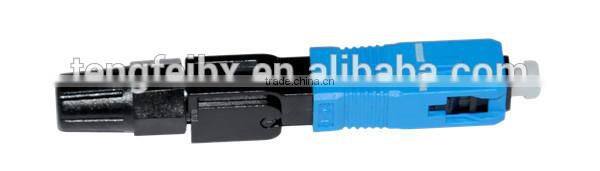

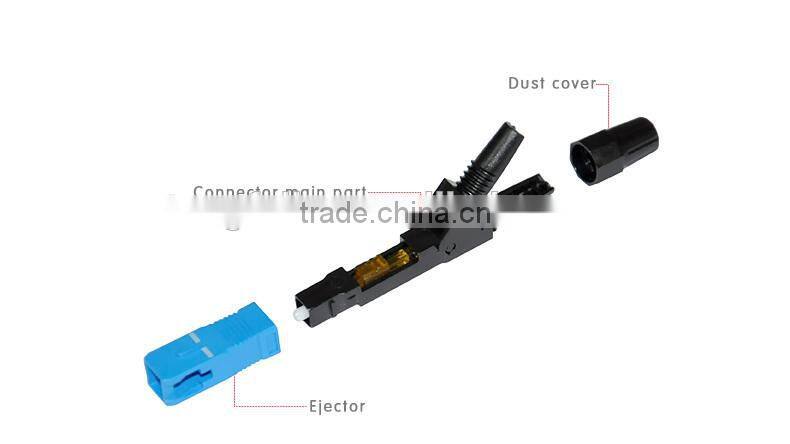

Product Name: SC APC fiber optic fast connector/quick assembly connector/field assembly connector

SC APC fiber optic fast connector/quick assembly connector/field assembly connectorSC APC fiber optic fast connector/quick assembly connector/field assembly connector

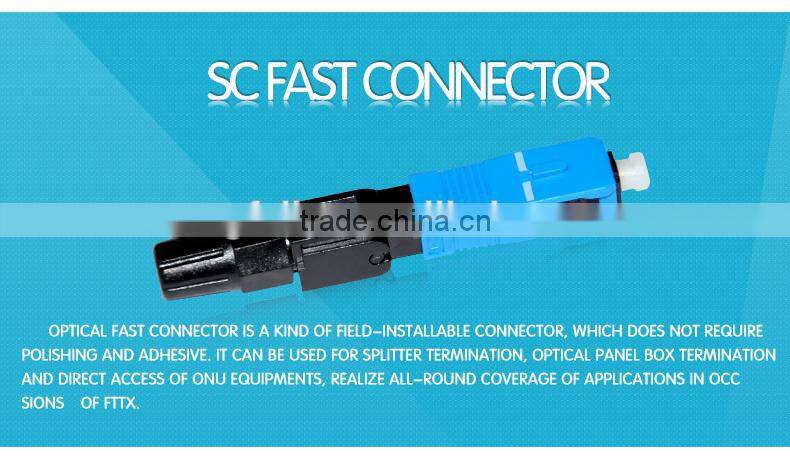

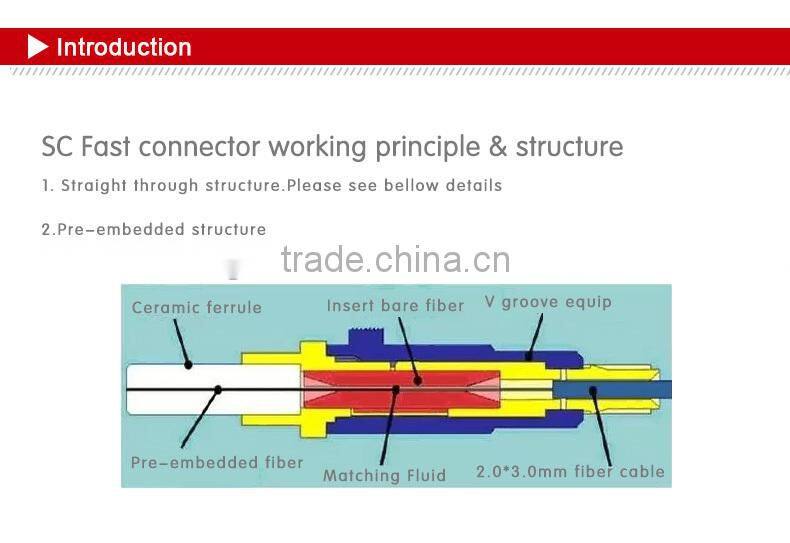

1, Description for SC fast connector

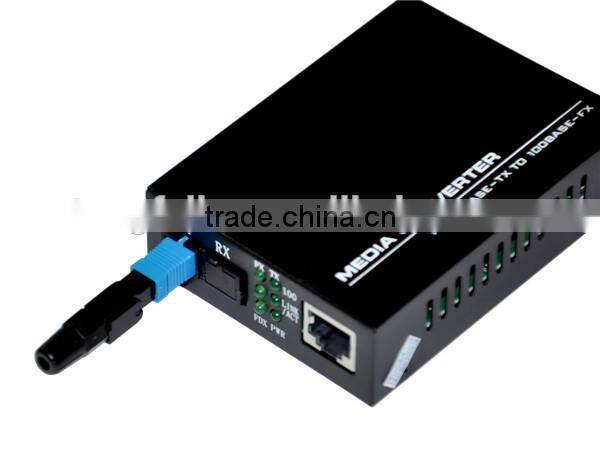

Optical fast connector is a kind of field-installable connector, which does not require polishing and adhesive. It can be used for splitter termination, optical

panel box termination and direct access of ONU equipments, realize all-round coverage of applications in occasions

of FTTX.

2, Feature for SC fast connector

  • Factory-installed fiber stub
  • No epoxy or polishing required
  • Quick and easy fiber termination in the field
  • Eliminates cable excess length and pigtail splice storage
  • Cost effective

3, Application for SC fast connector

  • Patch panels
  • Distribution frames
  • Maintenance or emergency restoration of fiber networks
  • FTTH Outlets
  • Connection at the desk for LAN environments

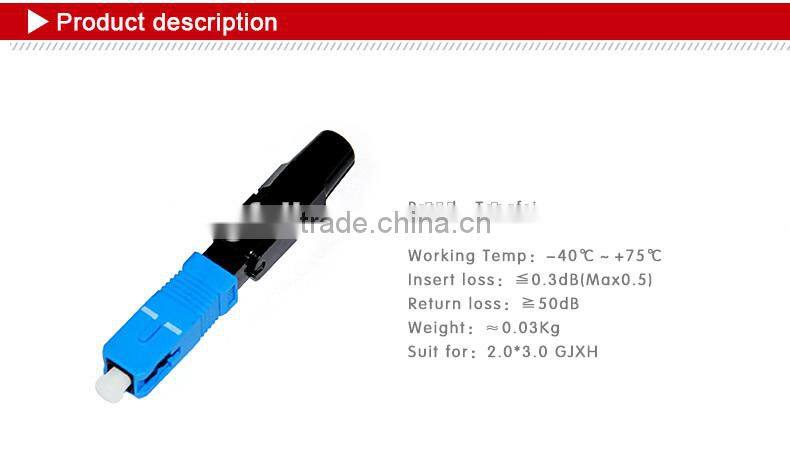

4,Specification for  SC fast connector

Applicable for

3.1x2.0mm drop cable or 3.0/2.0/0.9mm cable

Optical fiber diameter

φ125um (657A&657B)

Tight buffer diameter

φ250um

Fiber mode

Single mode

Operation time

About 10s (exclude fiber cut)

Insert loss

≤0.3dB (1310nm & 1550nm)

Return loss

≥45dB

Fastening strength of naked fiber

≥ 5N

Tight clamping force cladding

≥ 8N

Tensile strength

≥ 50N

Using temperature

-45°C~+80°C



SC APC fiber optic fast connector/quick assembly connector/field assembly connectorSC APC fiber optic fast connector/quick assembly connector/field assembly connectorSC APC fiber optic fast connector/quick assembly connector/field assembly connectorSC APC fiber optic fast connector/quick assembly connector/field assembly connectorSC APC fiber optic fast connector/quick assembly connector/field assembly connectorSC APC fiber optic fast connector/quick assembly connector/field assembly connectorSC APC fiber optic fast connector/quick assembly connector/field assembly connectorSC APC fiber optic fast connector/quick assembly connector/field assembly connectorSC APC fiber optic fast connector/quick assembly connector/field assembly connectorSC APC fiber optic fast connector/quick assembly connector/field assembly connectorSC APC fiber optic fast connector/quick assembly connector/field assembly connectorSC APC fiber optic fast connector/quick assembly connector/field assembly connector

Tengfei Advantage:
1,Certificate:CE/ROHS/ISO9001/ISO14001;
2,Delivery time :We have more than 1500Square warehouse, for  large stock of goods;  so most of kinds products we can ship faster than other supplier .
3,Payment terms  :
Sample order : western union , payal
quantity order : TT : 10%-30% down deposite ; balance before shipping ;
                         L/C : 100% L/C at sight
4,Quality : HIgh-Medium-Normal,According to your demand;
5,Brand: Tengfei network structure;
             OEM , ODM accept ;

Please contact us for latest price. All inquiry will be replied within 24hours!!!
