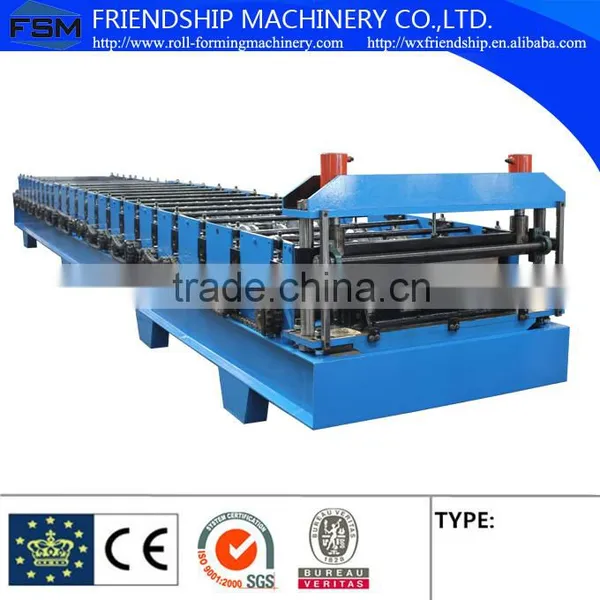

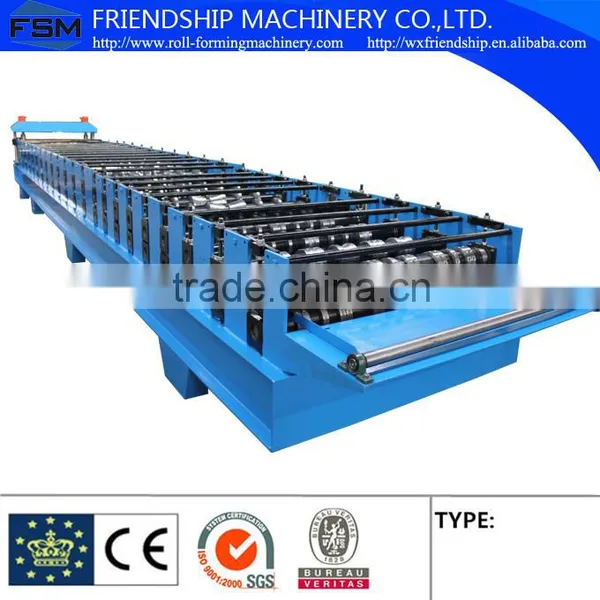

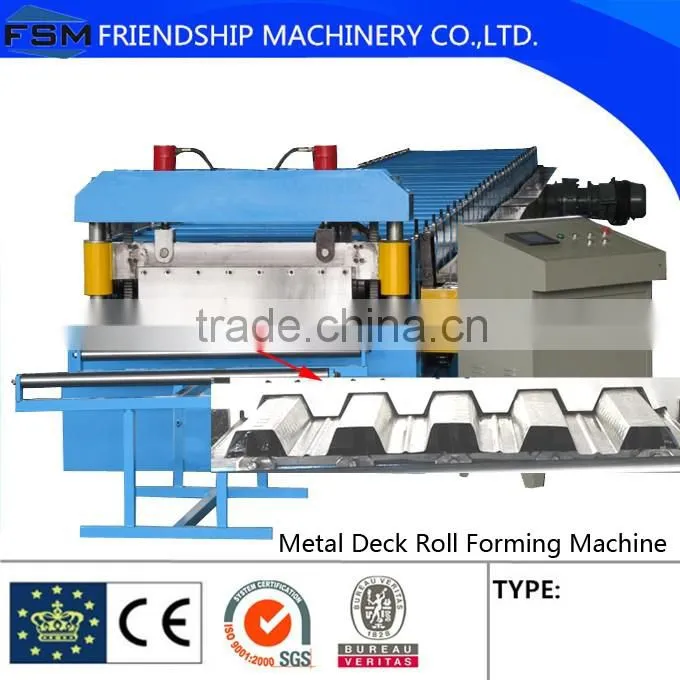

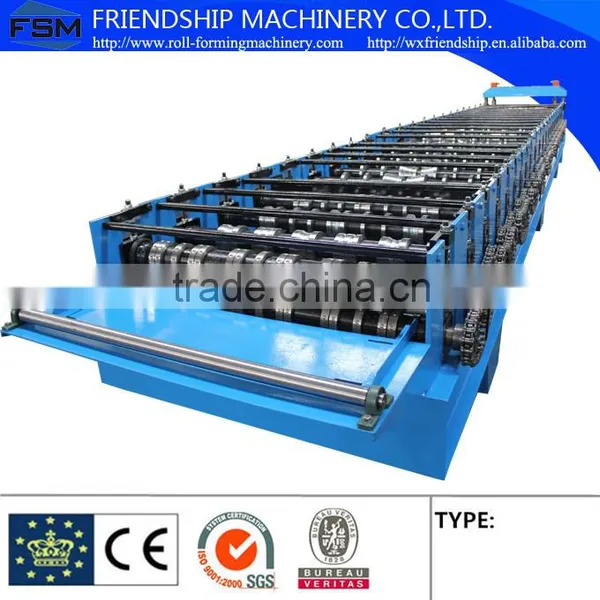

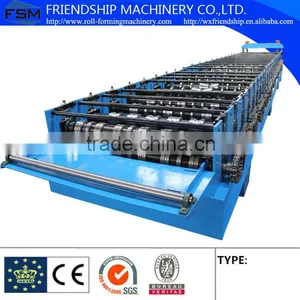

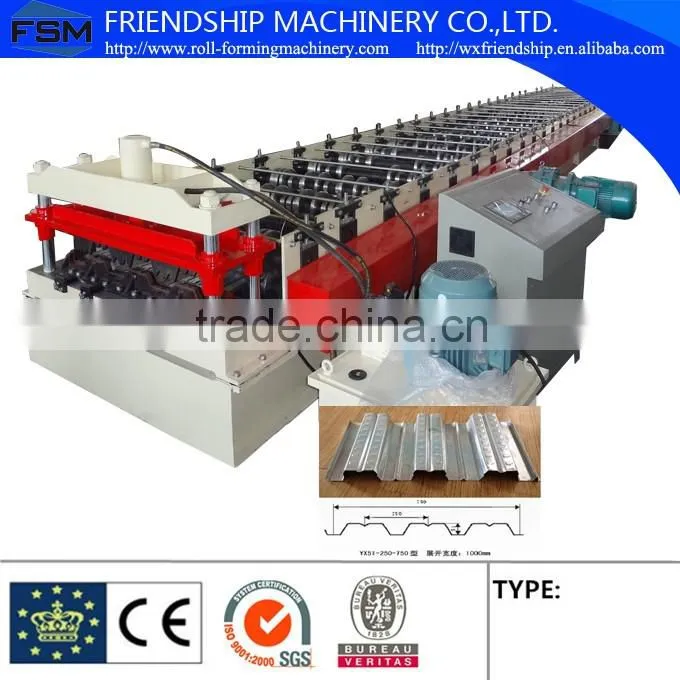

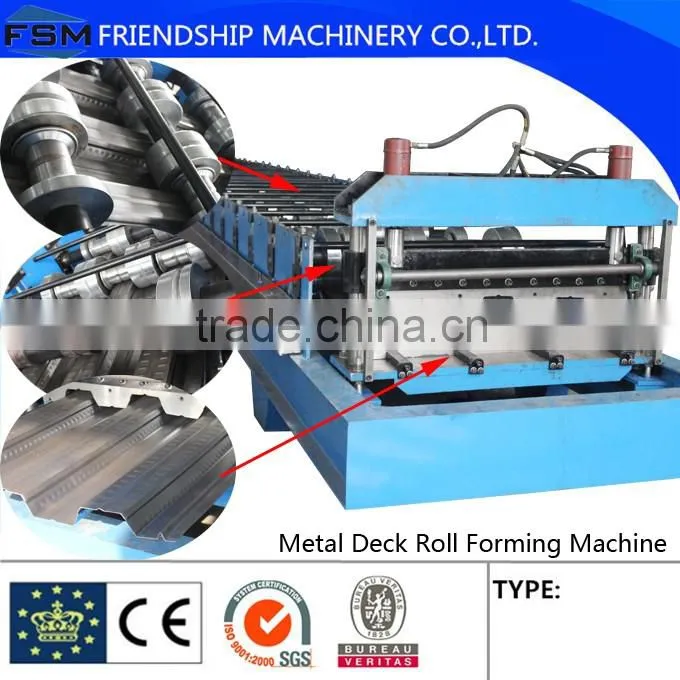

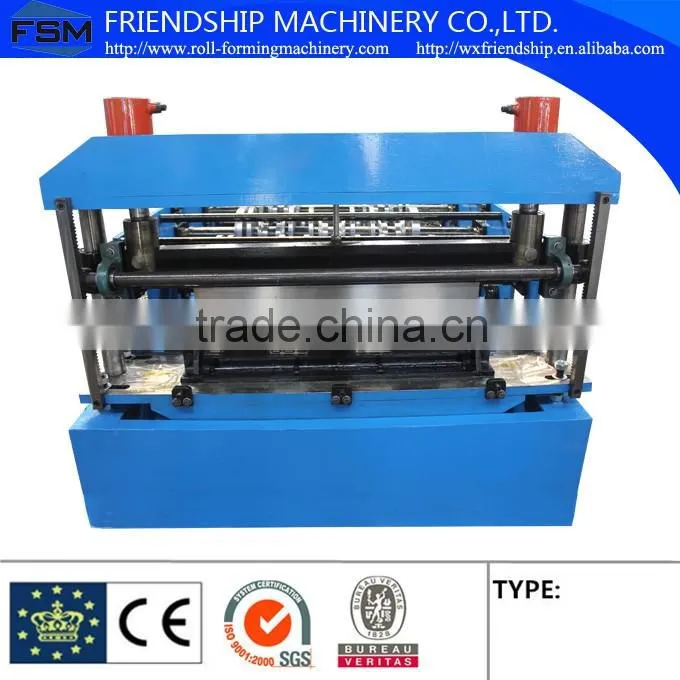

Steel Deck Floor Roll Forming Machine
Character of main structure
Main features and components of the machine
main features
A. the structure is simple and the appearance of the machine is beautiful because we adopt the shape steel structure and process as a whole after welding. it has the ability of strong loading and stable
operation when running the machine.
B. all the components of machine are from brand-famous enterprise so that they ensure the
machine normal function very effectively.
C. we adopt the automatic length-fixed forming and cutting to guarantee the
length to be precise and the finished product clear without deforming .
D. it is very easy to install the equipment and suitable for producing in the factory.
E. the machine has features of low noise and high efficiency.
Ⅰ:Composition of machine
| Roll forming main machine | 1 unit |
| Manual de-coiler | 1 unit |
| Control panel | 1 unit |
| Hydraulic station | 1 unit |
| Manual out table | 2 unit |
| Cutting device | 1unit |
hydraulic pressing system |
1unit |
II: Details of each compositi
| Material Spec | Galvanized steel sheet |
| Thickness of Coil Sheet | 0.8 --1.2 mm |
| Main Motor Power | 18.5kw |
| Forming Speed | 10--12m/min |
| Hydraulic Station Power | 3kw |
| Quantity of Stands | About 24 groups |
| Hydraulic Pressure | 10~12Mpa |
| Controlling System | PLC |
| Index Error of Length | 10m±2mm |
| Total Weight | About 1800kg |
| Voltage | 380V 3 phase 60Hz or at buyers requirement |
III: Technological process
Decoiling—feeding and guide —roll forming----press---cut to length—product
packing manual

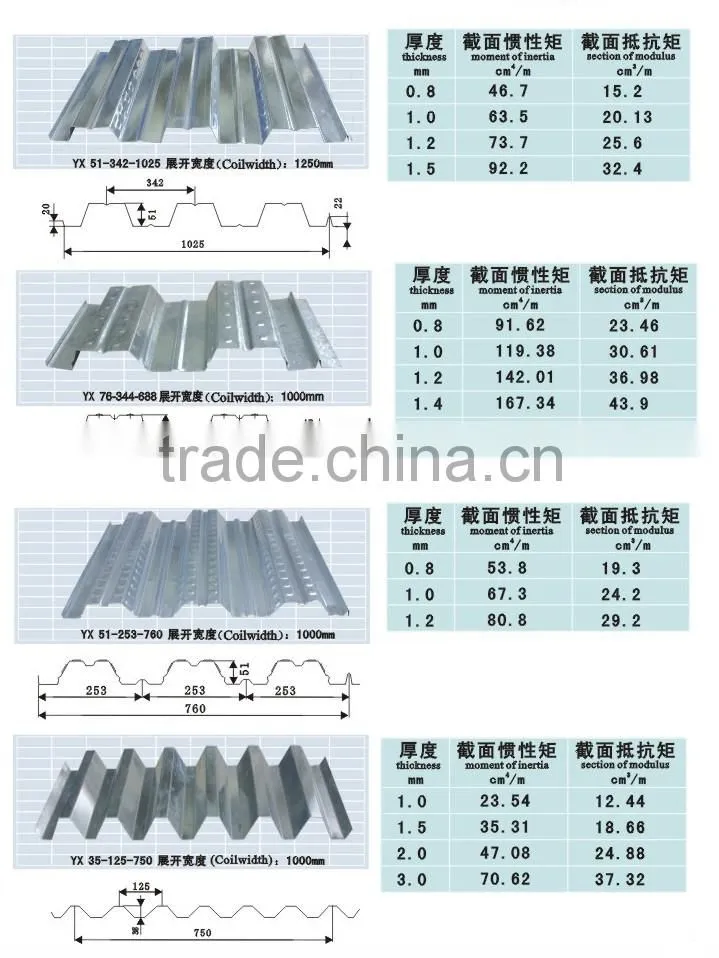

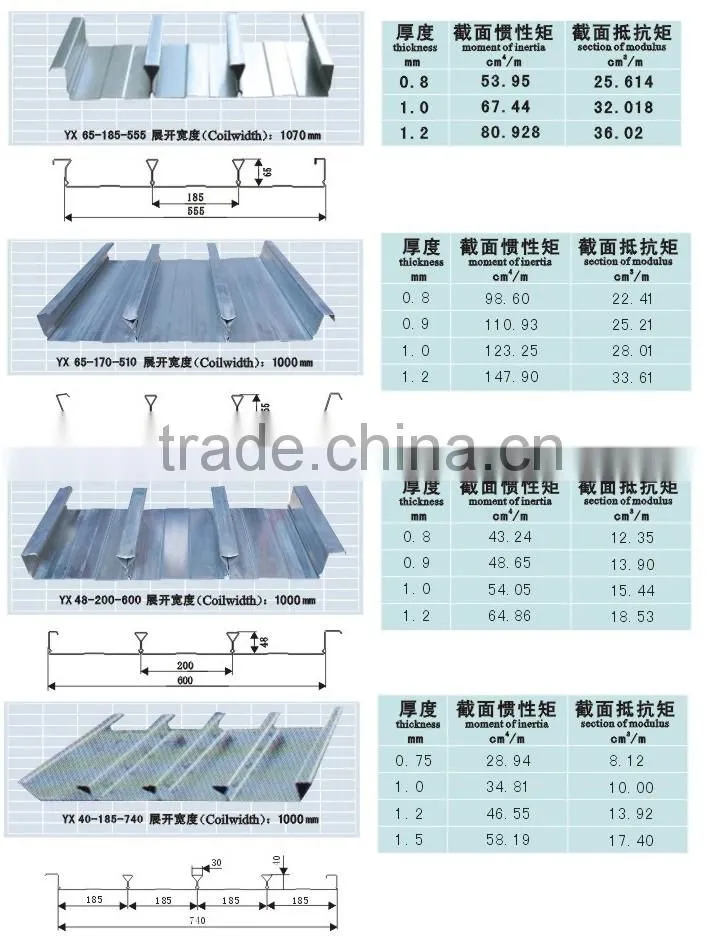

The profile:(Basis on customer’s require to design)

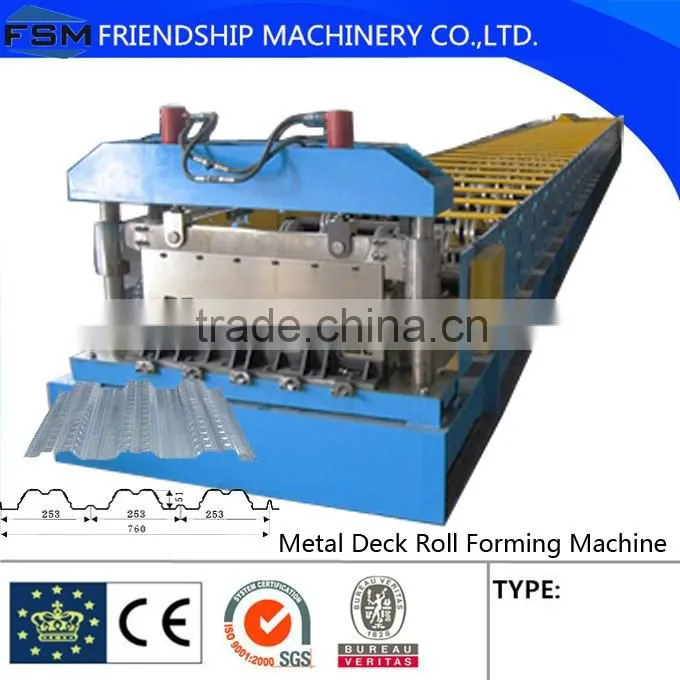

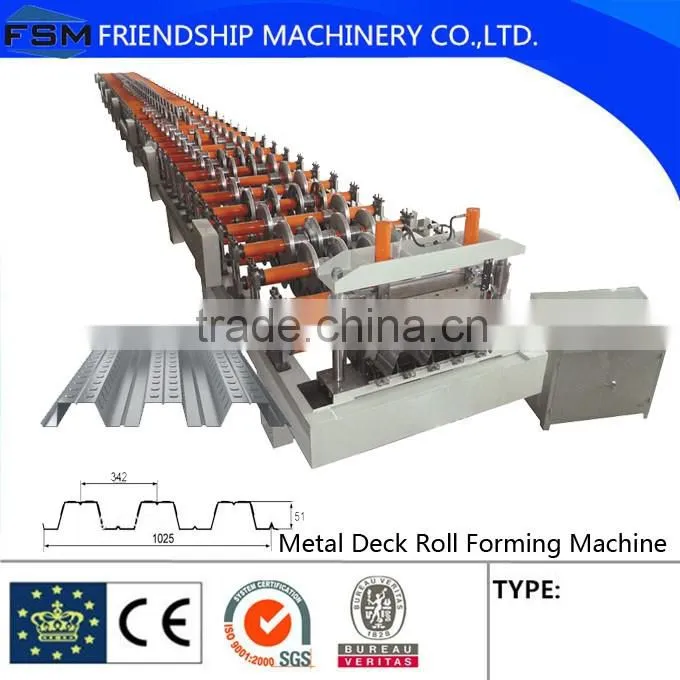

IV.Photo Wall
|
|
|
|
|
|
Terms of payment :30% pay before produce machine, 70% pay before shipment
Deliver time: 70days after received 30% down payment
After sell guarantee
1)Engineer will give free training lessons to labors in buyer’s factory.
