CNC H Beam Plasma Cutting Machine

US$ 50,000 - 50,000 MOQ: 1 Set

Key Specifications

Certification:

CE, ISO9001

After-sales Service Provided:

Overseas service center available

Wuxi Friendship Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Certification CE, ISO9001

After-sales Service Provided Overseas service center available

Product Description

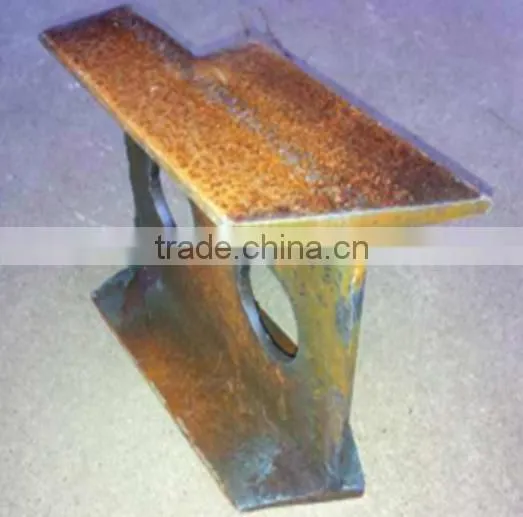

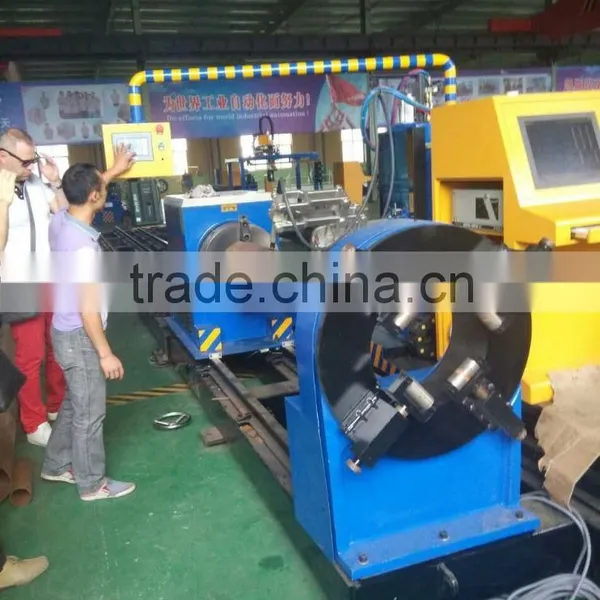

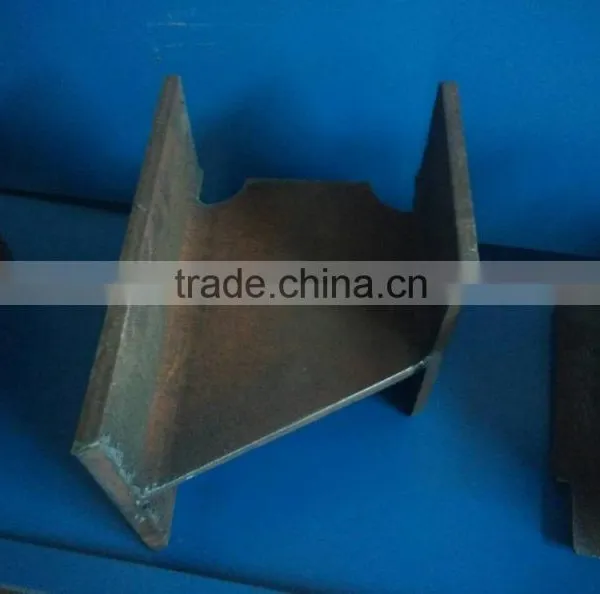

8 axis H beam pipe and profile cutting machine

duct specification & moving axis

No.	Items	Parameters
1	Cutting diameter	Φ= round :60-600mm Effective cutting 12 m
2	Cutting Square pipe	Width 5050-400400mm Effective cutting 12 m
3	H beam	Width 5050-400400mm Effective cutting 12 m
4	Cutting method	Plasma
5	Plasma power	Maxpro 200A plasma power
6	Plasma cutting wall thickness (quality cutting thickness)	1-25mm
7	Requirements of the workpiece ovality	≤1%
8	Cutting speed	10~2000mm/min
9	Move speed	10~6000 mm/min
10	Axial swing angle of cutting torch	α=±45°
11	For maximum weight cut tube	5000Kg

Moving axis	Choose cutting axis	Range of activities
Y1 axis :	Pipe rotary driving shaft	360 ° freedom of rotation
Y2 axis :	Pipe driven rotation shaft	360 ° freedom of rotation
X1 axis	The torch moving along the pipe axial horizontal axis	The maximum stroke 13000mm
A axis	The torch along the pipe axial plane swing axle	±45°
B axis	The torch along the pipe axial flat swing	±45°
Z axis :	The rise and fall along the tube axis	Travel 110mm
U axis	Torch along the axial plane of the front and rear axle pipe fittings	Move back and forth 60mm
X2 axis	Torch axially along the tube axis horizontal positioning	The maximum stroke 12000 mm

2.Pipe machine standard configurations

No.	Component name	Models and specifications	Basic function
1	CNC control system(China)		Complete function, stable performance, can be slotted compensation of workpiece. Our CO., R&D MADE
2	Automatic programming nesting software(America)		Kerf compensation, plasma bridge, even the cut edge of the flame, sharp handling, CAD sub-layer cutting, text annotation functions. The software support TELKA ,good compatibility
3	Driving system(Japan)		SERVO MOTOR, Precise speed control, torque-speed characteristics hard, the principle is simple, easy to use, the price advantage
4	Solenoid vale(Taiwan)		Air TAC, High temperature stability, good closure
5	Imported Cable(Germany)		Shuang ying, Long life, strong anti-jamming capability
6	Relays(France)		Schneider, Stable performance
7	Trachea(Korea)		SU, High pressure, long life Cold resistant and anti high temperature corrosion
8	Plasma source(USA)		Maxpro 200A hypertherm plasma power , 1-25 mm cutting thickness
