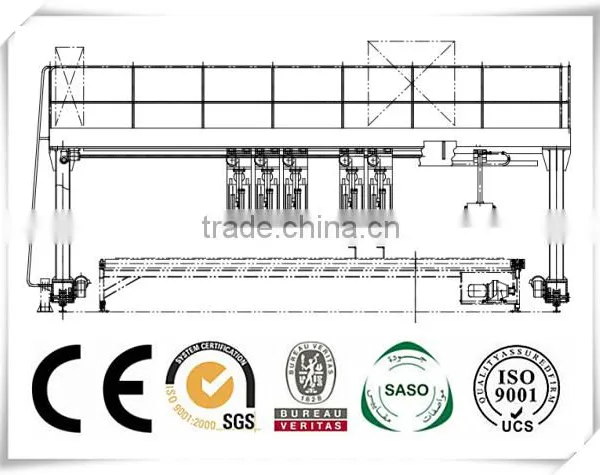

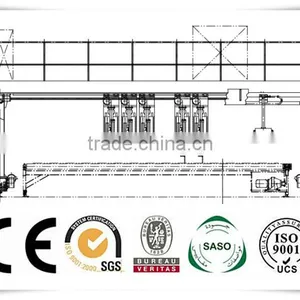

MH70 Gantry type reinforcing rib assembling machine
1. Technical parameter
- Main framework width: 7000mm
- Main framework height: 2100mm
- Minimum rib distance (synchronous welding): 400mm
- Driven motor: 0.75Kw * 2 sets
- Assembly arm: 5 sets
- Up and down pressure head distance: 100mm (pressing force 2tons)
- Left and right centering distance: 120mm (pressing force 1ton)
- Hydraulic system: maximum 140kg/cm2
2. Supply range
- Gantry framework: driven device * 2 sets, driven beam * 2 sets, upper platform, column, guideway hook, control system, cable and so on.

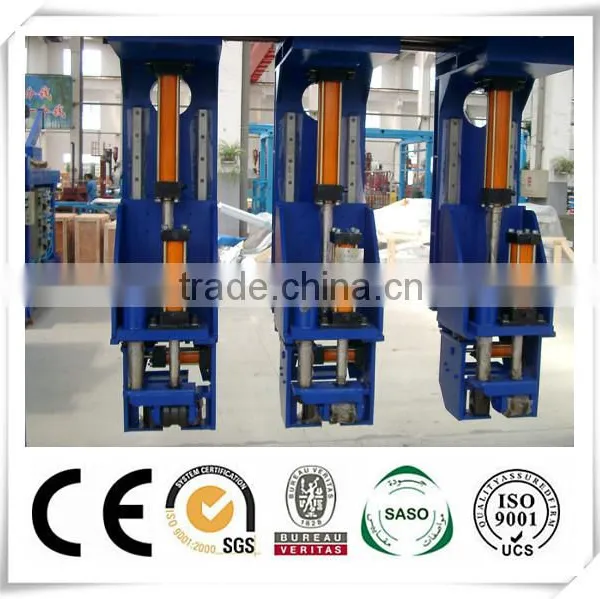

- Assembly device: up/ down pressure head, left/ right centering device, left/ right adjustable device.
- Hydraulic system: hydraulic pump station, cylinder, pipeline and so on.
- Conveyor: encryption bearing conveyor total 30m, transmission reducer/ motor, drag and chain, patch wheel and pusher device * 5 sets.
- Spare parts
