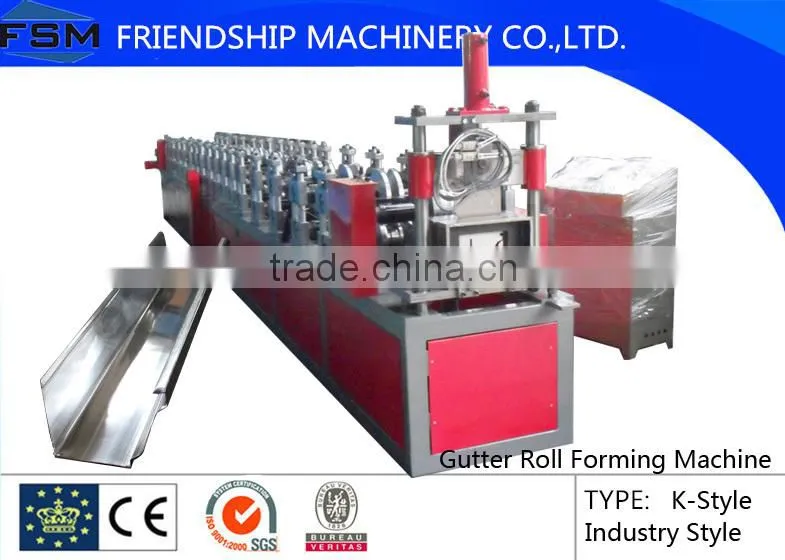

K-Style Gutter Machine For Rainwater Hydraulic Cutting Plc Control
- 100 Set / Sets per Month
- SHANGHAI
- T/T D/P D/A Credit Card PayPal
Product Details
Condition: | New | Type: | Tile Forming Machine | Tile Type: | Steel |
Use: | Roof | Production Capacity: | 90-99% | Place of Origin: | Jiangsu, China |
Brand Name: | FSM | Model Number: | FSM-0019 | Voltage: | 380V/50HZ/3P |
Dimension(L*W*H): | 8500 x 1200 x 1200 | Weight: | 4.5TON | Warranty: | 12MONTHS |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

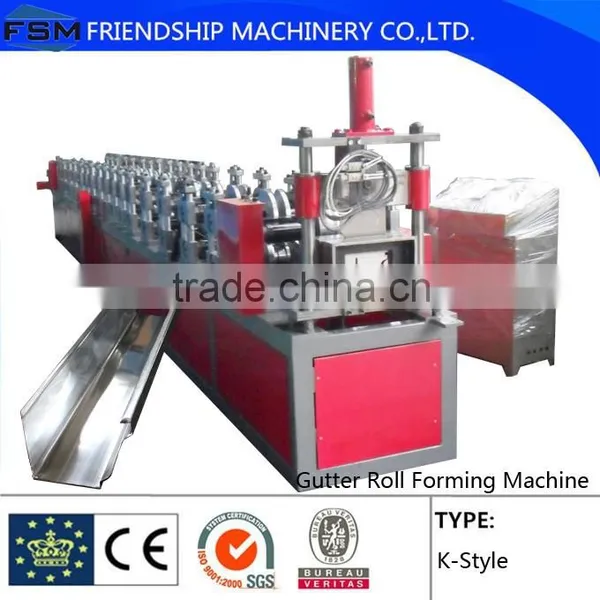

Gutter Roll Forming Machine
Ⅰ:Composition of machine
Roll forming main machine……………………………1 unit
Manual de-coiler…………………………………… …1 unit
Control panel………………………………………… 1 unit
Hydraulic station…………………………………… …1 unit
Manual out table……………………… ……………….1 unit
Ⅱ: Details of each composition
A: Roll forming main machine
1: Coil width: base on customer profile
2: working speed: 0m—12m/min (not contain cutting)
3: roll station: 11 stations
4: material of roller: 45 forge steel, polished and coated with chrome
5:material of main shaft:45 steel diameter roller: 56mm
6: main power: 5.5kw
7: forming thickness: 0.5-1mm color steel
8: Transmission: by Chains
9: size of machine: about 8500 x 1200 x 1200 (L x W x H)
10: weight: about 4500Kgs
11: color: blue and yellow (also can change depend on customer request)
12:Cutting:
(1) Machine adopt hydraulic cutting
(2)Cutting after forming: Cut the sheet after roll forming to required length
(3)Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.
(4)Material of blade: CR12with heat treatment
(5)Length measuring: Automatic length measuring
(6)Tolerance of length: 3m +/- 1.5mm
B.de-coiler
Dimensions: 1700mm*1000mm*800mm
Width of feeding: 500mm
Capability: 3 Ton
Bound of expand &fight: 450mm—550mm
Mode of expand &fight: inner expand &fight by manual
Way of feeding: manual
C: Control panel Panasonic
(1)Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase
(2)Automatic length measurement:
(3)Automatic quantity measurement
(4)Computer used to control length & quantity.
Machine will automatically cut to length and stop
when required quantity is achieved
(5)Length inaccuracy can be amended easily.
(6).Control panel: Button-type switch and touch screen
(7)Unit of length: millimeter
(switched on the control panel)
D: Hydraulic station
1: hydraulic station power: 4kw
2: hydraulic pressure: 12Mpa
E: manual out table:
(1)Jointed by 60mm*40mm tube
(2)Size: 1.0m long*0.8mwide
(3)One out table with two support roller
III:Character of main structure
Main features and components of the machine
1,main features
a.the structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and process as a whole after welding. it has the ability of strong loading and stable operation when running the machine.
b.all the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
c.we adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deformin
d.it is very easy to install the equipment and suitable for producing in the factory.
e: the machine has features of low noise and high efficiency.
