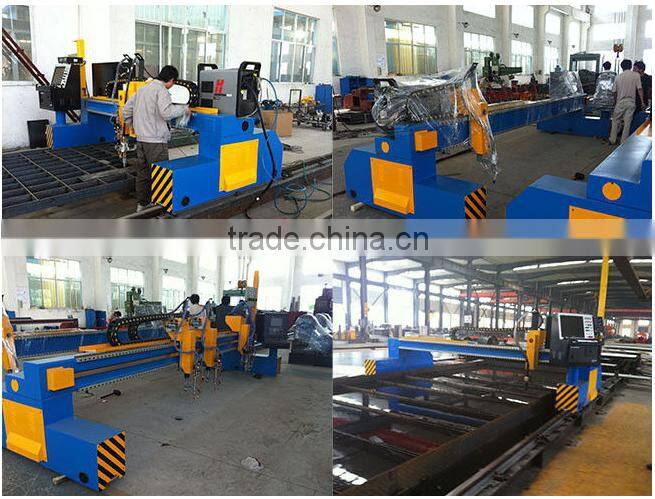

2 Flame Cutting Torches CNC Cutting Machine For Steel Plate Automatic Cut Gantry Type
Brife Info
1. Voltage : 380 V 50 Hz 3P / As Per Request Reset
2. Cutting Way : Flame Cutting Torch
3. Option : Two flame torches with one plasma torch
4. Delivery time : 20 Days
5. Payment Way : 30 % Payment in advance via TT / LC at sight
Description
1.Portable and compact gantry structure.
2.Integrated with high speed,precision and portable design.
3.Liquid crystal display, multilingual opertation menu, dynamic, static graphics processing;
Specifications
Rail Span (mm) |
3000 |
4000 |
5000 |
6000 |
7000 |
8000 |
Effective Cutting Width (mm) |
2300 |
3200 |
4200 |
5200 |
6200 |
7100 |
Drive Way |
Single Drive |
Double Drive |
||||
Rail Length (mm) |
Standard 15000 mm Your requirment |
|||||
Torch Quantity |
2 CNC and 9 Strip touches Your requirment |
|||||
Cutting Thickness (mm) |
Flame 6-350 mm Plasma According to material |
|||||
Travel Speed (mm/min) |
Max 12000 mm/min |
|||||
Cutting Speed (mm/min) |
Max 6000 mm/min(Set upon cutting material) |
|||||
Option: |
If you have your ideas on the Control System and Cutting Source, then just let us know. |
|||||
Applications
1. The CNC Oxy and Plasma Cutting Machine mainly used for cutting Mild steel , Stainless , Aluminum , and H-beam production line.
Competitive Advantage
1. CNC system memory capacity, more than 10000 program files;
2. Supports suspending, forward, backward and speed control;
3. Memory function of power failure;
4. USB interface to transfer the U disk files.
5. FASTCAM Nesting software,programming any complex shapes of plane parts;
6. Built-in graphic database of CNC system,programming easier, efficient operation;
Option
1. Dimension(L*W*H): determined by customer
2. Certification: CE
3. Warranty: ONE YEAR
4. Servo system:Japanese Panasonic
5. Gear reducer:German NEUGART
SEND US YOUR INQUIRY NOW AND LET US KNOW THE DETAILS INFO BELOW PLEASE.
1. Main material of the workpiece ?
2. The effective cutting width , length and thickness ?
3. Plasma cutting or flame cutting ?
4. Other special requirement if you have ?
