FOSITA Double Pipe Belling Machine

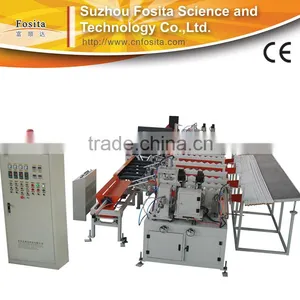

FOSITA Double Pipe Belling Machine thumbnail-1
FOSITA Double Pipe Belling Machine photo-1
US$ 5,000 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Plastic Pipe
Place of Origin:
Jiangsu, China
Contact Supplier Request Quote Chat Now
Suzhou Fosita Science And Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Product Type Plastic Pipe
Place of Origin Jiangsu, China
Brand Name FOSITA
Model Number SGK
Voltage 380V
Certification CE
Warranty One year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

FOSITA Double pipe Belling machine
1.applied to 16-50mm small diameter pipe
2.high automation degree
3.packaging function

FOSITA Double pipe Belling machine

Performance requirement

Equipment is made by pneumatic head frame structure and the tail rack, and all the mechanical parts adopt new quality steel manufacturing.Famous brand name is used in bearing .The head rack is made up with a feed device,heating furnace and expanding work spaces,the furnace is formed from stainless steel for heating,furnace equipped with its own unique temperature control system and use special eddy structure,so that the tube can be heated about rotation,thus the surface of the tubes expanding can achieve heating equality.The tail rack is made from landing next to the electric bodies.Furnace control system consists of intelligent temperature control table control,pneumatic and hydraulic components used both domestic brand-name products.Equipment operators and the expanding circle of all movements by PLC controller to achieve automatic control.

Characteristic:

1.applied to 16-50mm small diameter pipe

2.high automation degree

3.easy operation

4.good after-sales service

The technology parameter

The diameter of expanding pipe (mm)

Φ15~Φ50

Pipe Thickness(mm)

1.8~4.5

Consumption of cooling water(m3/h)

                          0.3

Compressed Air(MPa)

0.6~0.8

Heating Position(set)

2

Cooling Method

Water cooling, Air cooling

The shape of expanding

R Type

Belling Method

Automatic, Manual

The shape of expanding

Rectangular mouth in U shape

The mode of removing pipe

Remove pipes automatically

Heating Control

Both internal heating and external heating can be regulated

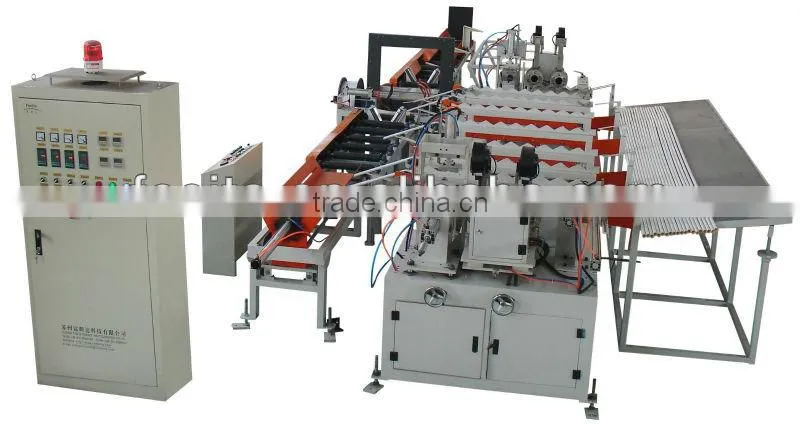

FOSITA Double pipe Belling machine

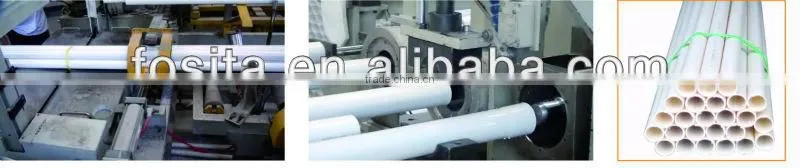

FOSITA Double pipe Belling machine



Our main products are PE/PPR/PVC pipe production lines,WPC/PVC profile production lines, PET bottles and PP/PE films recycling line,Plastic wastes pelletizing lines, and all kinds of other auxiliary equipments,such as Mixer,Crusher,Pulverizer,Shredder,Water chiller and so on.Our products,which have passed CE certificate,are exported to many countries,such as Brazil,Libya,Egypt,Qatar,Syria,UAE,Jordan,Turkey,Armenia,Nepal,Uzbekistan and so on.We also have our sales agency in Egypt and Jordan.Looking forward to cooperating with you!
