Specifications
SGK 250 automatic plastic pipe belling machine1.Pipe diameter: 63mm-250mm

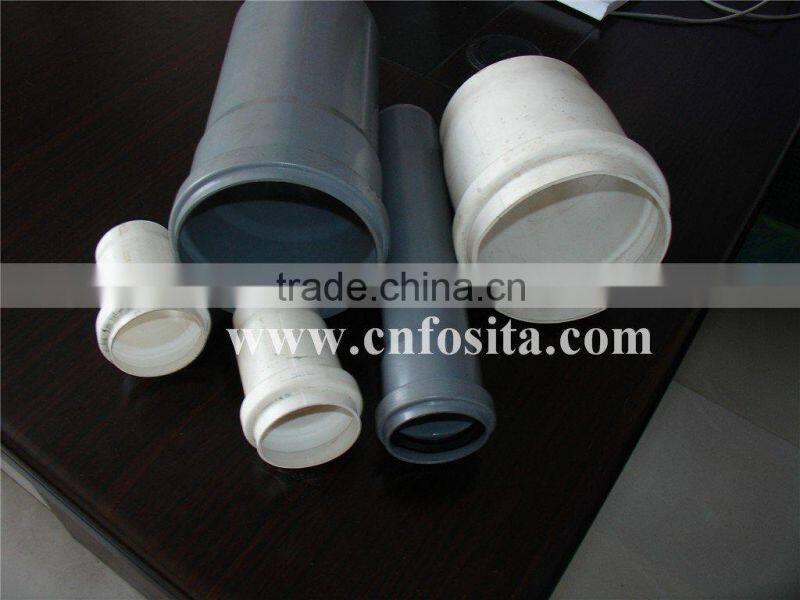

2.Belling type:"U","R" or "Square" type
3.CE

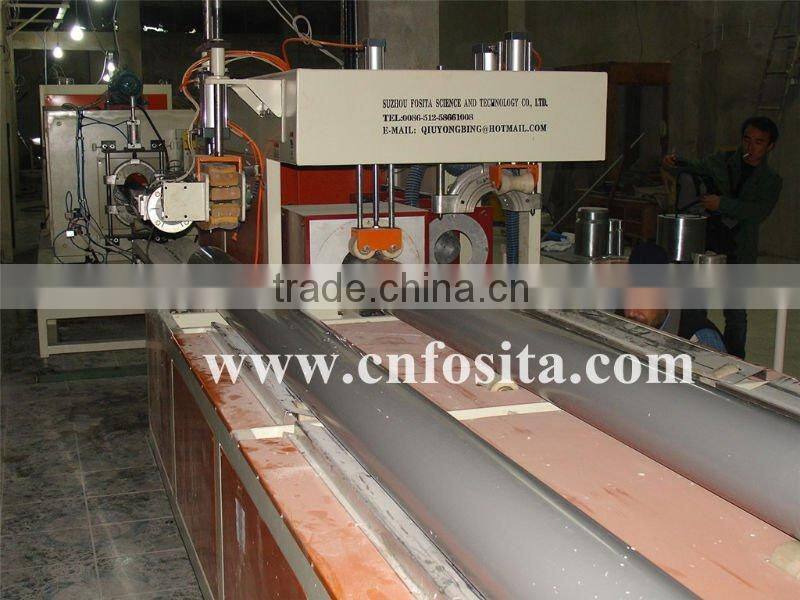

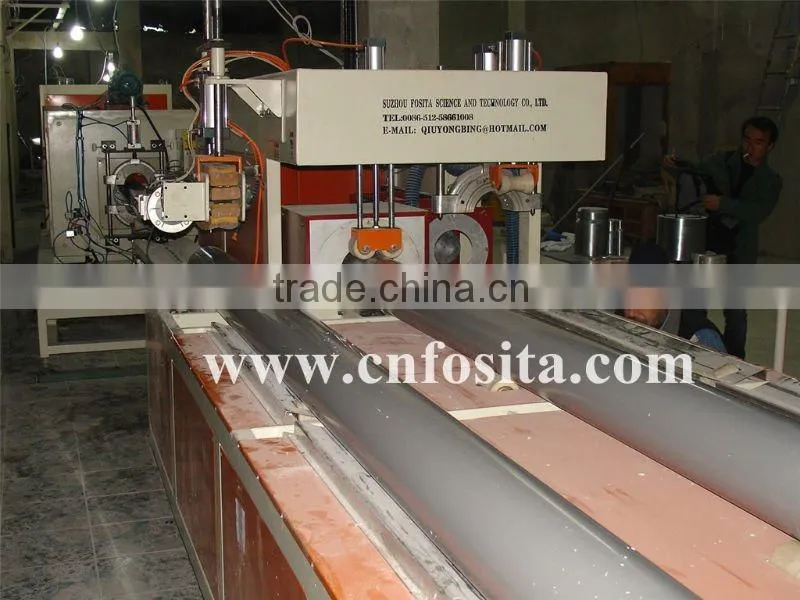

SGK 250 automatic plastic pipe belling machine
Performance requirement

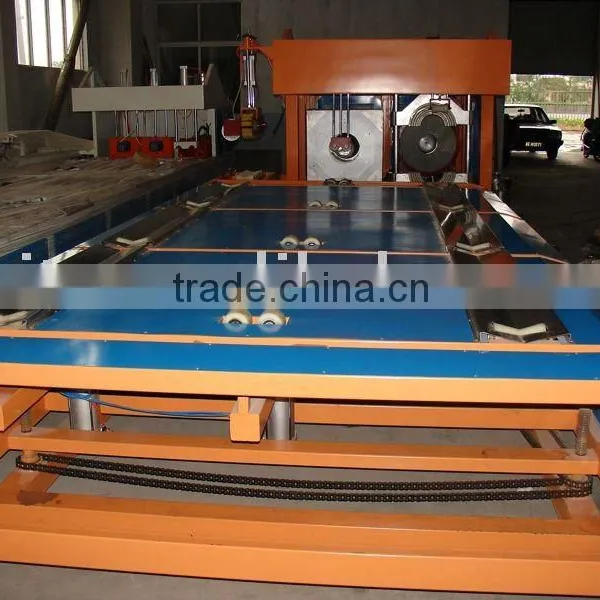

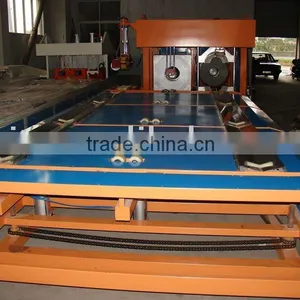

Equipment is made by pneumatic head frame structure and the tail rack, and all the mechanical
parts adopt new quality steel manufacturing. Famous brand name is used in bearing. The head
rack is made up with a feed device, heating furnace and expanding work spaces ,the furnace is
formed from stainless steel for heating, furnace equipped with its own unique temperature control
system and use special eddy structure, so that the tube can be heated about rotation, thus the
surface of the tubes expanding can achieve heating equality. The tail rack is made from landing
next to the electric bodies. Furnace control system consists of intelligent temperature control table
control, pneumatic and hydraulic components used both domestic brand name products.
Equipment operators and the expanding circle of all movements by PLC controller to achieve
automatic control.
Characteristic
1.easy operation
2.high automation degree
3.good after sales service
4.high cost performance and long life
Main Technical Parameter
| Specification Model | SGK250 |
| Pipe diameter(mm) | 63-250 |
| Pipe wall thickness(mm) | 2.9-15 |
| Pipe length(m) | 4-6 |
| Belling type | R,U,and Square type |
| Total power(kw) | 8.87 |
| Working pressure(Mpa) | 4-6.3 |
| Water consumption(m3/h) | 0.4 |
| Output(piece/h) | 2-40 |
| Dimension(L×W×H) | 6800×1800×1850mm |
