Specifications
4ch 960H DVR, 7inch LCD screenFull D1 realtime ,1 SATA
HDMI VGA output
26 languages,p2p cloud
could support IP camera no
DK-7104CD 7inch LCD Screen DVR
Key Features:
- Support HDMI, VGA and CVBS synchronous output.
- Support zoom any area selected by the mouse under PELCO-D/P PTZ control protocol.
- Support one key to run recording function.
- Support holiday recording and snapshot setup.
- Support schedule snapshot, manual snapshot, alarm snapshot, FTP upload snapshot, playback and backup of the snapshot.
- Support search, playback, backup the recording according to events; support playback and search pictures in local.
- Support smart search in the self-defined areas in the playback of the recording.
- Support 1 SATA ports.
- Support maximum 8CH synchronous playback.
- Support NTP(Internet timing), DHCP(automatically get IP),Email(mail service),UPNP(Universal Plug and Play).

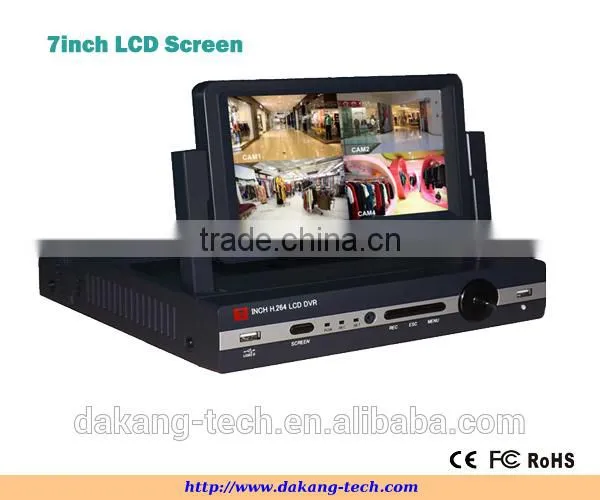

Picture:

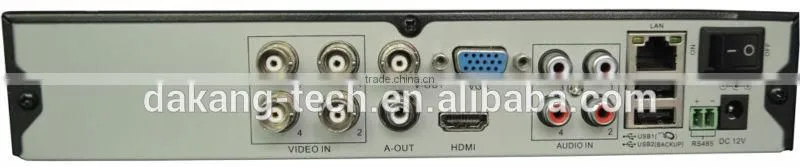

Back Panel:
Specification:
Model |
DVR-7104CD |
|
System |
Main processor |
Industrial grade embedded micro controller chip Huawei Hisilicon chipset Hi3515A |
Operating system |
Embedded LINUX operating system |
|
System resource |
Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up. |
|
Display |
Operation interface |
16 bit real color GUI interface support mouse operation |
Multilingual Language |
YES, 28 kinds of language |
|
Display screen |
1/4 screen |
|
Video |
Video standard |
PAL(625 lines, 50fps); NTSC(525lines, 60fps) |
Image encode |
H.264(Main Profile) |
|
Monitor quality |
Monitor:D1; VGA:(1280*1024, 1024*768, 800*600) |
|
Playback quality |
960H/D1/HD1/CIF |
|
Encode capability |
4CH non-real time 960H@20fps |
|
Decode capability |
4CH non-real time 960H@10fps |
|
Audio |
Audio compression |
G.711A |
Record and playback |
Record mode |
Manual, alarm, motion detection, timing |
Snapshot |
NO |
|
Local playback |
1CH – 4CH |
|
Video search |
Time, date, event, channel search |
|
Storage and back up |
Space Usage |
Video: CIF 4~5G/day*channel; D1 8~20G/day*channel; Audio: 691.2M/day*channel |
Video storage |
Local Hard Disk, Network |
|
Back up mode |
Network backup, USB portable HDD, USB DVD-RW |
|
Interface |
Video input |
4CH BNC(1.0Vp-p, 75Ω) |
Video output |
1CH BNC, 1CH VGA |
|
Audio input |
4CH RCA |
|
Audio output |
1CH RCA |
|
Network port |
1*RJ45 10/100 Base-T self-adaptive Ethernet port |
|
PTZ control |
1*RS485 port, Support more than 20 kinds protocols. |
|
USB port |
2*USB 2.0 port |
|
HDD port |
Accommodates 1 SATA HDDs (1 HDD capacity up to 3TB) |
|
Wireless Port |
3G & WIFI (extension via USB port) |
|
User |
User level |
Admin / User |
User right |
Users can set different permissions (How to use please refer to the manual book) |
|
Password protection |
YES |
|
Remote |
Remote Independent Operation |
YES |
Download records |
YES |
|
Remote Event Trigger Recording |
YES |
|
CMS |
CMS Software for multiple DVR (up to 255 DVR simultaneously) |
|
Browser |
Internet Explorer, Mozilla Firefox, Google Chrome, Safari |
|
Live Audio |
YES |
|
On-line user |
Max. 10 |
|
Mobile Surveillance |
YES (Support iPad, iPhone, BlackBerry, Windows Mobile, Symbian & Android;iPad, iPhone, Andriod have remote playback function) |
|
Network Protocol |
DHCP, PPPOE, FTP, DNS, DDNS, NTP, UPNP, EMAIL, IP authority, IP search, Alarm center |
|
Alarm |
Motion detection |
16 × 12 grids per channel;6 adjustable parameters for accurate detection(for local analog channel only) |
Event Notification |
FTP / E-Mail |
|
Pre-alarm Recording |
YES |
|
Video loss |
Video loss notification |
|
Other |
IR remote controller |
Remotely control DVR and PTZ cameras via IR transmitter (IR receiver built-in) |
Cooling fan |
NO |
|
Tour |
YES |
|
Power Source |
DC 12V / 2A |
|
Power Consumption (±10%) |
<10W (Without HDD) |
|
Operating Temperature |
0°C ~ +55°C |
|
Size |
250mm(L)* 210mm(W)* 45mm(H) |
Easy remote access from mobile phone and IE explorer:
A. Remote acecss from Mobile Phone:
1. Find the QR code at the bottom of DVR,like below:
2. Download APP: Vmeyecloud
3.login APP, Select "by Device","Add","Input Name" anyone,"SerialNo" input or Scan QR code, "User name" admin, "Password",no need fill, choose Cloud on, then Save thses,then go back,select your DVR .
B. Remote acecss from Mobile Phone:
1. Login cloud server: http//,
choose "by Device"
2. input DVR serialNo and verify code.
Certificate:
OEM:
Customer Logo can be stuck/Printed on goods/color box upon confirmed.
Warranty
All our products have 2 years warranty.
