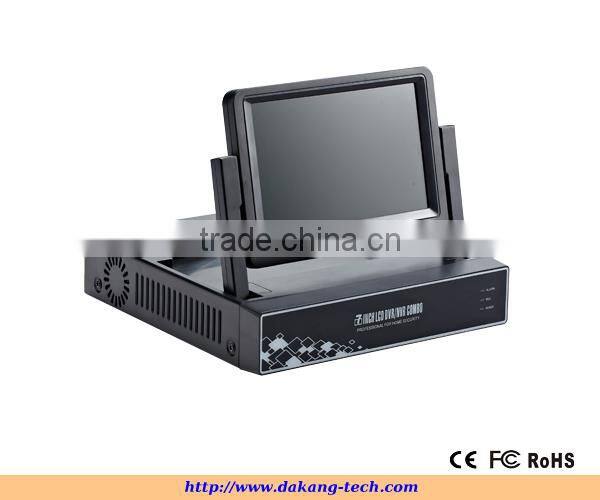

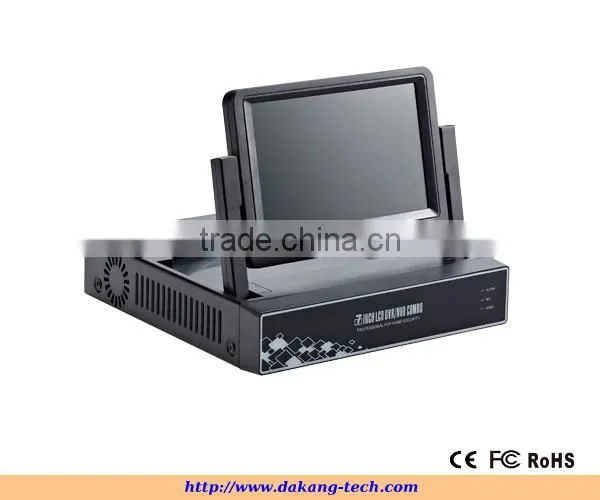

Full HD 1080P NVR,p2p, 8ch 1080P NVR with 7inch LCD screen

System

Main processor

Industrial grade embedded micro processor chipset

Operating system

Embedded LINUX operating system

System resource

Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up.

Display

Operation interface

16 bit real color GUI interface support mouse operation

Multilingual Language

28 kinds of language,English, Finnish, French, German, Greek, Italian, Polish, Portuguese, Russian, Spanish, Thai, Simplified Chinese, Chinese-Traditional, Turkish, etc

Display screen

1/4 screen

Video

Video standard

PAL(625 lines, 50fps); NTSC(525lines, 60fps)

Image encode

H.264(Main Profile)

Monitor quality

Monitor: D1; VGA & HDMI: (1920*1080,1280*720,1440*900,1280*1024,1024*768, 800*600)

Playback quality

1080P/960P

Encode capability

8CH 1080P/8CH 960P

Decode capability

1CH 1080P/2CH 960P

Audio System

Audio compression

G.711A

Talkback

NO

Record and playback

Record mode

Manual, alarm, motion detection, timing

Local playback

1CH – 4CH

Video search

Time, date, event, channel search

Storage and back up

Space Usage

Video: D1 8~10G/day*channel;960H 12G~20G/day*channel;720P 20~30G/day*channel;1080P ~40G/day*channel;Audio: 691.2M/day*channel

Video storage

Local Hard Disk, Network

Back up mode

Network backup, USB portable HDD, USB DVD-RW

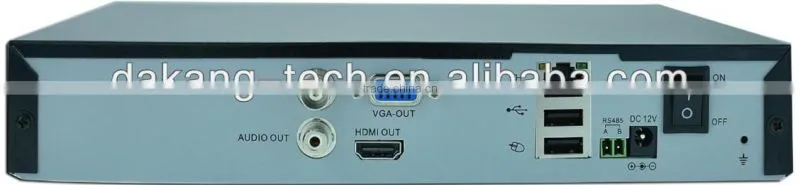

Interface

Video input

4CH 720P/4CH 960P

Video output

1CH BNC(1.0Vp-p,75Ω), 1CH VGA, 1CH HDMI

Audio input

NO

Audio output

1CH RCA (200-3000mV,5KΩ)

Alarm input

NO

Alarm output

NO

Network port

1*RJ45 10/100 Base-T self-adaptive Ethernet port

PTZ control

1*RS485 port, Support more than 20 kinds protocols.

USB port

2*USB 2.0 port

HDD port

Support 1 SATA HDDs (1 HDD capacity up to 3TB)

Wireless Port

3G & WIFI (extension via USB port)

User

User level

Admin / User

User right

Users can set different permissions (How to use please refer to the manual book)

Password protection

Support

Remote

Remote Independent Operation

Support

Download records

Support

Remote Event Trigger Recording

Support

CMS

CMS Software for multiple NVR

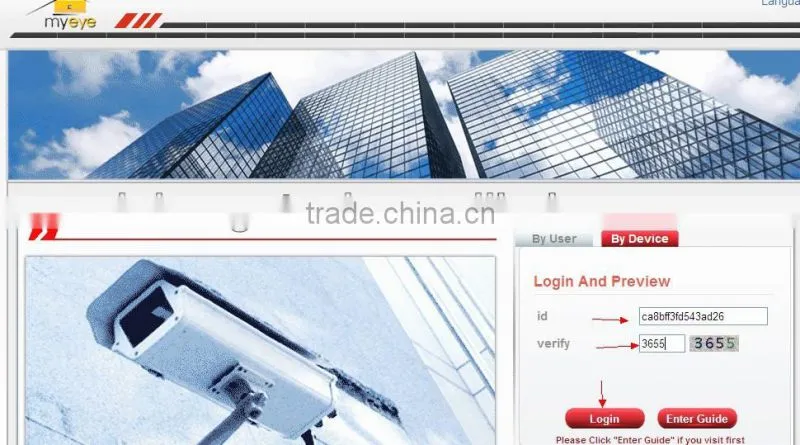

Browser

Internet Explorer

Live Audio

Support

On-line user

Max. 10

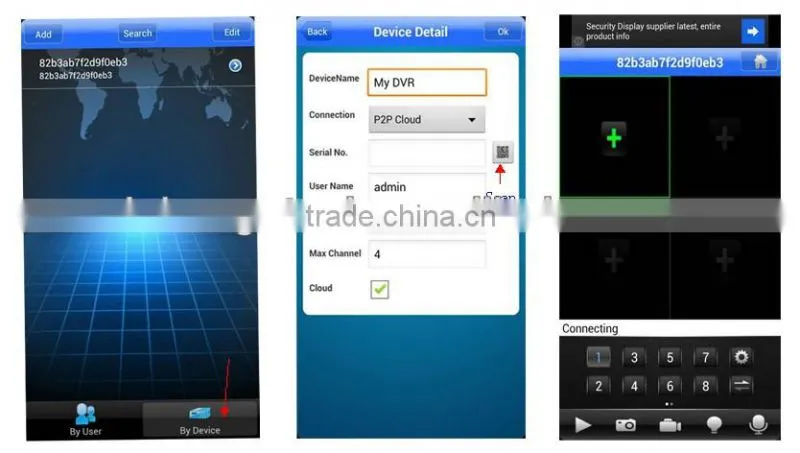

Mobile Surveillance

Support iPad, iPhone & Android phone;support remote playback function)

Network Protocol

DHCP, PPPOE, FTP, DNS, DDNS, NTP, UPNP, EMAIL, IP authority, IP search, Alarm center

Alarm

Motion detection

16 × 12 grids per channel;6 adjustable parameters for accurate detection(for local analog channel only)

Event Notification

FTP / E-Mail

Pre-alarm Recording

Support

Video loss

Video loss notification

Other

IR remote controller

Remotely control DVR and PTZ cameras via IR transmitter (IR receiver built-in)

Cooling fan

NO

Tour

Support

Power Source (±10%)

DC 12V / 2A

Power Consumption (±10%)

<10W (Without HDD)

Operating Temperature

0°C ~ +55°C

Dimensions (mm) **

260mm* 230mm* 45mm
