PET Bottle Flakes Washing Machine Automatic Bottle Washing Machine Price

Name: PET Bottle Flakes Washing Machine Automatic Bottle Washing Machine Price
Brand: FOSITA
SKU: 122366481

US$ 10,000 - 100,000 MOQ: 1 Set

Key Specifications

Condition:

New

Application:

recycling

Automatic Grade:

Automatic

Suzhou Fosita Science And Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application recycling

Automatic Grade Automatic

Production Capacity 100-2000kg/h

Place of Origin Jiangsu, China

Brand Name FOSITA

Model Number FST

Voltage 380V

Certification CE

Warranty one year

After-sales Service Provided Engineers available to service machinery overseas

PET flakes washing machine(hot washing)

PET flake washing line

washing line

waste plastic recycling line

waste bottle recycling machine

waste plastic washing line

pet bottle washing machine

automatic bottle washing machine price

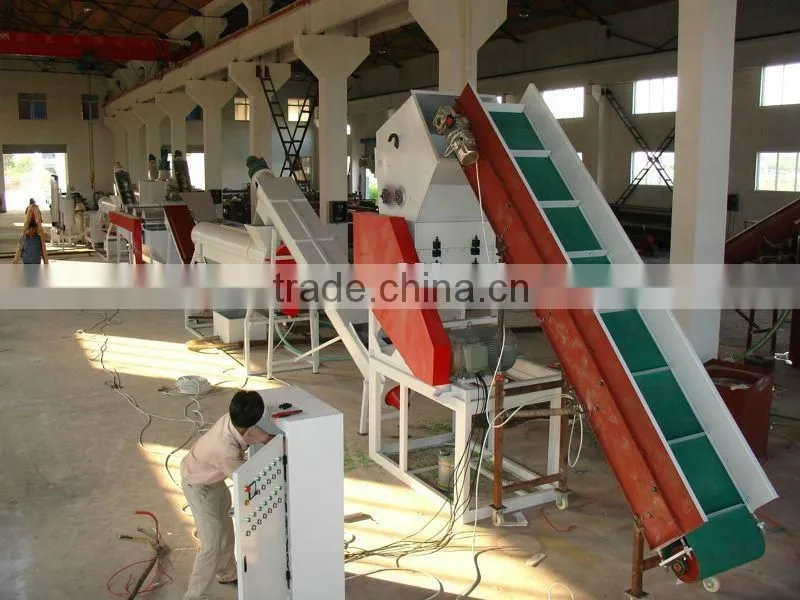

PET bottle flakes washing machine automatic bottle washing machine price

NO	ITEM	DESCRIPTION
1	Prewasher	Remove the solid impurity which are water insoluble, such as hand stone, sand, etc. It can also wash bottles' surface.
2	Bale Breaker	It is used in large capacity recycling line, and bottles are compressed in bale.
3	Belt Conveyer	Including the metal detector.
4	Label Remover	Label removing efficiency, more than 98%
5	Manual Select Platform	Made according to workers' height, supply a suitable plate for selecting the left labels or some other impurity.
6	Belt Conveyer	Conveying the bottles into crusher.
7	Crusher	With water, the materials of the blade adopt SKD-II or 9CrSi. It has a function of prewashing too.
8	Screw Feeder	Conveying the flakes into friction washer.
9	Friction Washer	Scrubbing material in high-speed with water.
10	SCrew Floating Washer	Remove few remand paper, sand, label from material based on different density.
11	Screw Feeder	Conveying the flakes into hot washer.
12	Hot Washer	High temperature stirring washing with caustic soda. Water can be heated by steam or electric.
13	Screw Feeder	Same as Item 8.
14	Friction Washer	Same as Item 9.
15	Screw Floating Washer	Same as Item 10.
16	Dewatering Machine	High speed centrifuge drying.
17	Drying System	Electric heating wind drying.
18	Label Wind Separator	The last left impurity will be separated from flakes by the blower fan.
19	Silo	Store the final material.
20	Electrical Control Panel	Adopts Siemens and DELIXI as main component.
