Specifications

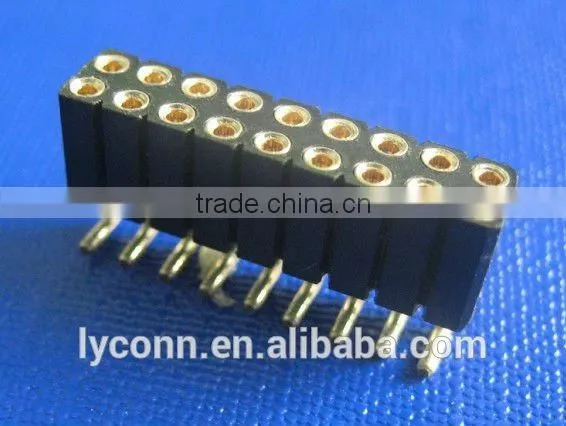

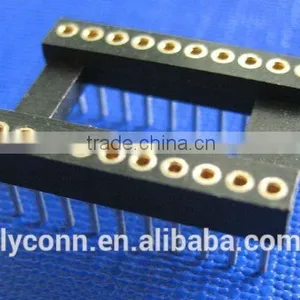

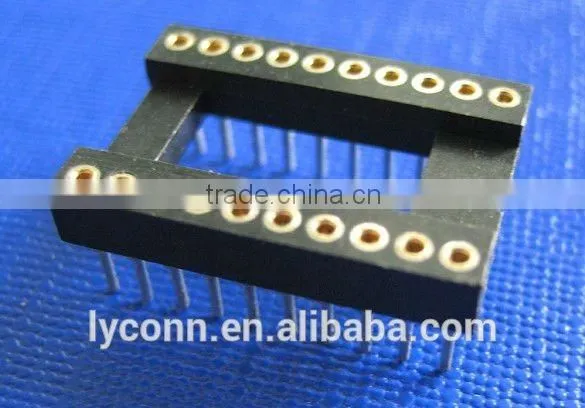

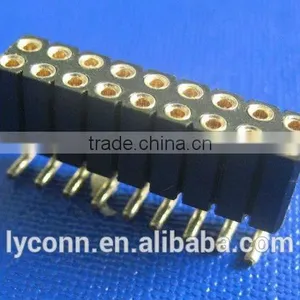

Round Pin IC Socket :
Pitch: 2.54mm
Insulator:PBT
Contact:Brass(Machine Pin)
No of Contacts: 06~64Pin
Round pin /Machine PIN IC socket Technical Specs:
Insulator: PBT
Flammability: UL94V-O
Sleeve: Brass CuZn36Pb3(C3600)
Contact clip(4finger): Beryllium copper(C17200)
Accepted pin 0.40~0.56mm
Mechanical life: min 100cycles
Rated current: 3A
Contact resistance: max10mΩ
Dielectric strength: min 1000V RMS
No of Contacts:
06/08/10/14/16/18/20/22/24/28/32/36/40/42/48/50/52
3. Dim C 7.62/10.16/15.24/19.05/22.86mm
4. Insulator type: open frame/closed frame
5.
Pin Plated Clip Plated
Gold flash Tin 200u
Gold 5u Tin 200u
Gold 15u Tin 200u
Gold 30u Tin 200u
Tin 200u Tin 200u
Gold flash Gold flash
Gold 10u Gold flash
6.pin length:7.40/7.43/8.80/10.20/12.20/13.40/14.30/15.00/17.78/19.80/25.80mm
