Home > Electrical & Electronics > Connector & Terminals > Wire to Wire Connector > Pitch 2.54mm Solder Type SIP Socket Single/Double Row Machined Pin IC Sochet Header

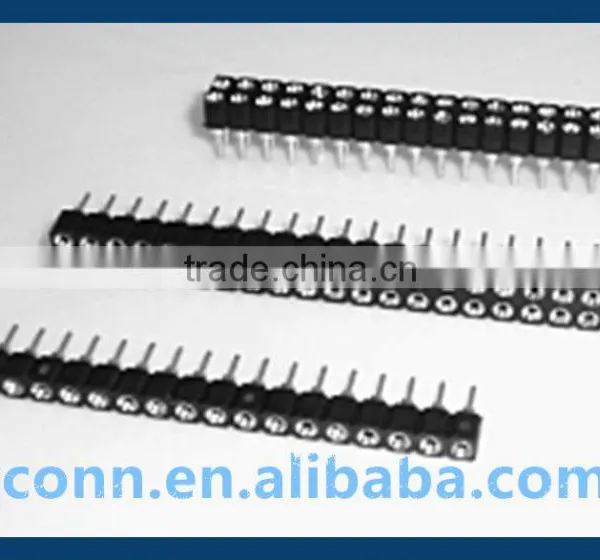

Pitch 2.54mm Solder Type SIP Socket Single/Double Row Machined Pin IC Sochet Header

Name: Pitch 2.54mm Solder Type SIP Socket Single/Double Row Machined Pin IC Sochet Header
Brand: LYCN
SKU: 122364557

Pitch 2.54mm Solder Type SIP Socket Single/Double Row Machined Pin IC Sochet Header thumbnail-1

Pitch 2.54mm Solder Type SIP Socket Single/Double Row Machined Pin IC Sochet Header photo-1

US$ 0.002 - 10 MOQ: 1000 Pieces

Key Specifications

Get Latest Price

Place of Origin:

China

Brand Name:

LYCN

Model Number:

120/121/122

Contact Supplier Request Quote Chat Now

Shenzhen Lycn Electronics Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen / Hongkong

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin China

Brand Name LYCN

Model Number 120/121/122

Type Other, Adapter, Soder Type

Application PCB

Gender Female

Pitch 2.54mm Solder type SIP Socket Single/Double Row Machined Pin IC Sochet Header

120/121/122 series pin header parameters:

Description	Gold plated straight 2.54 pitch single dual row SIP IC Socket
Pitch	2.54mm
Row	Single/Double row
Pin type	Straight/right angle/SMT
Insulator/plastic	Single,double
Insulator color	Black
Pin No.	02-80 pins avaliable

Contact	Brass
Plating(contact)	Nickel gold and tin plating
Current rating	2.0AMP
Contact resistance	10m ohn max
Insulation resistance	1000 ohn min
withstanding voltage	1000VAC/minute
Quality	ROHS, ISO9001:2008, ISO14001:2004

About pin headers:

Series1XX series;
Pitch: /1.27/1.778/2.0/2.54mm available;
No of contacts: 01-40 pins for single row,02-80 pins for double row;
Pin type: Straight/right angle/SMT;
Pin length: For the straight pin type, it can be customized as you required;
Contact plated: standard is gold flash plated,also can be customiezed as you required;
Insualtor material: generally is PBT and PA6T, PA9T;
Insulator plastic: can be single row, Dual row;
Application:solder type mounting;
Quality: ROHS, ISO9001:2008, ISO14001:2004;

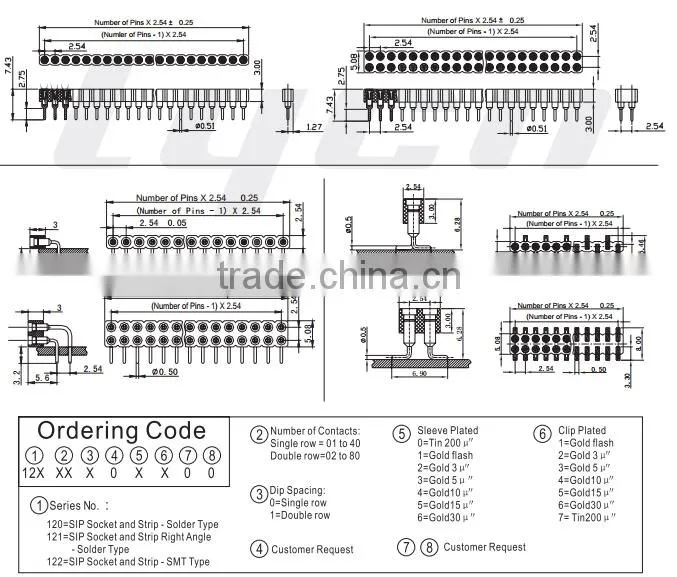

Technical drawing:

Packing and delivery:

1.This series pin headers' standard packing method are packed by plastic bags, box, carton;plastic tray; tape & reel; detailed packing is different according to the customer's requirements. ;

2.Pakage can be customized like logo,size,method,ect;

3.Shipping method can be Fedex,DHL,TNT,UPS,ect comercial international express for small order quantity;

4.Generaly the time is 7-15 working days after payment,but if have stock,we will delivery soon.
