low profile SIP Socket connector
RoHS Compliance,Good quality and competive price

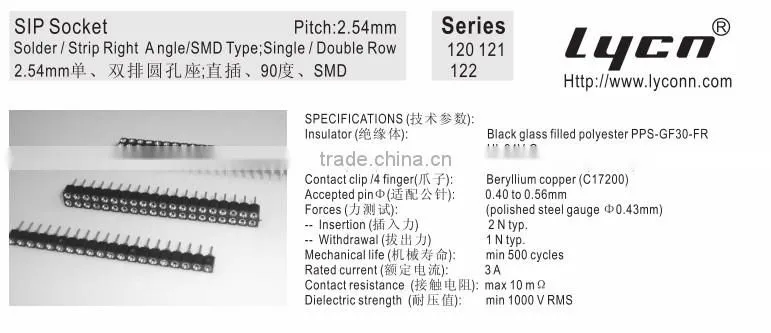

SPECIFICATATIONS :
Insulator: Black glass filled polyester PBT-GF30-FR UL 94V-O
Sleeve: Brass CuZn36Pb3 (C36000)
Contact clip /4 finger: Berylium copper (C17200)
Accepted pin: 0.38 to 0.64mm
Forces: (polished steel gauge 0.43mm)
--Insertion: 2 N typ
--Withdrawal: 1N typ
Mechanical life: min 500 cycles
Rated current: 3A
Contact resistaance: max 10 mΩ
Dielectric strength: min 1000 V RMS
1.Series No.:
111= IC Socket-Solder Type
112= IC Socket-SMT Type
2.Number of Contacts:
Double row =02 to 80 06/08/10/14/16/18/20/22/24/28/32/36/40/42/48/50/52
Special 4 rows: 50,52,64
3.Insulation type: Open frame ; Closed frame
4.PINLength:7.40mm;7.43mm;8.80mm;10.20mm;12.20mm;13.40mm;14.30mm;15.00mm;17.78mm;19.80mm;25.80mm
