Female Header Connector

Female Header Connector thumbnail-1
Female Header Connector thumbnail-2
Female Header Connector thumbnail-3
Female Header Connector photo-1
Female Header Connector photo-2

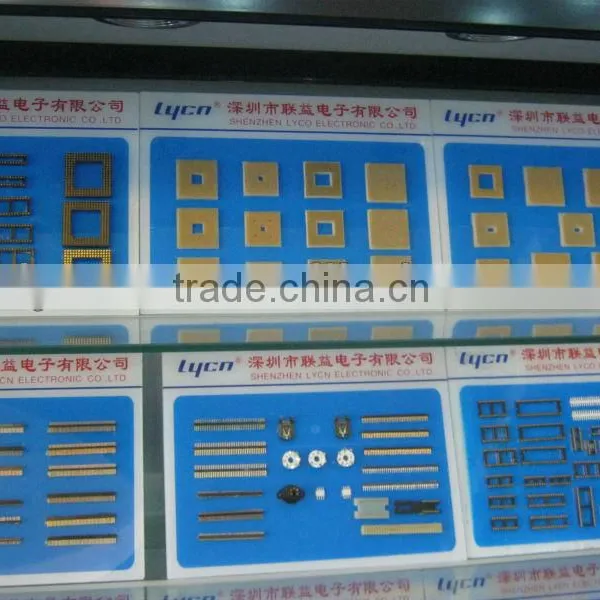

Female Header Connector photo-3
US$ 0.003 - 5 MOQ: 10000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
LYCN
Model Number:
connector
Contact Supplier Request Quote Chat Now
Shenzhen Lycn Electronics Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name LYCN
Model Number connector
Type Adapter
Application Other, PCB, PCB board
Gender Female



wide range of female header

Female header

Specifications:

Rated current:1.0AMP

Contact resistance:30mΩMax

Insulation resistance:500MΩMin

Withstand Voltage:200VAC/minute

Operation Temperature:-40°C∼105°C

Max Process Temp:230°C for 30∼60 secretary



Materials:

Contact material: copper alloy

Contact plating: Gold or Tin over 50 uNi

Insulator material: Polyester (UL94V-0)

Standard: LCP



Product index:

1.       Pitch  Series: 1.00/1.27/1.27*2.54/2.00*2.00/2.54*2.54mm

2.       Tail & Mounting Type:    W/P S.M.T. Type Base 2.00H

            Straight SMT Type

            W/P And Local Peg S.M.T. Type

            Straight DIP Type

            Right Angle Type

3.       Insulator Height: 2.0/2.2/3.8/3.4/4.3/4.4/4.6/5.0/5.2/5.7/7.1/7.2/8.1mm

4.       DIP Spacing:  Single/Dual row

5.       Number of contacts: range from 1 up to 112 pins

6.       Contact Plated:

          Gold flash/Gold 3u/ Gold 5u/ Gold 10u/ Gold 15u/ Gold 30u/Tin



7.       Material Type: PPS/PBT/LCP/Nylon-66/Nylon-6T/PA46

8.       color: black
