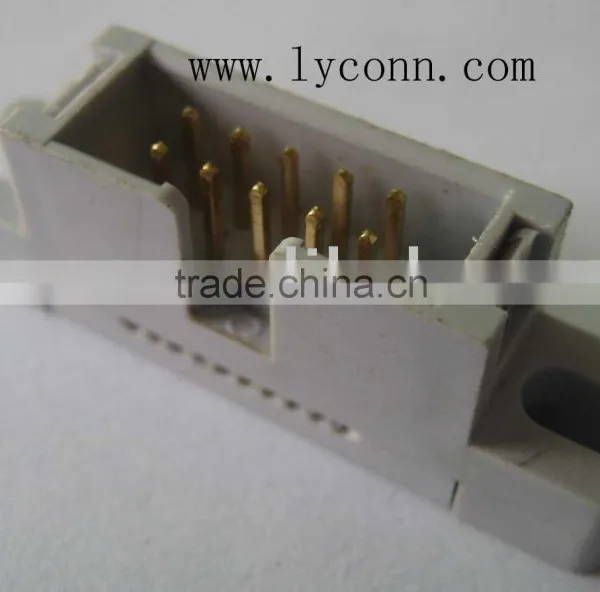

Pitch 2.0mm dip Box header
Specifications :
Current Rating 3.0 AMP
Contact Resistance : 20m Max
Insulation Resistance : 1000M Min
Withstand Voltage : 500VAC/minute
Operation Temperature : -40degree to +105degree
MATERIALS:
Contact Material : Brass
Contact Plating : Gold or Tin over 50 "Ni
Insulator Material : Polyester(UL94V-0) Standard: PBT

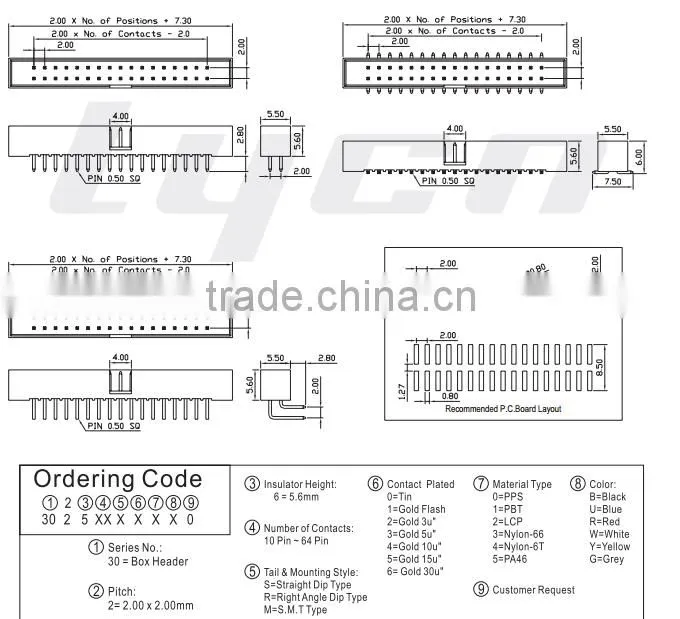

Technical drawing:
Packing and delivery:
1.This series box headers' standard packing method are packed by plastic bags, box, carton;detailed packing is different for each specifc part no. ;
2.Pakage can be customized like logo,size,method,ect;
3.Shipping method can be Fedex,DHL,TNT,UPS,ect comercial international express for small order quantity;
4.Generaly the time is 7-15 working days after payment,but if have stock,we will delivery soon.
