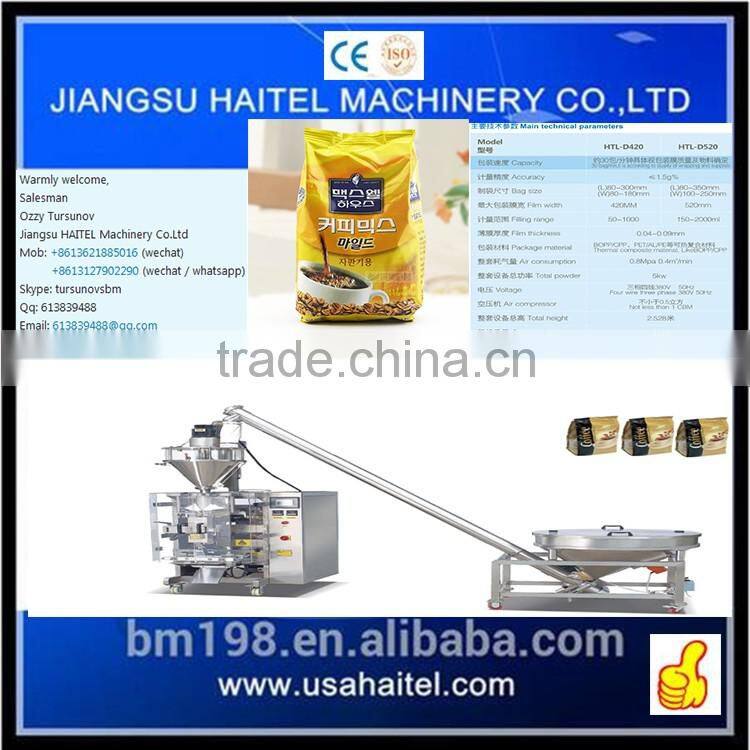

HTL-D420/520 Fully Automatic
Powder Packing Machinery
Characteristic
1. Film drawing down system controlled by servo motor.
2. Automatic film rectifying deviation function.
3. Various alarm system to reduce waste.
4. It can complete feeding, measuring, filling, sealing, date printing, charging (exhausting), counting, finished product delivery when it equips with feeding and measuring equipment.
5. The way of bag making: The machine can make pillow-type bag and standing-bevel bag, punch bag or according to customer’s requirements.
Main technical parameters
| Model | HTL-D520 |
| Packing speed | About 30-60 bags/min. It is according to quality of wrapping film and materials. |
| Accuracy | ≤1.5% |
| Bag size | (L) 80-350 mm; (W)100-250 mm |
| Maximum film width | 520 mm |
| Filling range | 150-2000 g |
| Film thickness | 0.04-0.09 mm |
| Packing material | Thermal composite materials, such as BOPP/CPP, PET/AL/PE |
| Air consumption | 0.8 MPa, 0.4 m³/min |
| Total power | 5 KW |
| Voltage (V) | Four wires, three phases, 380V, 50Hz. |
| Air compressor | Not less than 1 CBM |
| Total height | 2528 mm |
| Gross weight | 900 kg |
Application
It is suitable for packing of several of granule, powder, such as sugar, salt, coffee, etc.
Packaging samples:
Wooden box
Our company attends many fairs:

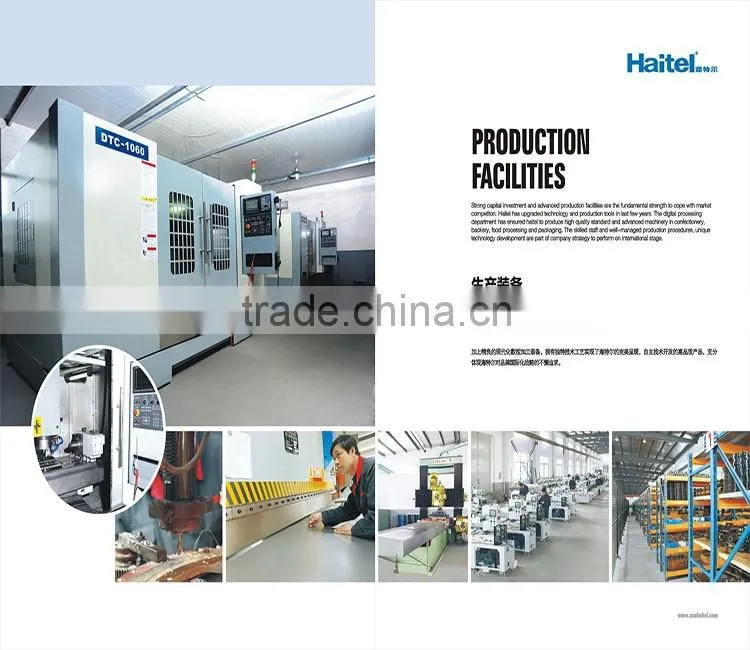

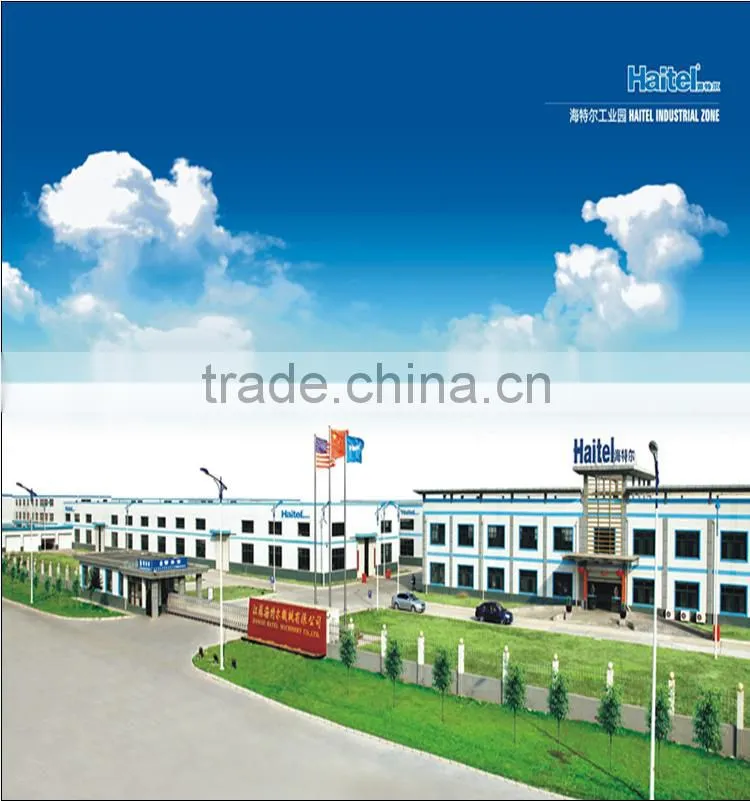

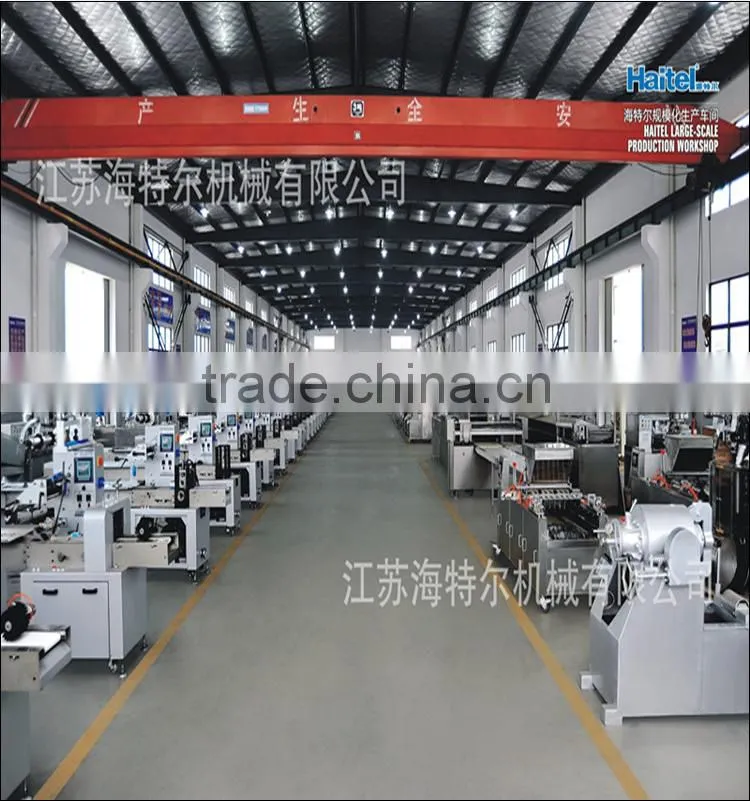

>>>Welcome to our factory!!!<<<
Haitel Machinery Co,. Ltd. is a professional manufacturer of automatic food processing and packing machinery for manufacturers making candy, chocolate, egg-rolls, cakes and other food. Specializing in confectionery processing equipment, our company has a professional team with strong techincal and R&D knowledge to develop advanced food equipments to cope with market changes.
Our important certificates:
Our products have been exported to over 80 countries all over the world:
