Home > Manufacturing & Processing Machinery > Machine Tools > Milling Machine > X6336 Universal Radial Milling Machine

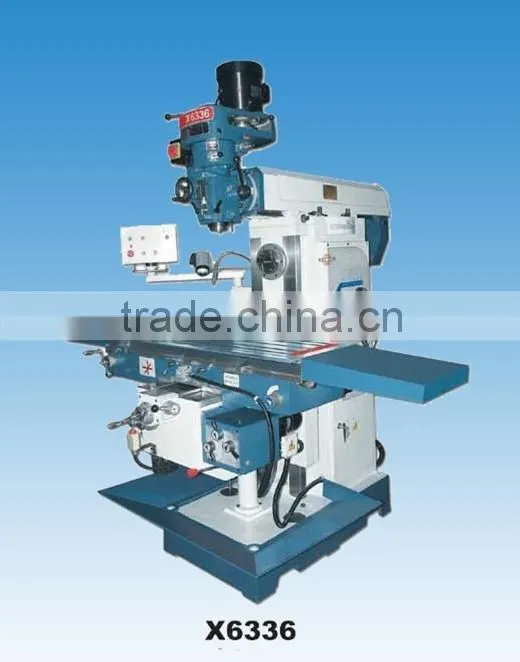

X6336 Universal Radial Milling Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
China
Brand Name:
WHITE EAGLE
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
X6332B Universal Radial Milling MachineNegotiableMOQ: 1 Set -
X6128 Horizontal and Vertical Milling MachineNegotiableMOQ: 1 Piece
-
X6128A Horizontal and Vertical Milling MachineNegotiableMOQ: 1 Piece
-
X6323B Universal Radial Milling MachineNegotiableMOQ: 1 Set
-
X6325A Universal Radial Milling MachineNegotiableMOQ: 1 Set
Condition
New
Place of Origin
China
Brand Name
WHITE EAGLE
Model Number
X6336
Type
Other, HORIZONTAL AND VERTICAL
CNC or Not
Normal
Voltage
as buyer's requirements
Power(W)
as buyer's requirements
Dimension(L*W*H)
2220x1790x2360mm
Weight
2700kgs
Certification
CE TUV ISO9001
Warranty
ONE YEAR
Specifications
Universal radial milling machine| Features: | ||
| 1:Rectangular table guideways with high stability; | ||
| 2:Hardened and ground table surface; | ||
| 3:Automatic feeds on X&Y axis, motorized lifting and falling of table onZ axis | ||
| 4: Headstock swivels ±45º | ||
| 5: TAIWAN high speed milling head | ||
| 6: Vertical milling spindle auto-feeding | ||
| Model | X6336 | |
| Spindle taper | mm | ISO40(vertical) ISO50( horizontal) |
| Distance from vertical spindle to worktable | mm | 135-485 |
| Distance from horizontal spindle to worktable | mm | 0-350 |
| Distance from horizontal spindle to arm | mm | 230 |
| Spindle speeds | mm | 78-6980(Vertical) 60-1800(horizontal) |
| Table size | mm | 1250x360 |
| Max.travel of Table | mm | 1000x315x350 |
| Main motor power | KW | 5.5(Vertical) 4(horizontal) |
| Arm travel | mm | 500 |
| Overall dimension | MM | 2220x1790x2360 |
| N.W./G.W. | kgs | 2500/2700 |
