Home > Manufacturing & Processing Machinery > Machine Tools > Milling Machine > X6132 / X6140 Universal Milling Machine

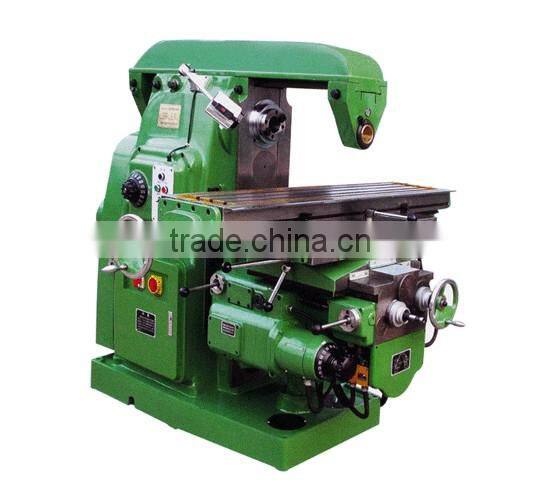

X6132 / X6140 Universal Milling Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
China
Brand Name:
White egale
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
X6336 Universal Radial Milling MachineNegotiableMOQ: 1 Set -
X6332B Universal Radial Milling MachineNegotiableMOQ: 1 Set
-
X6128 Horizontal and Vertical Milling MachineNegotiableMOQ: 1 Piece
-
X6128A Horizontal and Vertical Milling MachineNegotiableMOQ: 1 Piece
-
X6323B Universal Radial Milling MachineNegotiableMOQ: 1 Set
Condition
New
Place of Origin
China
Brand Name
White egale
Model Number
X6140
Type
Universal
CNC or Not
Normal
Voltage
As customer's requirement
Power(W)
7.5KW/11KW
Dimension(L*W*H)
2294* 1770* 1904/2556* 2159* 1770
Weight
2800/3850KGS
Certification
ISO9001/TUV
Warranty
12 Months
Specifications
Universal knee-type milling machine.Standard accessories
Horizontal milling cutter arbor subassembly
Milling chuck
| SPECIFICATION | UNIT | X6132 | X6140 |
| TABLE SIZE | MM | 1320× 320 | 1600× 400 |
| NO. /WIDTH/DIS. OF T-SLOT | MM | 3-18-70 | 3-18-90 |
| MAX. LOAD OF TABLE | KG | 500 | 800 |
| SPINDLE TAPER | ISO50 | ISO50 | |
| SPINDLE SPEED RANGE | R/MIN | 30-1500 | 30-1500 |
| SPINDLE SPEED STEP | STEPS | 18 | 18 |
| TABLE TRAVEL(X, Y, Z) | MM | 700/255/320(MANUAL) 680/244/300(AUTO) |
900/315/380(MANUAL) 880/300/360(AUTO) |
| CUTTING FEED SPEED | MM/MIN | X: 23.5-1180; Y: 15-786; Z: 8-394 | X, Y: 23.5-1180; Z: 8-394 |
| RAPID FEED SPEED(X, Y, Z) | MM/MIN | 2300/1533/770 | 2300/2300/770 |
| DISTANCE BETWEEN SPINDLE AXIS AND TABLE SURFACE | MM | 30-350 | 30-410 |
| SPINDLE MOTOR POWER | KW | 7.5 | 11 |
| OVERALL DIMENSION(L× W× H) | MM | 2294× 1770× 1904 | 2556× 2159× 1770 |
| MACHINE WEIGHT | KG | 2800 | 3850 |
