Help CenterIndustrial Stainless Steel Sheath T Type mi Thermocouple Cable
Related Products
-
Industrial Stainless Steel N Type 0.5mm Simplex 2-core MI Thermocouple CableUS$ 3.14 - 3.55MOQ: 600 Meters -
Industrail Stainless Steel Sheath MI Heat Tracing CableUS$ 1.64 - 1.76MOQ: 100 Meters
-
Industrial N Type Simplex 2-core 0.5mm Diameter Stainless Steel Sheath MI Thermocouple CableUS$ 3.14 - 3.55MOQ: 600 Meters
-
Stainless Steel 316L Sheath 4.5mm Duplex K Type Thermocouple CableUS$ 2.12 - 2.39MOQ: 500 Meters
-
Industrial J Type 0.5mm Diameter Simplex 2-core MI Thermocouple CableUS$ 6.35 - 6.43MOQ: 50 Meters

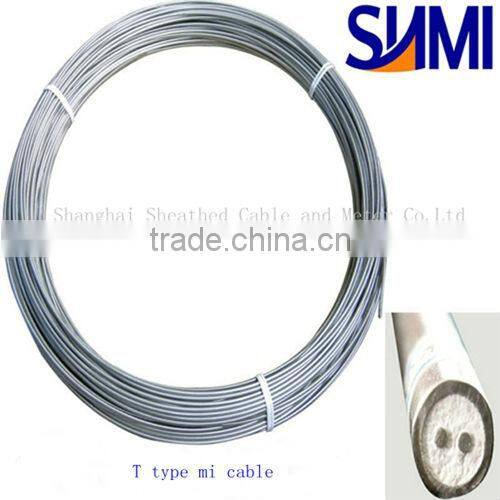

T mi cable
Specification:
1.Model:KT-A-4.0;
2.Graduation Mark:T;
3.Wire number:Simplex type( 2 core);
4.Material of the outer protection tube:A-304/321(0Cr18Ni9) ;
Other types of outer protection tube are available:
[I].A-304 or321 [II].B-GH3030 [III].C-GH3039 [ IV].IN-INCONEL600 [V].P-310S [VI]. HL-316L
5.Diameter of outer tube:4.0mm;(diameter from 0.5mm to 8.0mm available)
6.Thickness of outer tube:0.56mm;
7.Inner core element:Cu/CuNi;
8.Diameter of core wire:0.64-0.72mm
9.Limited length for piece:130m;
10. Special requirements can be customized .
Package:50-90 meters/coil,3-4 coils/carton box.
Thermocouple temperature tolerance:
1.Class I:
Temperature range:-40°C to 150°C,the tolerance is ±0.5°C;
Temperature range:125°C to 350°C,the tolerance is± 0.004•|t|;
2.Class II:
Temperature range:-40°C to 150°C,the tolerance is ±1.0°C;
Temperature range:133°C to 350°C,the tolerance is± 0.0075•|t|;
3.Class III:
Temperature range:-67°C to 40°C,the tolerance is ±2.5°C;
Temperature range:-120°C to -67°C,the tolerance is± 0.015•|t|;
Other details:
Sheathed thermocouple cable materials are extremely important for the manufacture of sheath thermocouple. They are firm assemblies which are being manufactured by a combined processing of the coupling wire or pure nickel wire or filigrees, organic mineral insulant, metal sleeve. It is widely applicable for the industrial departments and sic-tech fields in all trades and professions.Our sheathed cable company is one of the largest manufacturers in Shanghai, China. It may furnish various models & specifications materials.
Features:
Small external diameter, quick heat response, may be bent, long lifetime, fine air-tightness, wide thermometric scope, high voltage resistant, anti-vibration, narrow mounting pipeline, may be used under bending conditions.
Certificates:ISO 9001,explosive-proof products qualifications
For more information, please visit our website or contact us directly.
