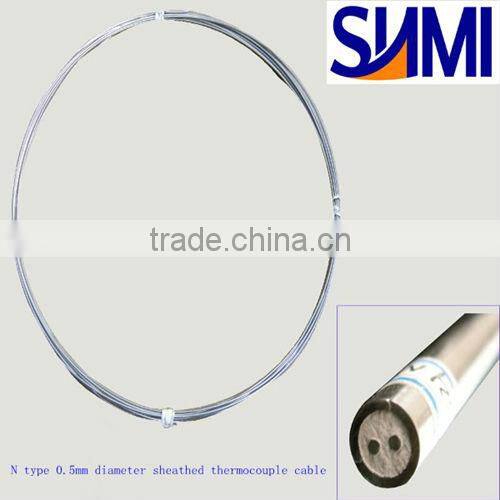

N type 0.5mm diameter sheathed thermocouple cable
Specification:
1.Model:KN-A-0.5;
2.Graduation Mark:N;
3.Core number:Simplex type( 2 cores);
4.Material of the outer protection tube:A-304/321(0Cr18Ni9) ;
Other types of outer protection tube are available:
[I].A-304 or321 [II].B-GH3030 [III].C-GH3039 [ IV].IN-INCONEL600 [V].P-310S [V]. HL-316L
5.Diameter of outer tube:0.5mm; ( diameter from 0.5mm to 12.7mm available )
6.Thickness of outer tube:0.07mm;
7.Inner core element: Nicrosil–Nisil ;
8.Diameter of core wire:0.10mm
9.Limited length for piece:100m;
10. Special requirements can be customized .
Package:180-250 meters/coil,4 coils/carton box.
Thermocouple temperature tolerance:
1.Class I:
Temperature range:-40°C to 375°C,the tolerance is ±1.5°C;
Temperature range:375°C to 1000°C,the tolerance is± 0.004•|t|;
2.Class II:
Temperature range:-40°C to 333°C,the tolerance is ±2.5°C;
Temperature range:333°C to 1200°C,the tolerance is± 0.0075•|t|;
Other details:
Sheathed thermocouple cable materials are extremely important for the manufacture of sheath thermocouple. They are firm assemblies which are being manufactured by a combined processing of the coupling wire or pure nickel wire or filigrees, organic mineral insulant, metal sleeve. It is widely applicable for the industrial departments and sic-tech fields in all trades and professions.Our sheathed cable company is one of the largest manufacturers in Shanghai, China. It may furnish various models & specifications materials.
Features:
Small external diameter, quick heat response, may be bent, long lifetime, fine air-tightness, wide thermometric scope, high voltage resistant, anti-vibration, narrow mounting pipeline, may be used under bending conditions.
Certificates:ISO 9001,explosive-proof products qualifications
For more information, please visit our website or contact us directly.
