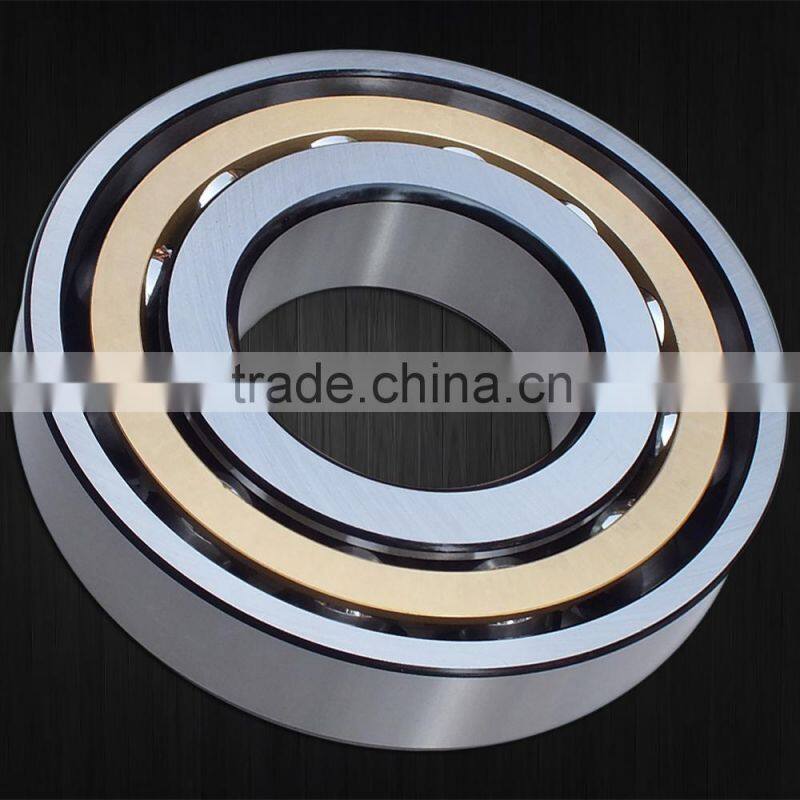

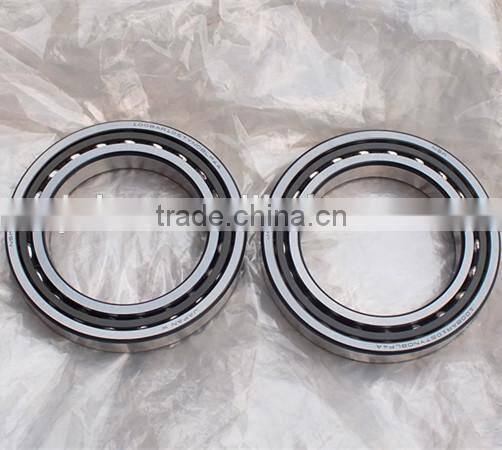

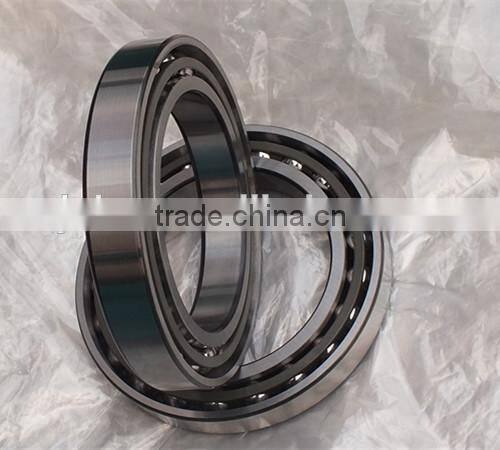

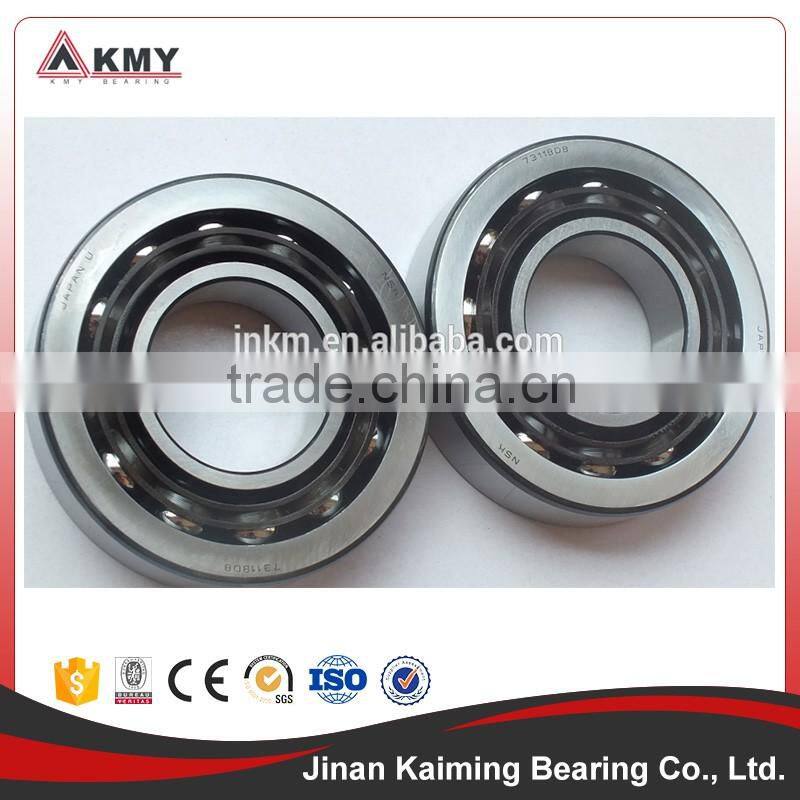

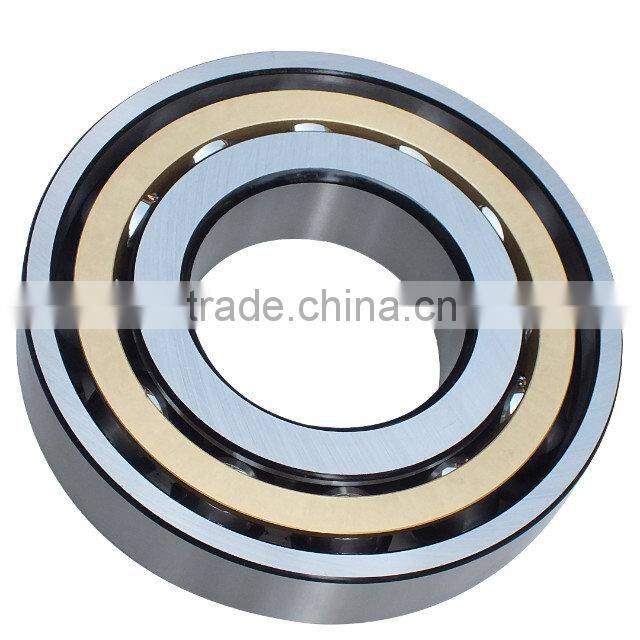

Japan NSK bearings angular contact ball bearing 7914C
Angular contact ball bearings features:
1) Load capacities are higher than deep groove ball bearings of same dimensions
2) Used for bearing radial-axial combined loads or pure thrust loads
3) Low operating friction and high limiting speed
Angular contact bearing applications :
electric motors, automotive applications, home appliances, industrial equipment.
Angular Contact Ball Bearings are classified into three sub-categories:
1. Single Row
They have three different contact angle classifications:
Contact Angle Symbol |
Contact Angle |
A |
30 degrees |
B |
40 degrees |
C |
15 degrees |
AC |
25 degrees |
2. Double Row
They have two different contact angle classifications:
Contact Angle Symbol |
Contact Angle |
None |
20 degrees |
A |
30 degrees |
3. Combination Type
Generally, Single Row Angular Contact Ball Bearings are used in combination of two or more units. Three different combinations are available:
Configuration |
Load Capacity |
Back-to-back |
Bi-directional axial |
Face-to-face |
Bi-directional axial |
Tandem |
Uni-directional axial |
We can offer the following variants:
- Single Row 70xx, 72xx and 73xx series.
- With A, B, C and AC contact angle.
- Double Row types with ball slot (32xx and 33xx Series) and without ball slot (52xx and 53xx series) design.
- Close types with rubber seal and shield design.
- Standard precision grade (ISO Grade P0 – ABEC1) and higher precision grade (ISO Grade P6 – ABEC3) used in combination
- Pressed steel, polyamide and brass cage.
angular contact ball bearings
Main category of bearings:
(1)Deep Groove Ball Bearing 6000,6200,6300,6900 series(steel cage, brass cage ,nylon cage)
(2)Spherical Roller Bearing 22200 22300 23000 24000 series(steel cage CC,brass cage,CA and MB)
(3)Pillow Block Bearing UC UCP UCT UCF UCFL SBPFL series
(4)Taper Roller Bearing(single row, double row and four row )
(5)Cylindrical Roller Bearing( steel cage, brass cage ,nylon cage)
(6)Thrust Ball Bearing(steel cage, brass cage)
(7)Thrust Roller Bearing(steel cage, brass cage)
