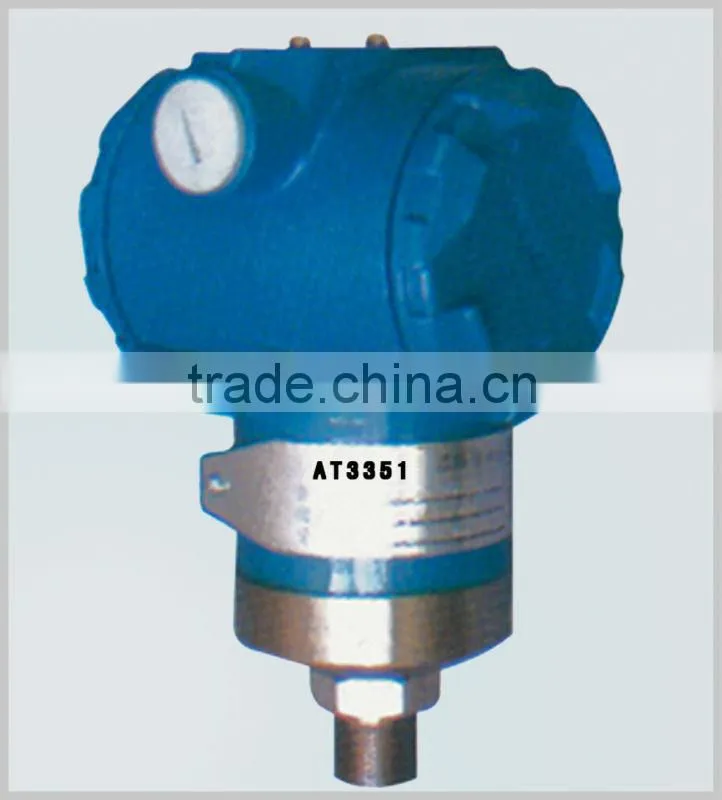

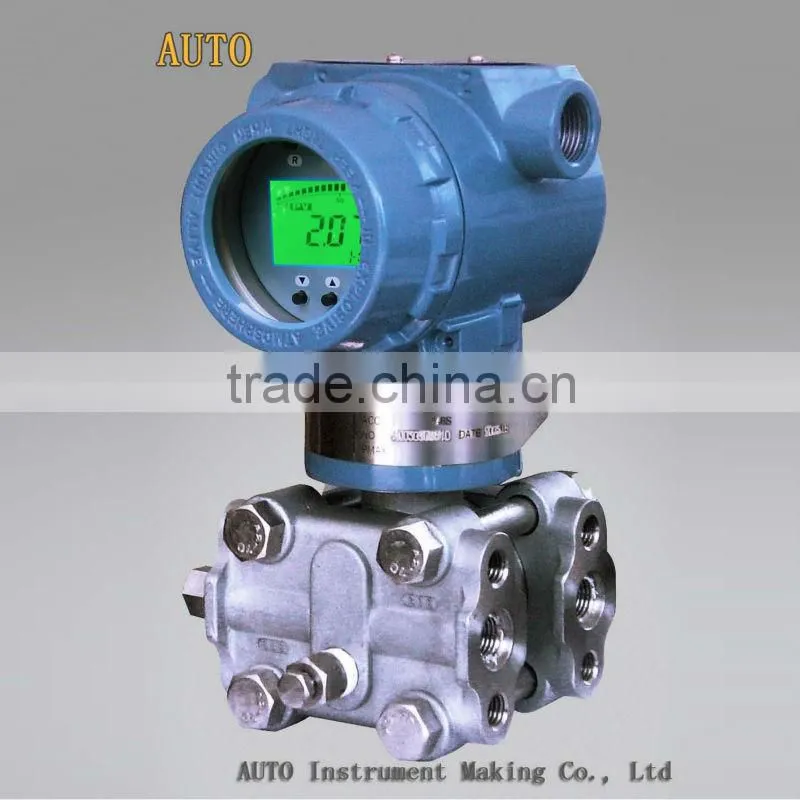

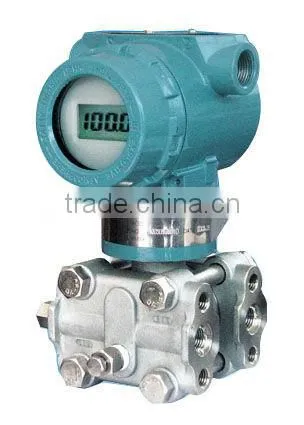

4 20ma Liquid Level Transmitter Pressure Sensor Gas Pressure Sensor With Low Price

4 20ma Liquid Level Transmitter Pressure Sensor Gas Pressure Sensor With Low Price thumbnail-1
4 20ma Liquid Level Transmitter Pressure Sensor Gas Pressure Sensor With Low Price photo-1
US$ 185 - 500 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
AUTO
Model Number:
AT3051
Contact Supplier Request Quote Chat Now
Yantai AUTO Instrument Precision Casting Co., Ltd.
Gold Verified Supplier
6Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Yantai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name AUTO
Model Number AT3051

4 20ma liquid level transmitter pressure sensor gas pressure sensor with low price4 20ma liquid level transmitter pressure sensor gas pressure sensor with low price4 20ma liquid level transmitter pressure sensor gas pressure sensor with low price

Specifications:

Process Fluid:

Display:

Liquid, Gas, Vapor

4 Digits programmable & 0-100% Bargraph

Application:

Display Unit:

Differential Pressure, Gauge Pressure,

Standard 22 engineering unit

Absolute Pressure

4 Digits programmable for special unit

Measuring Range:

Keyboard:

0 - 0.125 kPa ~ 0 - 1.5 kPa ( Minimum )

3 keys from internal for Programming

0 - 4.0 MPa ~ 0 - 25.0 MPa ( Maximum )

and output setting

Turn Down Ratio:

Current Output:

1 : 100

4 - 20 mA 2 wires Hart Protocol

Accuracy:



+/- 0.075% of span

Rohm=(Vdc-9)*50

Stability:

Power Supply:

+/-0.15% of URL for 2 years

9 - 36 V DC

Working Temperature:

Damping Adjustment:

-25 to +95oC

0 - 32 Second

Max. Pressure:

Response Time:

40 MPa

200 ms

Material:

Mounting:

Flange/Adapters

Bracket on 2" Pipe

Stainless Steel 304 / Stainless Steel 316

Humidity Limits:

Drains/Vents

0 to 100% Relative Humidity

Stainless Steel 304 / Stainless Steel 316

Turn on Time:

Diaphragms

2 Seconds with minimum damping

Stainless Steel 316L / Hastelloy B /

Zero calibration:

Hastelloy C / Monel / Tantalum

Automatic zero calibration by press button

Wetted O-Rings

Electrical Connections:

Buna N / Viton / PTFE

1/4" NPT     ( M20 Conduit Threads )

Bolts & Nuts

Temperature Effect:

Carbon Steel / Stainless Steel 316

+/-0.18% of span per 20 oC

Mounting Bracket

Vibration Effect:

Carbon steel / Stainless Steel 304 / 316

+/-0.05% of URL per g to 200 Hz in any

Name / Tag Plate

axis

Stainless Steel 304 / Stainless Steel 316

EMI/RFI Effect:

Converter Housing

Follow SAMA PMC 33.1 from 20 to 1000

Low copper cast aluminum alloy with

MHz and for field strengths up to 30 V/m

polyurethane, light blue paint

Process connections:

Fill Fluid

1/4 - 18 NPT

Silicone / Fluorine Oil

1/2 - 14 NPT( with Adapter )

Enclosure:

Ambient Temperature:

IP65

-25 to +80 oC

Intrinsically Safe: ia Ⅱ C T6

Dimensions:

Explosion proof: d ⅡB T5

102 mm ( W ) * 188 mm ( H ) * 130 mm (D)



Weight:



5.5 kg




Company Information
Working place:
4 20ma liquid level transmitter pressure sensor gas pressure sensor with low price
Reated product:

Cetification:



4 20ma liquid level transmitter pressure sensor gas pressure sensor with low price4 20ma liquid level transmitter pressure sensor gas pressure sensor with low price

Our Services

Guarantee and after-sale service:

18 months guarantee for whole machine

24 hours technical support by e-mail.

4 20ma liquid level transmitter pressure sensor gas pressure sensor with low price
